Autonomous Towing Cart Industrial Transfer Robot

Product Overview

WD-D600T heavy-duty autonomous towing cart industrial transfer robot is the top-of-range tugger AMR in our traction robot series, designed exclusively for ultra-heavy turnover cages, mold racks and multi-trolley batch circulation.

Different from medium-load WD-D300T tugger robot, WD-D600T upgrades thickened high-load chassis and hydraulic mechanical lifting traction arm, which can automatically lift and lock heavy trolley frames to avoid disconnection during high-load towing. Dual-mode design: autonomous laser navigation for fixed long-distance production line delivery; manual push mode for flexible temporary handling without separate manual trolleys. It widely matches all standard heavy storage containers, material shelves, multi-section carriages with customizable towing lengths.

Marker-free Laser SLAM navigation without magnetic strips or ground QR codes, zero factory ground reconstruction cost. Equipped with multi-angle visual sensors, three-color warning light, emergency stop button and full-range anti-collision detection, support autonomous elevator, rolling shutter and security gate passing, realize 24/7 full-process unmanned heavy tugger train transportation.

Core Product Advantages

1.600kg Ultra Heavy Rated Traction Capacity

Reinforced integrated chassis + mechanical lifting traction arm, maximum traction load up to 600kg, stable towing of multiple connected heavy metal cages, mold racks and large turnover containers without frame deformation or hook shedding.

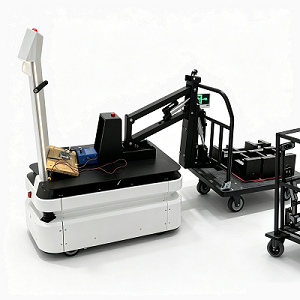

2.Mechanical Lifting Lock Traction Mechanism

Self-developed lifting traction arm can automatically jack up trolley bottom frame for firm locking, effectively solve the problem of trolley slipping and separation during heavy-load operation, higher safety than ordinary hook traction.

3.Medium-wide Aisle Compact Layout

Overall dimension 950×650×1314mm, minimum safe passing aisle width 80cm, adapt medium-wide production lines of auto, mold and heavy machinery factories.

Parameter
