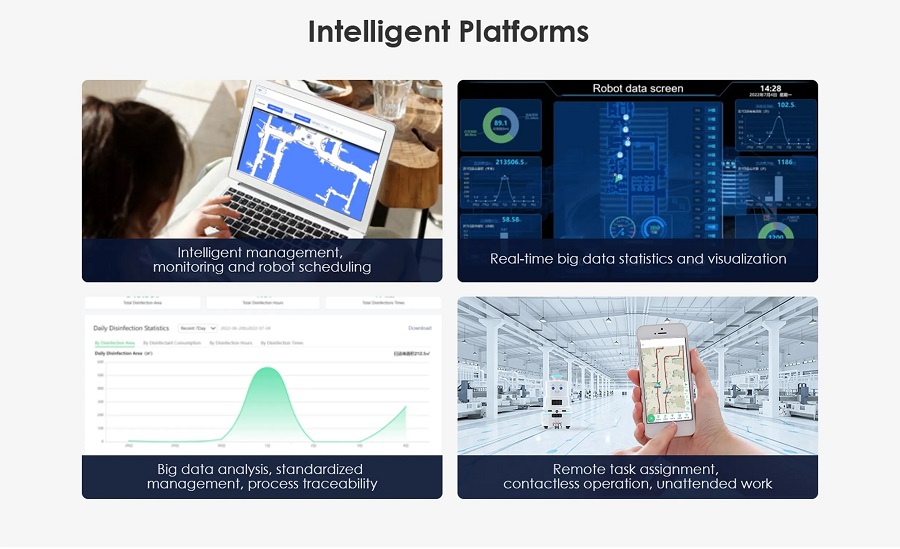

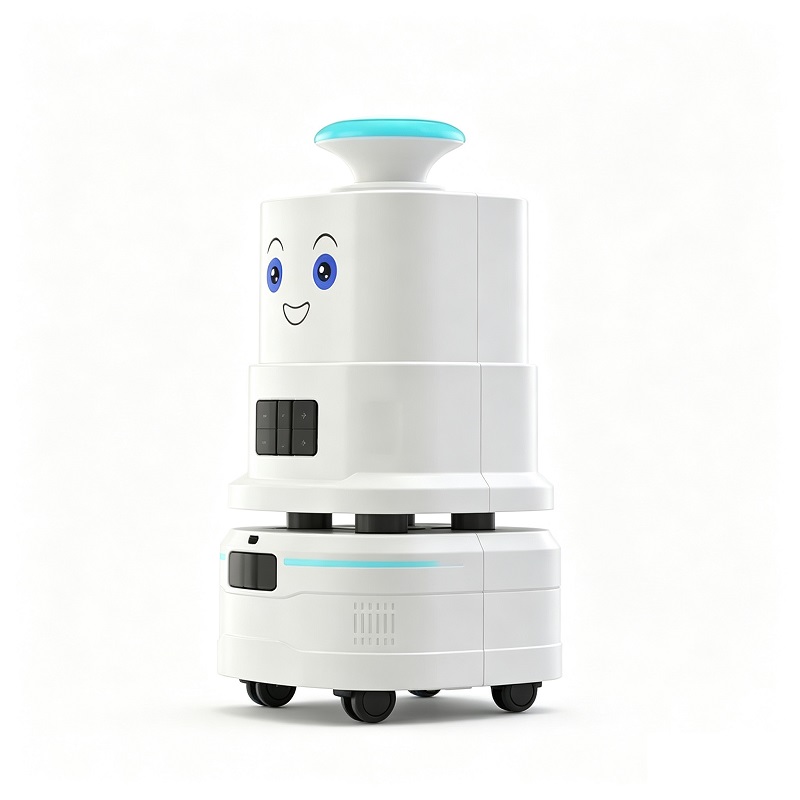

The WD-X1 Mini Autonomous Disinfection Robot is a compact atomization sanitizing AMR tailored for narrow-space indoor disinfection. Built with LiDAR+RGBD+IMU multi-sensor fusion SLAM navigation, it supports marker-free rapid mapping and intelligent full-blind-zone obstacle avoidance. Equipped with a 13L large-capacity disinfectant tank, it delivers 2m wide uniform dry fog coverage and achieves a sterilization rate over 99.99% against bacteria, viruses and fungi. The fully automatic unattended workflow covers remote mapping → timed task scheduling → autonomous spraying → auto charging on low battery & auto power-off on low liquid. Cloud intelligent platform enables multi-terminal remote monitoring, big data traceable disinfection records and multi-robot collaborative scheduling, with IoT linkage compatible with elevators, automatic doors and roller shutters. Ultra-mini 420mm diameter design only requires 600mm minimum aisle width, perfectly matching schools, clinics, offices, hotels, nursing homes and small manufacturing workshops for off-peak unmanned full-space sterilization, cutting manual disinfection labor and lowering cross-infection risks.
1.Disinfection System Customization: Upgrade high-flow atomization nozzle for large space, UV dual disinfection module, liquid level real-time early warning sensor, constant concentration atomization control.
2.Hardware Power Customization: Extended large-capacity battery for 6h continuous working, low-temperature resistant battery for cold storage disinfection, dust-proof & oil mist resistant whole machine for factory workshops.
3.Software Platform Customization: Multi-language cloud management background, custom timed disinfection cycle logic, exclusive disinfection data export report, customized elevator linkage program for different brand elevators.
4.Navigation & Sensor Upgrade: Anti-reflection RGBD camera for bright glass space, dust-proof enhanced LiDAR for construction and factory environments.
5.Appearance & Function Customization: Custom body shell color and enterprise LOGO printing, mute wheel modification for ultra-quiet ward scene, adjustable atomization concentration gear.

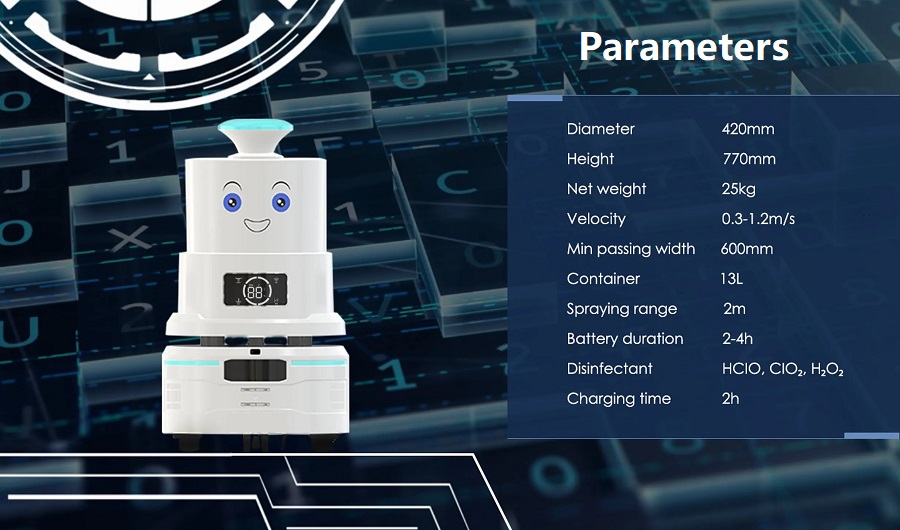

Q1: What is the size and minimum aisle passing width of WD-X1 mini disinfection robot?
A1: Diameter 420mm, height 770mm; only 600mm minimum passage width, very suitable for narrow classroom and ward corridors.
Q2: What disinfectants can this atomization disinfection robot support?
A2: Compatible with hypochlorous acid (HClO), chlorine dioxide (ClO₂), hydrogen peroxide (H₂O₂) three mainstream environmental disinfection liquids.

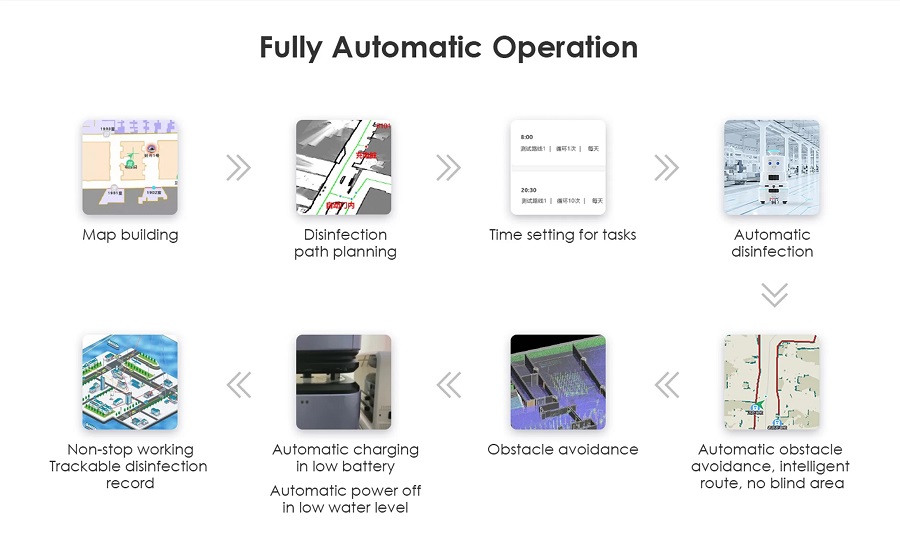

Q3: Does WD-X1 support fully automatic unattended operation?
A3: Yes, it supports timed cycle disinfection tasks, automatically returns to charge when battery is low, and automatically shuts down to protect the pump when disinfectant liquid is insufficient, the whole process does not require manual duty.

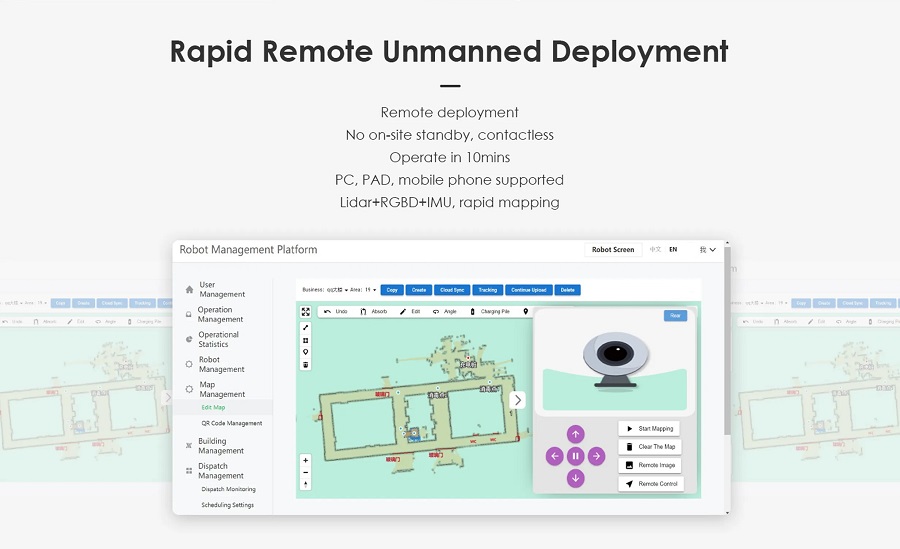

Q4: Is marker-free mapping supported? Can it be operated remotely by mobile phone?
A4: Marker-free LiDAR+RGBD SLAM mapping, support mobile APP, Pad and PC three-terminal remote mapping, task editing and real-time equipment monitoring.
Q5: Can multiple WD-X1 robots work in the same venue at the same time?
A5: Supported, the cloud scheduling platform realizes multi-robot unified management, automatic collision avoidance and balanced task distribution without mutual interference.
