Ultrasonic Atomization Disinfection Robot

Core Selling Points

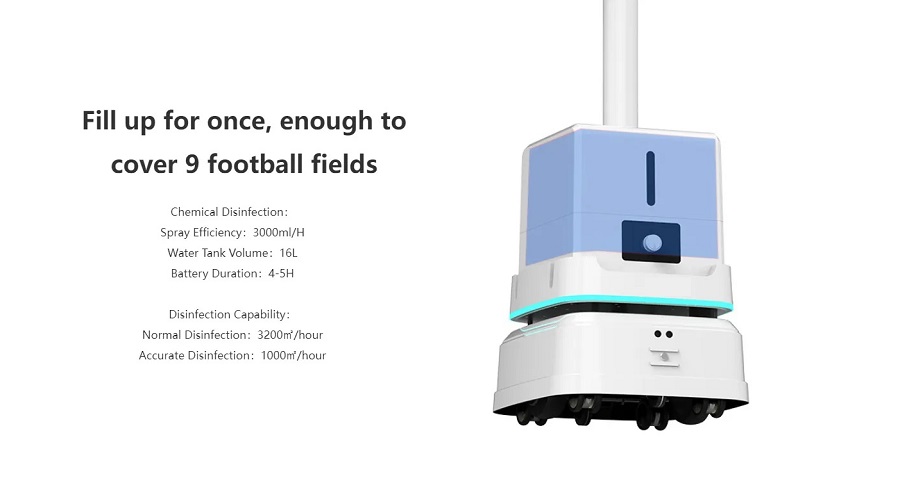

1. 16L Super Large Tank & 4m Ultra-wide Ultrasonic Dry Mist Atomization

16L oversized disinfectant container greatly reduces refilling frequency; 4 built-in atomizing nozzles output 3000ml/h high flow rate, forming 6μm ultra-fine dry mist that evenly floats and adheres to air, ground and surface objects. Effective spray coverage reaches 4 meters, single hour disinfection area up to 3200 square meters, one tank liquid supports continuous disinfection of large venues such as airports and factories. Compatible with hypochlorous acid, hydrogen peroxide and chlorine dioxide disinfectants to meet multi-industry hygiene standards.

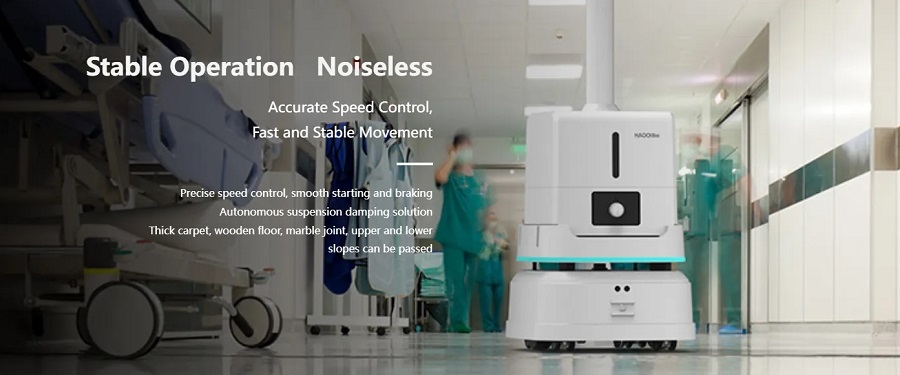

2. Autonomous Suspension Shock-absorbing Chassis, Stable & Noiseless Operation

Exclusive independent suspension damping design realizes smooth acceleration and braking without jitter. The chassis can stably pass thick carpets, uneven marble joints, ground cables and 5° gentle slopes, solving the problem of liquid splashing caused by bumpy driving of ordinary disinfection robots. Optimized silent drive structure controls operating noise below 50dB, suitable for quiet scenes including hospital wards, office rest areas and hotel guest floors without disturbing people.

3. Large Body Narrow Aisle Passable Design

Dimension 540*490mm compact large-capacity integrated body, minimum passing width only 700mm. It can freely shuttle in hospital ward corridors, factory production line aisles and shopping mall narrow passages, balancing large disinfection efficiency and flexible space adaptability, perfectly matching dense layout large commercial venues.

Safety & Operation Precautions

1. Disinfectant Liquid Requirements

Only use compatible disinfectants: hypochlorous acid (HClO), hydrogen peroxide (H₂O₂), chlorine dioxide (ClO₂). Do not mix different types of disinfectant, strong acid, strong alkali or corrosive liquid, which will damage the atomization module and tank.

Do not fill liquid over the MAX scale line of the 16L tank to avoid overflow during climbing or turning.

2. Working Environment & Personnel Safety

Evacuate people, pets and sensitive plants from the disinfection area before starting automatic fogging. Do not stay in the space during atomization.

The robot works at ≤50dB low noise, but mist may irritate respiratory tracts; keep ventilation after disinfection for 30–60 mins before re-entering the room.

3. Chassis & Driving Operation

The robot can surmount 1.5cm obstacles and climb max 5° slopes. Do not drive up steeper slopes, stairs or uneven pits to prevent tipping over.

Minimum passing aisle width ≥700mm. Clear loose wires, scattered cartons and debris on the route before disinfection to avoid wheel jamming.

4. Battery & Charging Rules

Use original matching charging pile only; forbidden to use mismatched voltage chargers to avoid battery swelling and fire risk.

Do not charge the robot outdoors in rain, snow or high humidity environment to prevent short circuit.

5. Daily Maintenance & Storage

After daily use, wipe the tank, nozzles and body shell with clean soft cloth; regularly unclog 4 atomizing nozzles to guarantee uniform fog output.

Keep LiDAR and depth camera lenses clean; do not scratch or cover the sensor surface, otherwise navigation and obstacle avoidance will fail.

FAQ

Q: What ground conditions can the suspension shock-absorbing chassis adapt to?

A: It can stably pass thick carpets, uneven marble joints, ground cables and maximum 5° slopes, no liquid splashing during driving, running noise ≤50dB.

Q: What navigation and obstacle avoidance configuration does this robot use?

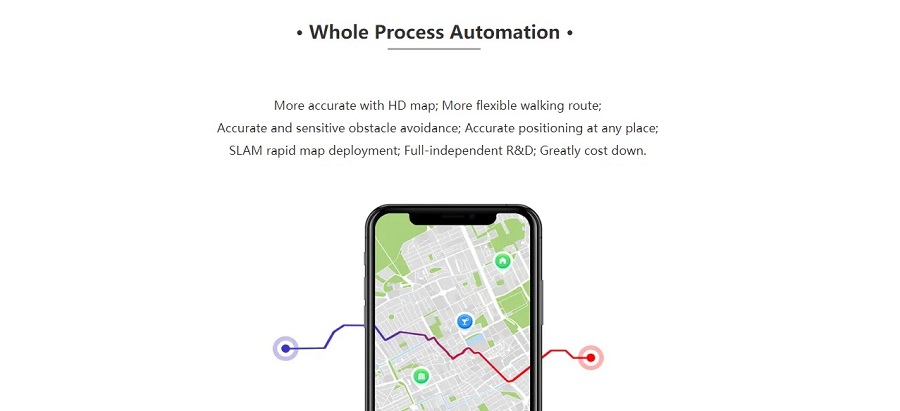

A: Self-developed SLAM HD mapping navigation, multi-sensor fusion obstacle avoidance, can identify 1.5cm ground obstacles, positioning accuracy ±5cm, no disinfection blind zones.

Q: Does WD-X2 support fully automatic unattended operation without staff duty?

A: Yes, it supports customized timed cyclic disinfection tasks, automatically returns to charge when battery is low, and cuts off the atomization pump to protect the machine when liquid is insufficient, the whole process does not require manual supervision.

Q: Can multiple WD-X2 robots work simultaneously in one venue?

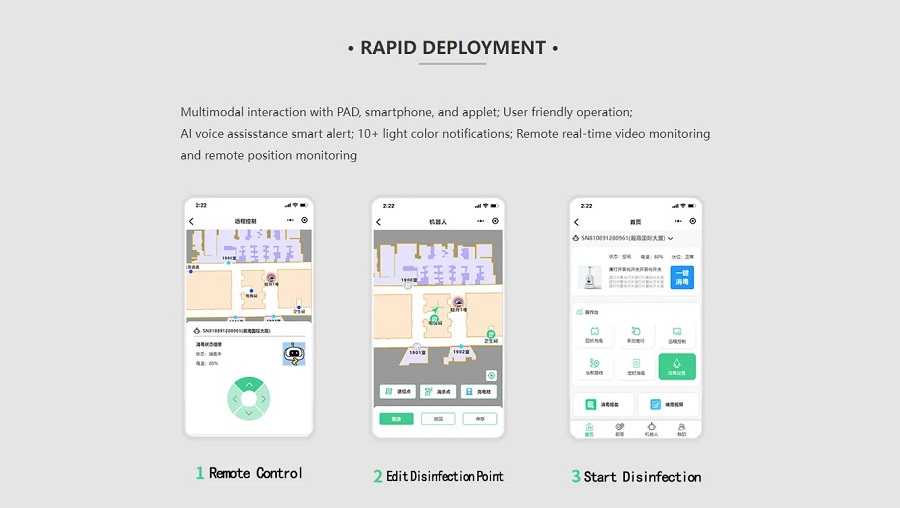

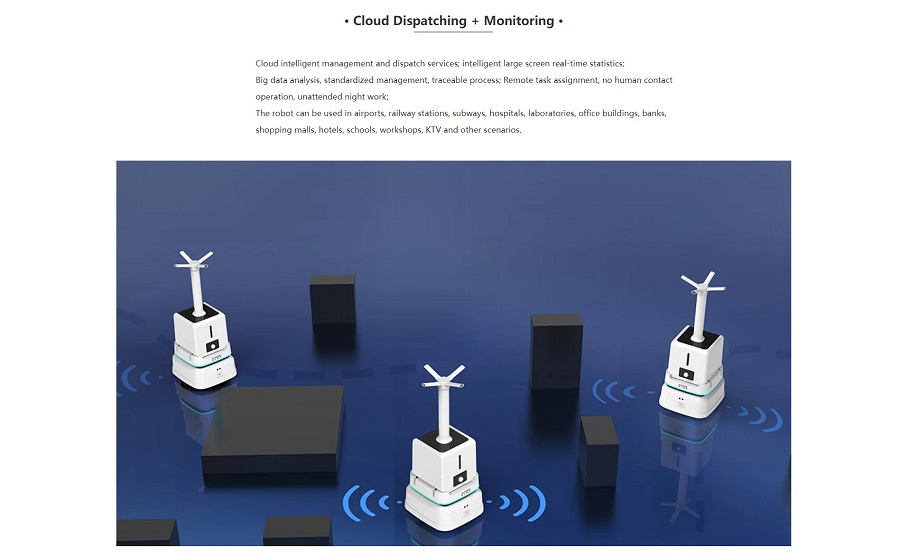

A: The cloud intelligent scheduling platform supports unified management of multiple robots, automatic collision avoidance and balanced task distribution without mutual interference.

Q: Can the robot connect with elevators and automatic doors to realize cross-floor disinfection?

A: Built-in 4G/WiFi IoT communication module, compatible with most elevator control panels and automatic induction doors to complete automatic cross-floor disinfection.
