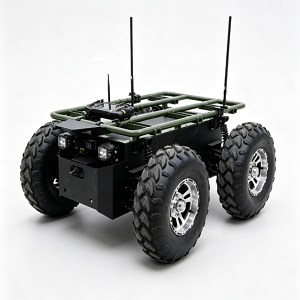

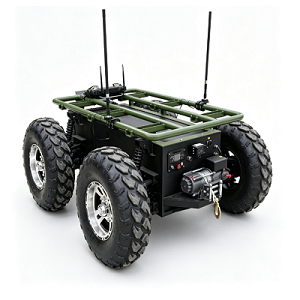

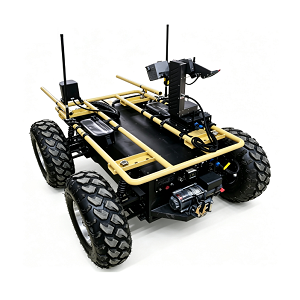

WD-W2M Pro agricultural wheeled chassis is a high-load four-wheel drive differential unmanned mobile platform specially optimized for agricultural field operations, also compatible with industrial inspection, geological exploration and laboratory research scenarios.
This agricultural wheeled chassis is equipped with 4×2000W brushless DC drive motors, each matched with high-precision encoder, and supporting drivers reserve complete multi-protocol communication interfaces, convenient for remote control and autonomous navigation secondary development. The whole vehicle power system is highly integrated inside the industrial shell, standard equipped with 48V lithium power battery with built-in BMS overcharge/over-discharge/short-circuit protection system, and extended 48V60Ah battery is optional for longer continuous working hours in wide farmland.

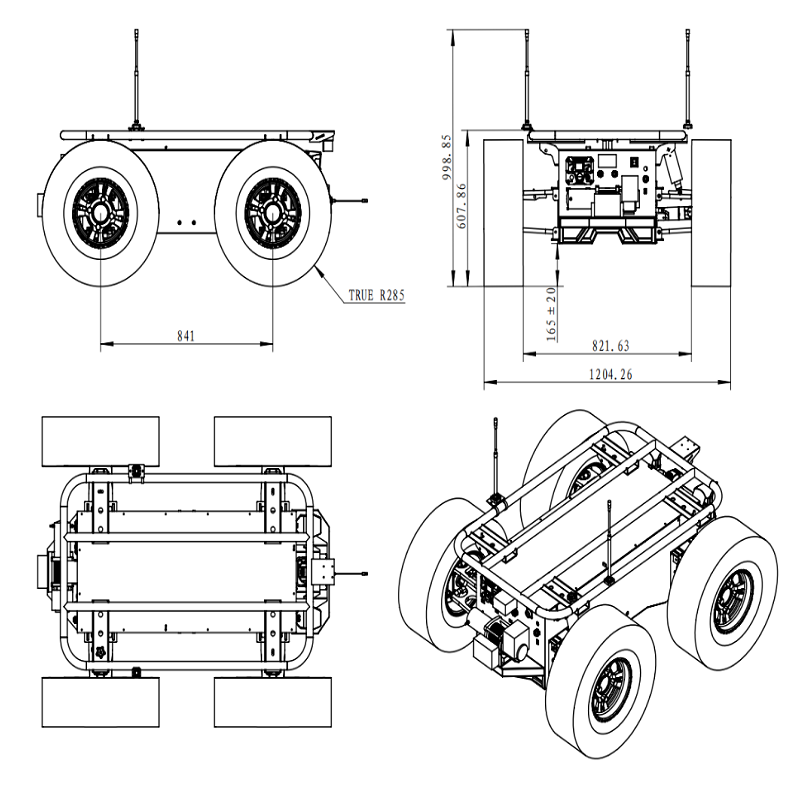

Design Dimensions（mm）: 1450*1220*1000 mm
Running speed: 0-16 Km/h
Chassis self-weight: 300KG
Rated load: 235KG
Ground clearance: 165±20mm（Look at the load）
Protection level: IP54
Motor: 4×2000W
Speed ratio of Reducer: 20
Q1: What makes this agricultural wheeled chassis different from ordinary industrial wheeled chassis?
A: It is equipped with agricultural pneumatic tires and reinforced double wishbone suspension, better shock absorption and anti-sink performance on soft mud farmland; four 2000W four-wheel drive provides stronger traction for farm heavy load work, max speed up to 16km/h to cover large farm areas efficiently.
Q2: Can I install agricultural spraying equipment on this chassis?A: Yes, we can customize special mounting brackets for spray tanks, pumps and spraying nozzles according to your demands, the 235KG rated load fully supports spraying system installation.
Q3: What battery options are available for farm all-day operation?A: Standard 48V lithium battery, we provide 48V60Ah high-capacity optional battery to extend endurance for long-time field patrol without frequent charging.
Q4: Can the running speed be adjusted for precise crop inspection?A: The speed range is 0-16km/h stepless adjustable, low speed for close crop observation and data recording, high speed for rapid farm area patrol.
1.After farm operation every day, clean mud, crop residues and pesticide liquid on pneumatic tires and suspension arms to avoid corrosion and tire aging.
2.Do not exceed the 235KG rated load; overweight will damage suspension structure and motor power system.
3.Do not flush motor compartment, battery box and driver with high-pressure water gun directly, which will destroy IP54 waterproof and dustproof performance.
4.Weekly check suspension connecting bolts and tire air pressure, lubricate suspension joint points to keep flexible shock absorption.
5.Avoid sharp hard objects such as metal stones piercing pneumatic tires during field driving; check tire air pressure before each farm operation.
