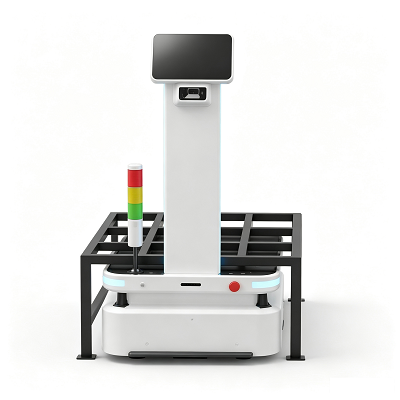

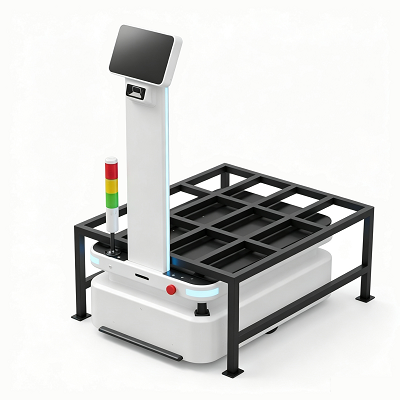

Custom Lifting Height Factory Transfer Robot

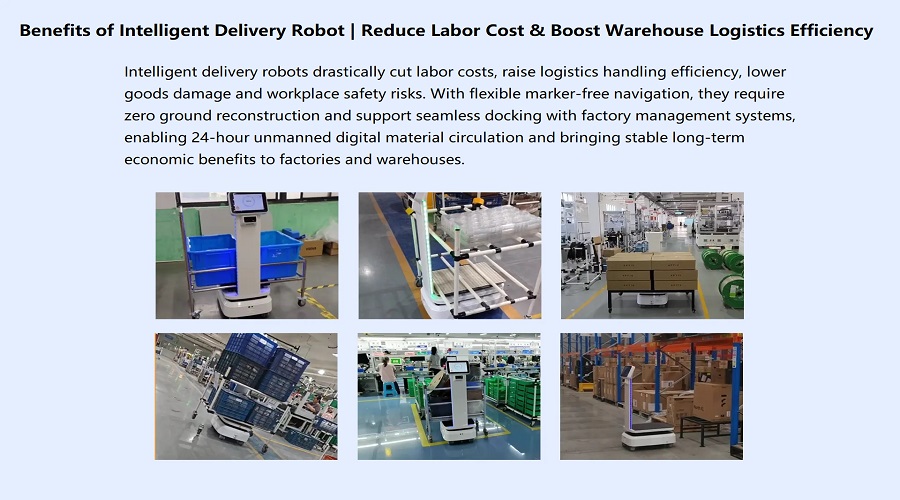

Application Scenarios

1.Mold manufacturing factory: Large injection mold, die casting mold automatic cross-workshop transfer

2.Automobile assembly plant: Auto frame, engine parts heavy rack unmanned feeding

3.Heavy machinery processing workshop: Large metal casting, steel plate pallet intelligent transportation

4.Large raw material warehouse: Bulk heavy hardware, semi-finished product batch delivery

5.Equipment manufacturing factory: Complete machine heavy turnover rack automatic logistics circulation

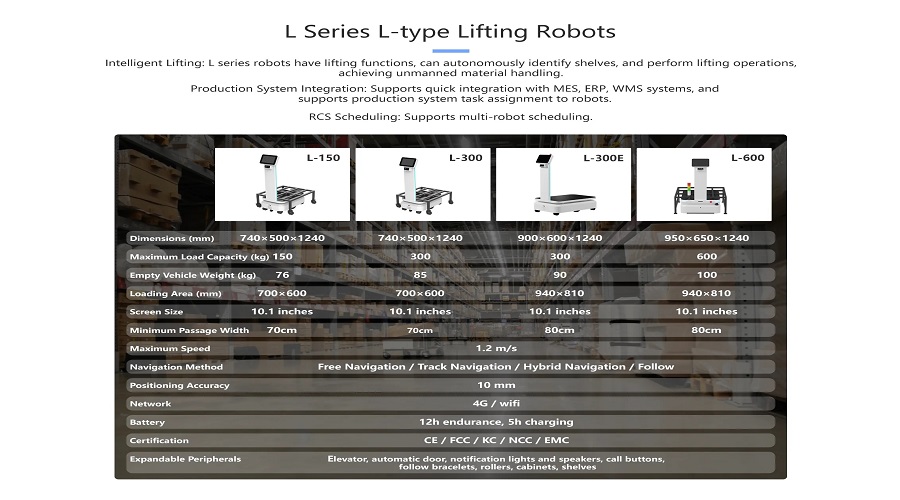

Technical Parameter

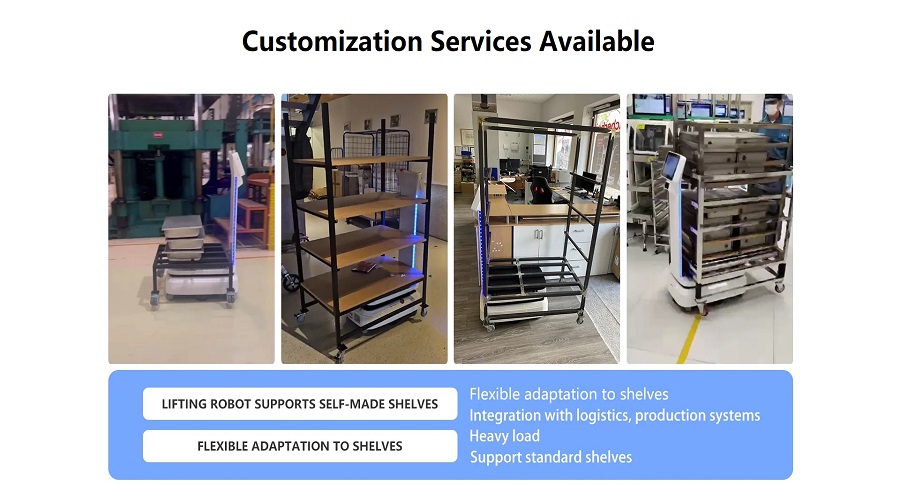

Custom Shelf & Lifting Height Matching Reminders

1.All heavy transport shelves must be customized according to our standard size; self-made oversized, overweight thin frames will cause lifting failure and tipping risk under 600kg load.

2.The bottom of the metal shelf frame must be fully flat without protruding support feet to realize complete contact with the lifting platform.

3.If anti-static workshop or special lifting height demand, inform our technical team in advance to configure customized lifting module and anti-static accessories.

Daily Maintenance & Long-term Storage

1.Daily pre-operation inspection: emergency stop reset status, three-color warning light normal display, sensor cleanliness, battery power, lifting frame no deformation, anti-collision strip intact.

2.Weekly maintenance: wipe dual LiDAR and camera lenses with soft lint-free cloth, clean wheel winding metal scraps, lubricate heavy load wheel bearings, check lifting wiring harness tightness.

3.Long-term storage over 7 days: fully charge the 48V battery first, turn off the main power switch, park the robot at charging dock, charge once every 15 days to protect lithium battery.

FAQ

Q1: What is the maximum load capacity of WD-L600 custom lifting height factory transfer robot?

A1: WD-L600 is our flagship heavy-duty lifting AMR with a rated maximum load of 600kg, specially for large molds, heavy metal parts and oversized pallet transportation.

Q2: Can I customize the lifting height of this transfer robot?

A2: Yes, the standard lifting stroke is 50mm, we support customized lifting height according to your production line shelf docking requirements, matching different height turnover racks.

Q3: What’s the advantage of dual LiDAR navigation compared with single radar AMR?

A3: Dual LiDAR realizes 360° full-angle environmental scanning, wider detection range, stronger anti-interference ability in complex multi-equipment workshops, less positioning drift and lower obstacle avoidance blind spots.
