Factory Intelligent Material Conveying AMR Robot

Core Selling Points

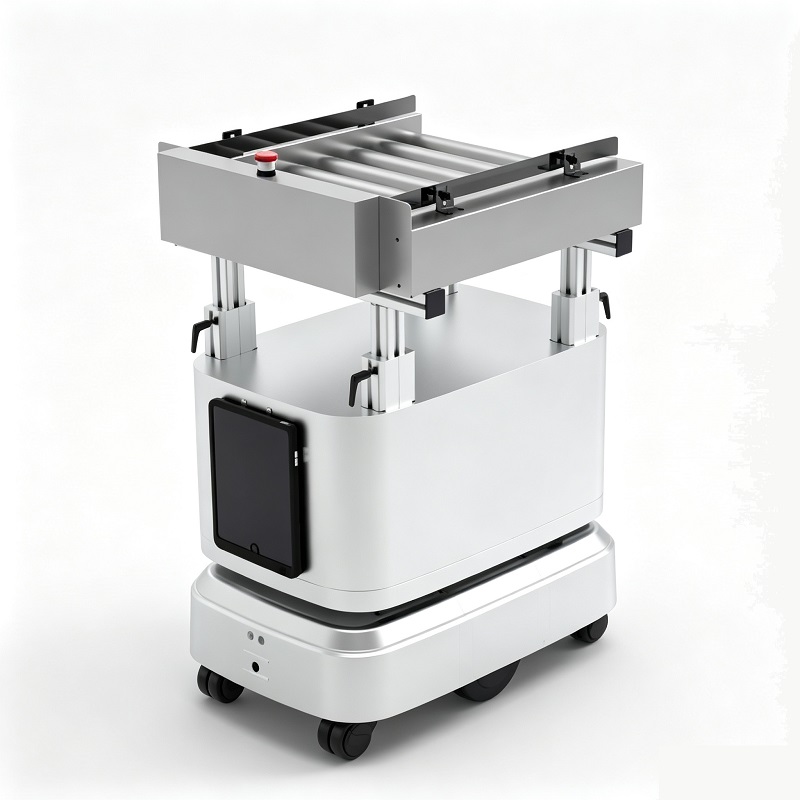

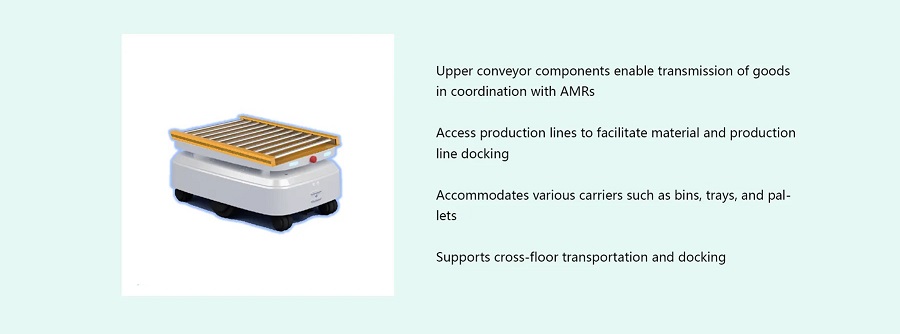

1.Integrated Roller Conveyor, Automatic Production Line Docking

Built-in adjustable-height roller conveying module, automatically transfer goods to and from assembly line conveyors without manual loading/unloading, realize full-automatic closed-loop production line logistics.

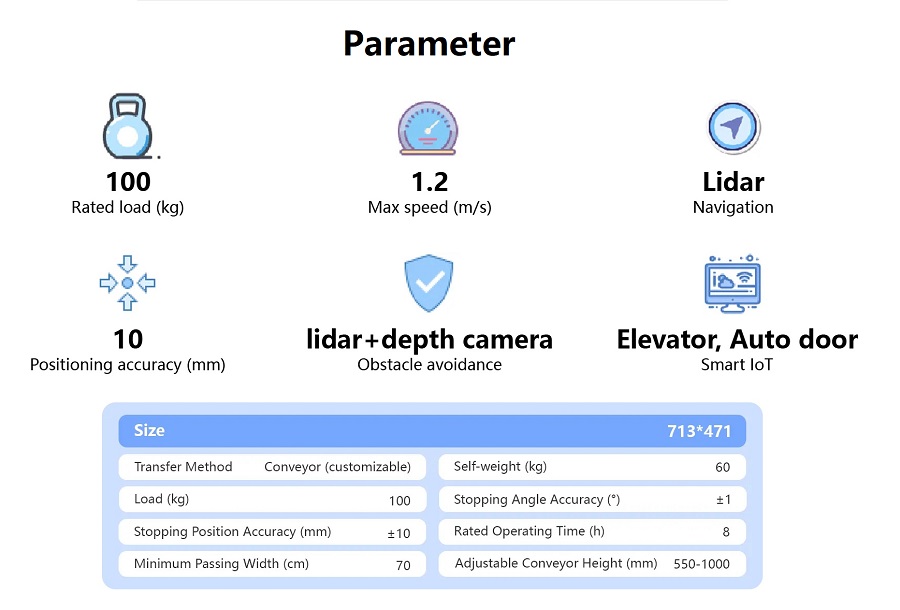

2.100kg Stable Industrial Load, Multi-type Cargo Adaptation

Standard 100kg rated load, compatible with plastic bins, metal trays, cartons and standard industrial pallets, match multi-spec material turnover demands of discrete manufacturing factories.

3.LiDAR + Depth Camera Dual-layer Blind-spot Free Obstacle Avoidance

2D laser radar completes long-distance path planning; depth camera identifies low-height goods, trolley legs and suspended obstacles, fully adapt complex cluttered production line environment to avoid collision and material damage.

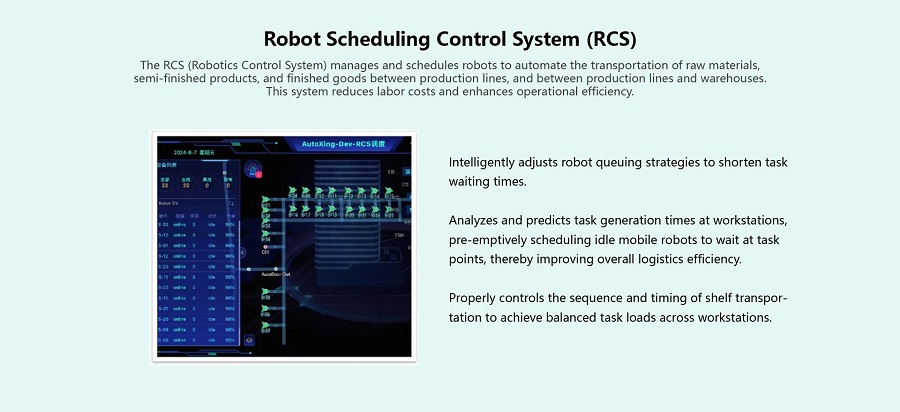

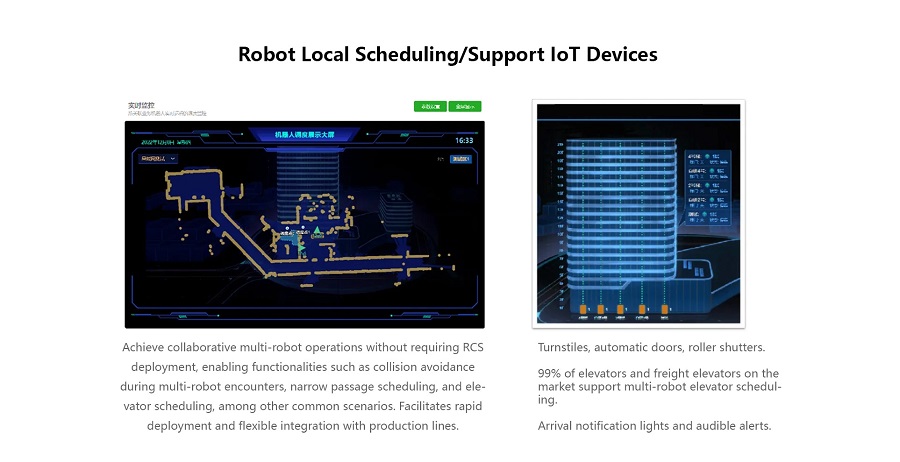

4.Local Independent Multi-robot Scheduling System

No additional RCS server deployment required; realize multi-robot collision avoidance, narrow aisle queuing and elevator shared scheduling locally, lower factory deployment cost and construction cycle.

Core Product Advantages

1. One-stop Automatic Production Line Docking Solution

Different from flat-top transfer AMRs that need manual loading, WD-S integrates roller conveying structure to realize automatic material handover between robot and production line conveyors, eliminate manual handling links, greatly reduce workshop labor input.

2. Low-cost Lightweight Multi-robot Deployment

Independent local scheduling function removes the need for dedicated scheduling server hardware; small and medium factories can deploy multiple robots at low cost, realize multi-station synchronous material delivery without large-scale factory reconstruction.

3. Full-scene Cross-floor Logistics Capability

Through IoT signal linkage with elevator control panels, the robot automatically calls elevators and enters/exits stably, completing raw material delivery from warehouse to multi-floor production lines and finished goods back-storage cross-floor circulation.

4. Highly Flexible Customization Adapt To Diversified Production Lines

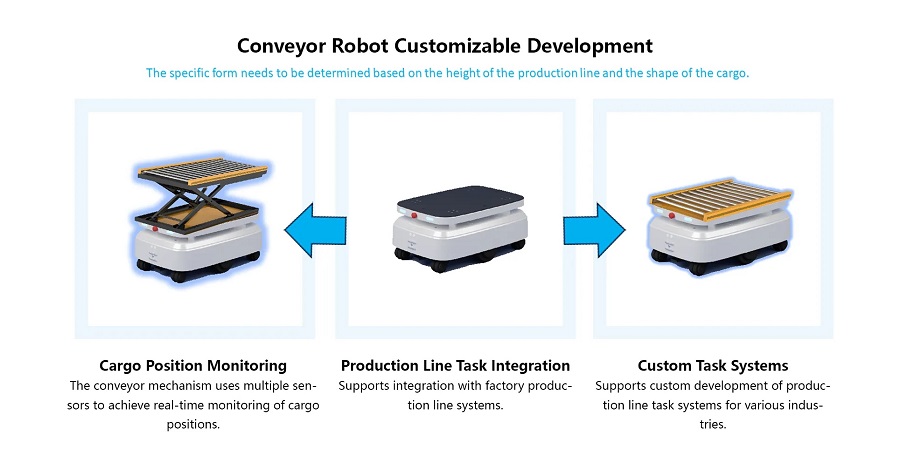

Three optional top structures: flat load platform, standard roller conveyor, scissor lifting roller conveyor; sensors, communication protocols and task logic can be modified according to production line cargo size and station layout, perfectly match personalized workshop logistics demands.

Customization Service

1.Top Conveyor Customization: Scissor lifting roller conveyor, anti-static roller, wide/narrow roller size adjustment, goods real-time weight & position monitoring sensor addition.

2.Load & Power Customization: Upgrade to 150kg/200kg heavy load chassis, extended large-capacity battery for 12h continuous operation, low-temperature resistant battery for cold storage workshop.

3.Navigation & Sensor Customization: Dust/oil mist enhanced LiDAR for metal processing workshops, anti-reflection depth camera for high-brightness production environment.

4.Appearance & Scene Modification: Anti-static whole machine modification for electronic workshops, IP54 dustproof and waterproof upgrade for humid processing workshops, custom body shell color and brand logo printing.
