Factory Material Handling AMR Robot

Product Overview

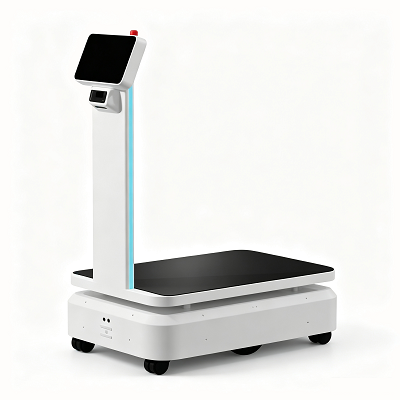

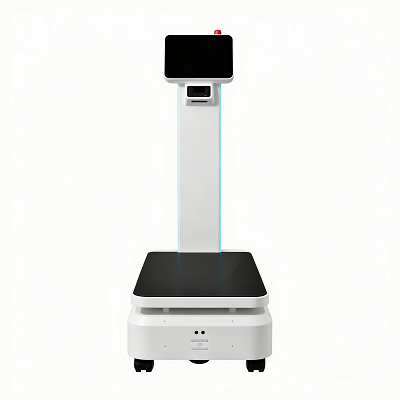

WD-D300 & WD-D300E series Factory material handling AMR robot are heavy-load flatbed autonomous mobile robots, independently developed for medium-to-heavy industrial material transportation.

Different from multi-layer tray AMR, this series adopts integrated large flat chassis, perfect for bulky molds, metal parts, finished equipment, large packaging boxes that cannot be layered placed. Two sizes optional: compact WD-D300 for narrow production lines, widened WD-D300E for large-size workpieces.

Core Product Advantages

1.Dual Size Platform Selection for Different Space Demands

WD-D300 Compact Version: 740×500mm platform, min passing width 70cm, flexible in narrow workshop aisles

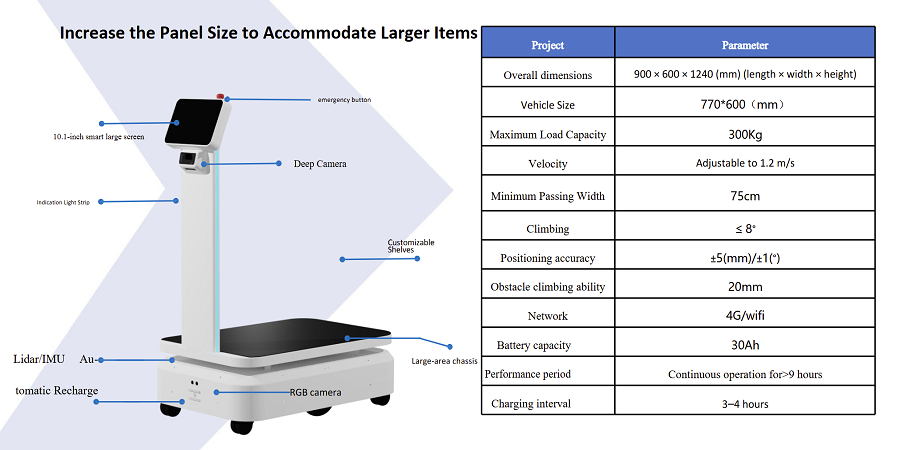

WD-D300E Wide Version: 900×600mm extra large chassis, holds oversized long & wide workpieces, min passage 75cm

Both models support max 300kg heavy load to meet factory heavy handling demands.

LiDAR+IMU+Deep Camera+RGB Camera multi-sensor positioning, positioning accuracy ±5mm horizontal / ±1° rotation, real-time dynamic obstacle avoidance, surmount 20mm ground bumps, climb slopes ≤8°, stable running on complex factory floors.

3.Large Capacity Battery & Auto Charging

30Ah lithium battery pack, continuous running over 9 hours, full charging takes only 3-4 hours. Low-power automatic return charging dock, support 7×24h unattended factory material handling.

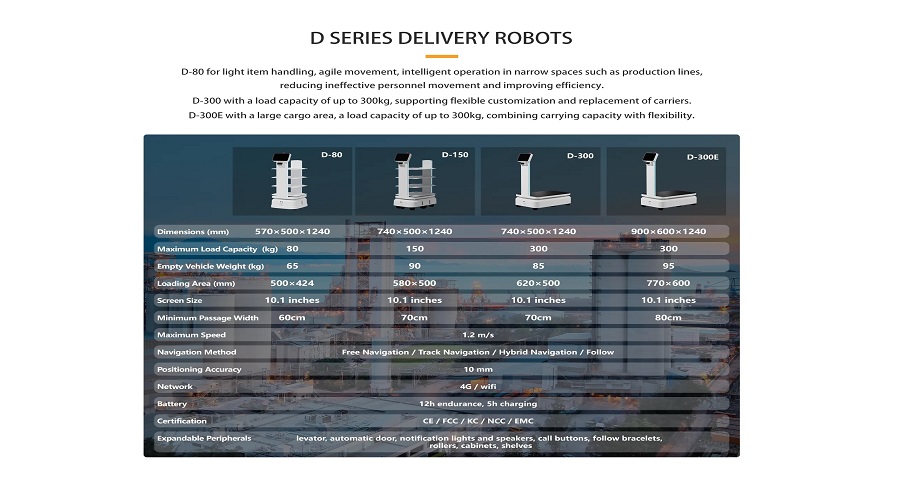

Technical Parameter

WD-D300 (Compact Narrow Version)

WD-D300E (Wide Large Platform Version)

Application Scenarios

1.Machinery processing factory: Mold, metal casting, large hardware parts transfer

2.Automobile manufacturing workshop: Auto spare parts, assembly tooling transportation

3.Equipment assembly plant: Semi-finished large equipment handling between production lines

4.Heavy goods warehouse: Large cartons, whole batch finished product delivery

5.Hardware & metal workshop: Raw material steel plate, aluminum alloy circulation

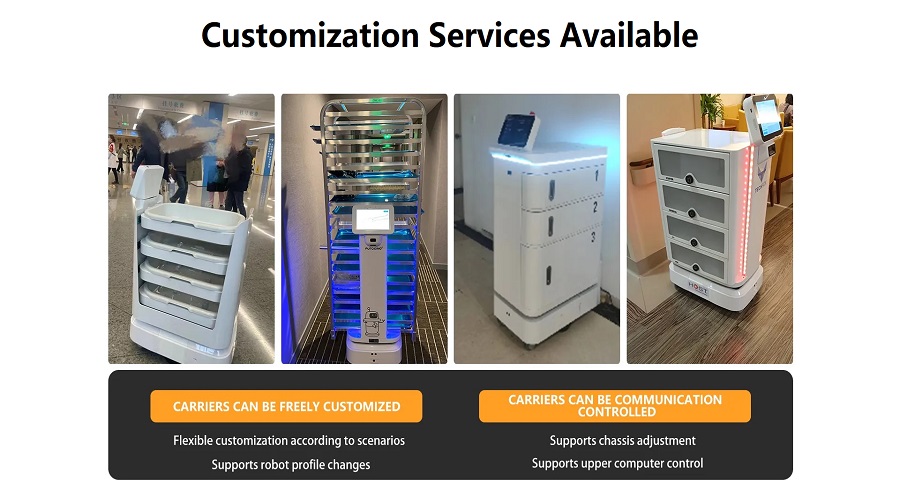

Customization Service

Our full series factory material handling AMR robot covers load range from 40kg to 600kg. Optional configurations: flatbed single platform, multi-layer tray, anti-static wheel, explosion-proof chassis, extended scheduling system, customized size platform. We provide turnkey intralogistics automation solution including hardware, software system and overseas remote technical training.
