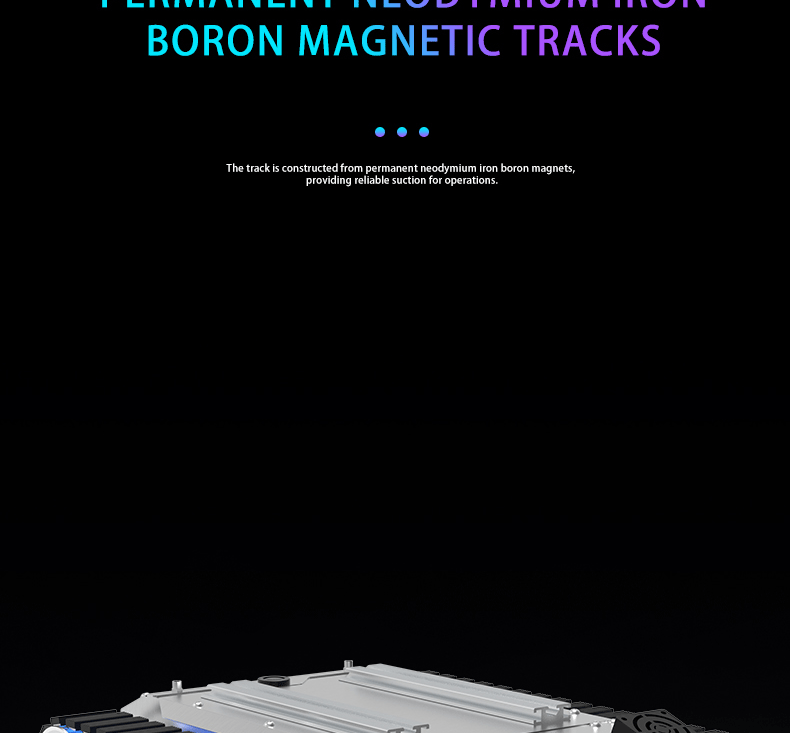

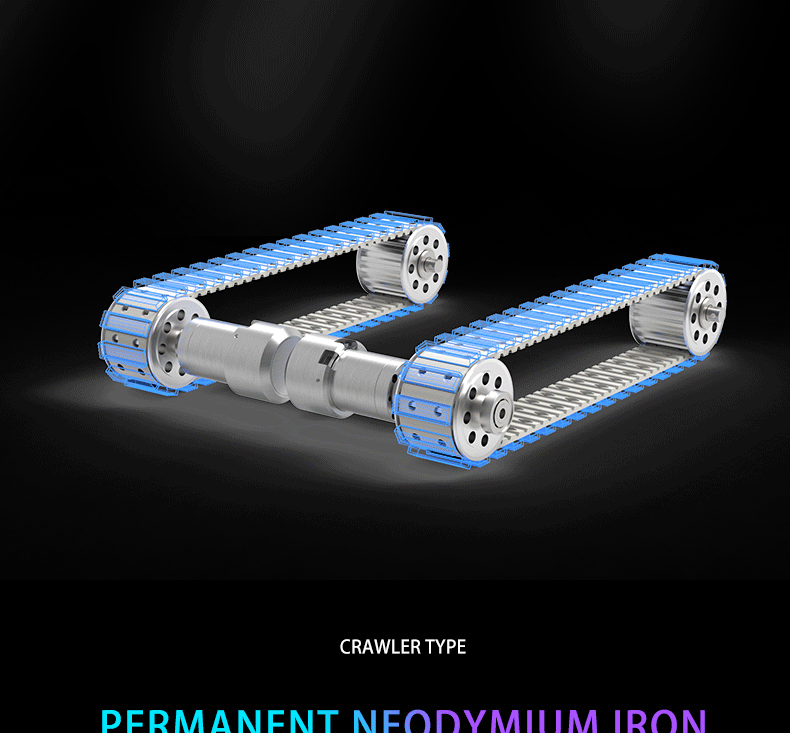

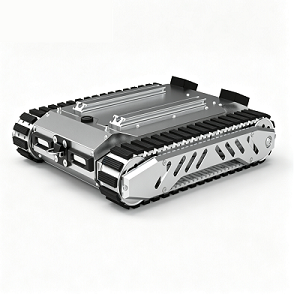

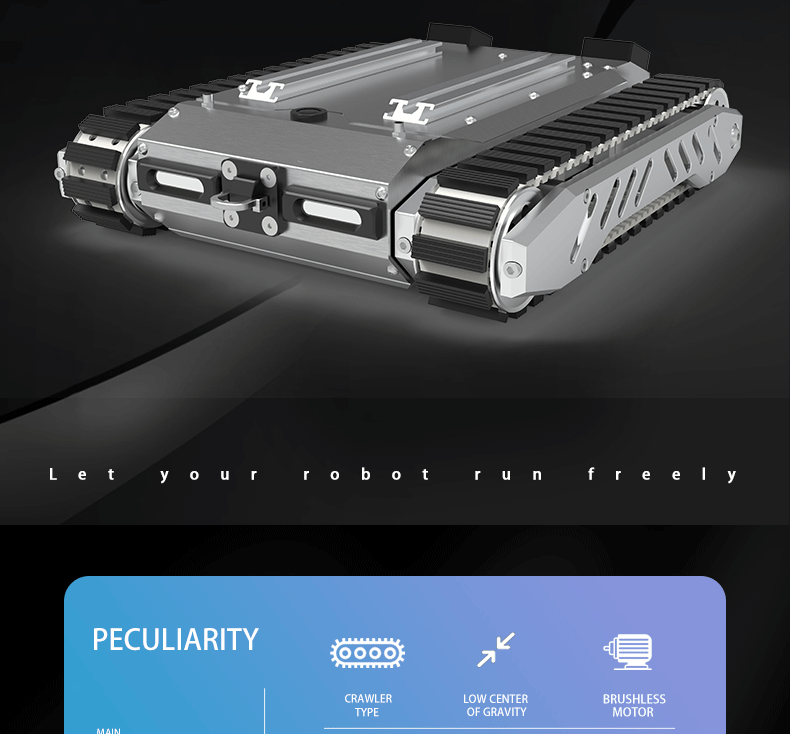

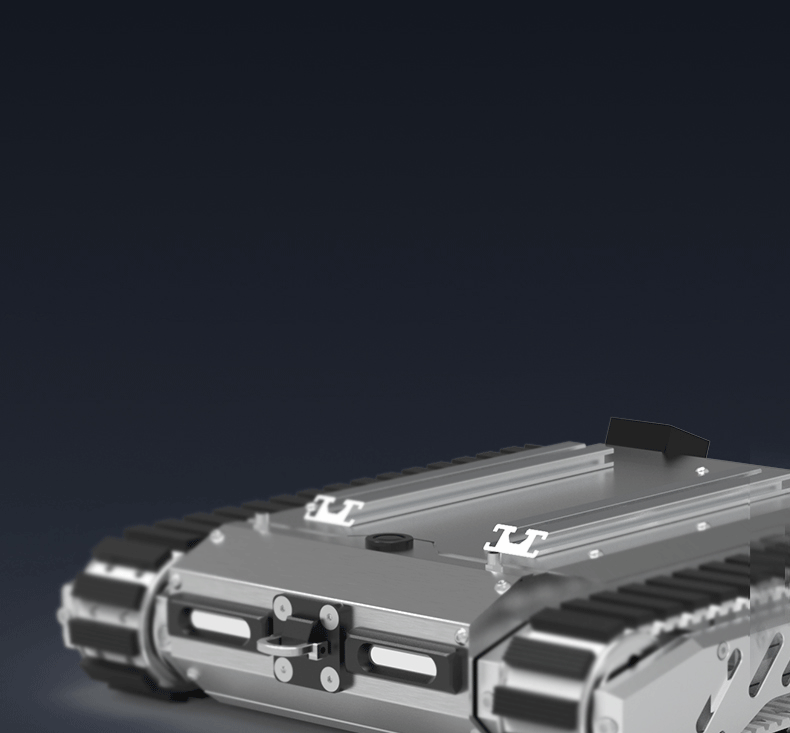

WD-Ma360 Magnetic Wall Climbing Robot Chassis is our classic heavy-duty tracked climbing base specially developed for ferromagnetic metal vertical walls. Different from vacuum suction climbing equipment, this crawler chassis uses polyurethane magnet composite tracks to form strong permanent magnetic adsorption force, which will not fail due to air leakage, ideal for long-time continuous marine and petrochemical industry work.

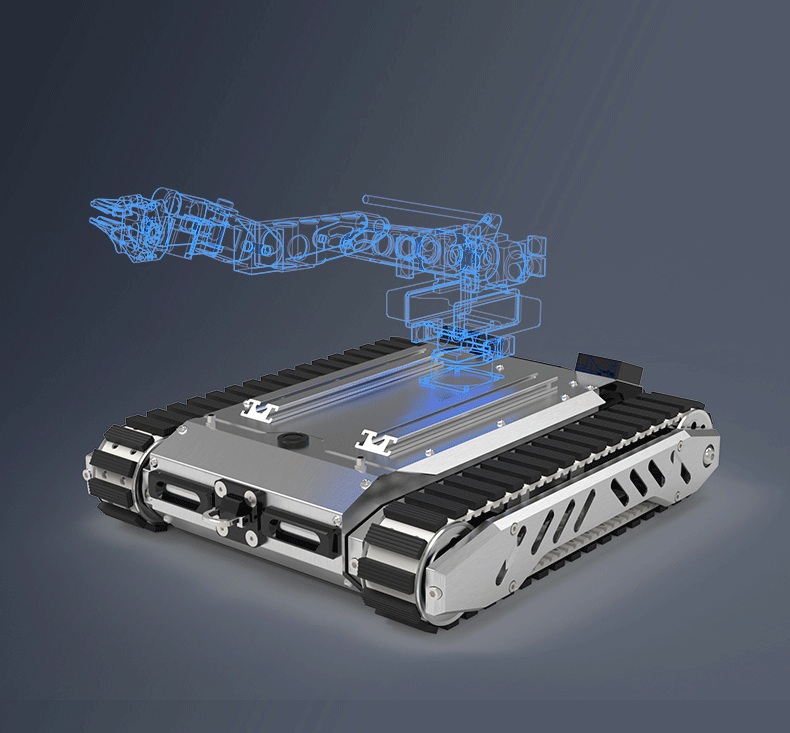

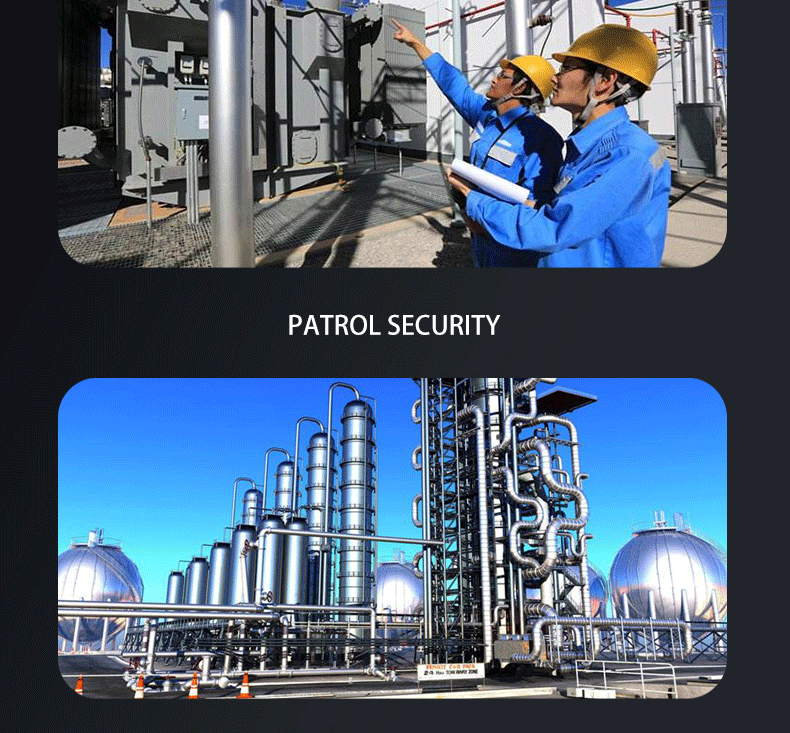

The whole chassis adopts integrated stainless steel and aluminum alloy structure, ultra-thin 3mm bottom clearance greatly improves obstacle crossing and curved surface passing performance, it can smoothly walk on cylindrical surfaces with diameter above 5 meters, widely used in ship hull cleaning, oil storage tank inspection, steel tower rust removal, NDT ultrasonic testing and other industrial scenarios. We support full OEM & ODM customization for payload, protection grade and mounting cabin size.
1.Strong Magnetic Adsorption

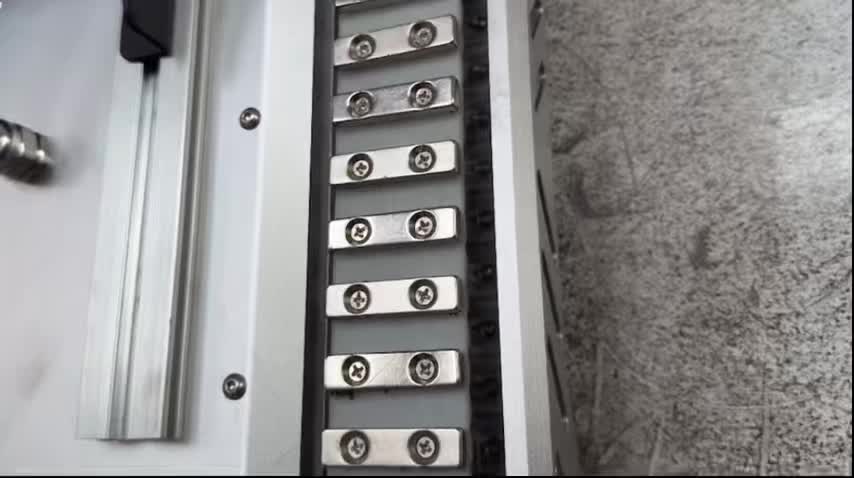

Permanent magnet composite tracks, stable adsorption on 90° vertical walls and 180° ceiling; 10kg rated vertical payload, 60kg extreme test load at 85°, 10kg ceiling load, safe for heavy equipment mounting.
2.Excellent Curved Surface Adaptability

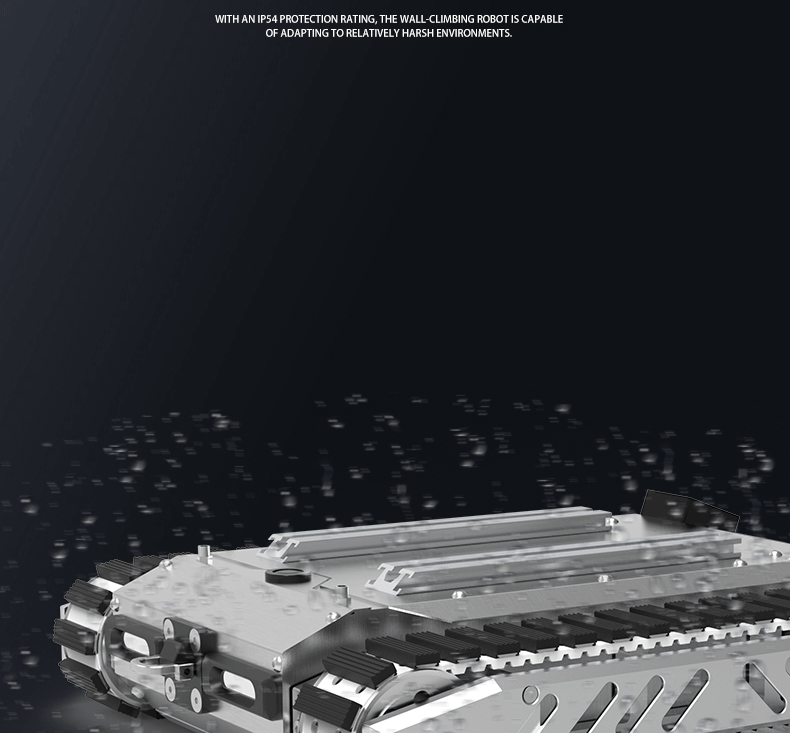

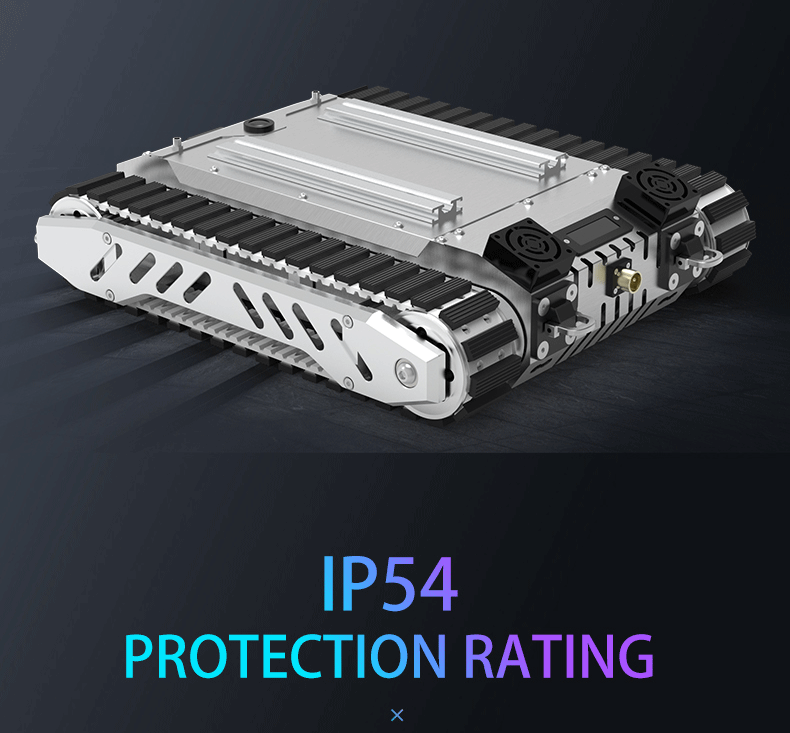

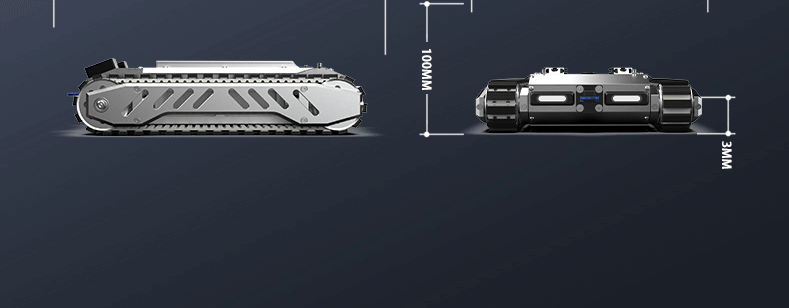

Ultra-low 3mm chassis ground clearance, minimum adaptable cylinder diameter up to 5 meters, freely travel on large storage tanks, ship curved hull surfaces. Optional upgraded IP65 waterproof version (partially reduce curved surface adaptability).
3.Dual Brushless Power System
Dual 240W DC brushless reduction motors, total 480W power, 16.8NM single output torque, 125RPM stable rotation speed, stepless adjustable moving speed 0-0.5m/s, powerful climbing performance. Dual cooling fans effectively reduce motor heat during long-hour work.
