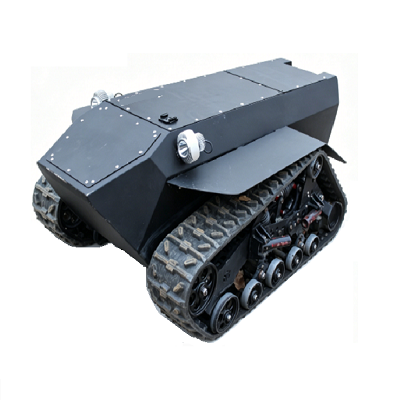

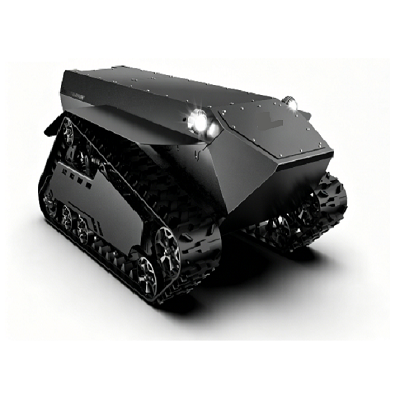

All Terrain Crawler Robot Undercarriage

Derivative Robots

1.Heavy-duty fire fighting robot:

IP64 waterproof design works in waterlogged fire scenes, equipped with high-pressure water cannon, thermal imager and fire sensors, carrying large-capacity fire extinguishing water tank for flammable and smoky disaster zones.

2.Border reconnaissance patrol robot:

Super 400mm obstacle crossing adapts to mountain gravel slopes, fitted with long-range dual-spectrum PTZ camera and wireless transmission for large-area border security inspection.

3.Tunnel & underground pipeline inspection robot:

High ground clearance and great trafficability fit rugged underground passages, equipped with crack and flaw detection sensors for long-term damp underground operation.

4.Heavy EOD robot:

Max 150KG load supports heavy mechanical manipulators and full set of bomb detectors for remote disposal of dangerous explosive sites.

5.Mineral geological exploration robot:

Wear-resistant Kevlar tracks suit wild gravel mountain areas, carrying soil samplers and multi-gas radar for outdoor mineral & environmental data collection.

FAQ

1.Q: Does this chassis support stair climbing?

A: Yes, max climbing angle 30°, it can steadily climb standard stairs, vertical & horizontal obstacle crossing up to 400mm.

2.Q: What’s the protection grade of WD-K4? Can it work in rain?

A: Standard full IP64 waterproof & dustproof, no need extra modification for rainy, splashing and dusty working environment.

3.Q: How many shock absorbers are equipped on the suspension system?

A: 6 groups Christie independent hydraulic dampers, long stroke design to buffer strong vibration off-road.

Precautions

1.Load control: Avoid continuous climbing and obstacle crossing under full 150KG extreme load for long time. Reduce speed under heavy load to prevent permanent suspension deformation.

3.Body cleaning: Do not use strong acid or alkali detergent on matte plastic-spray housing; wipe with clean water and neutral cleaner only.

Customized service

1.Overall dimension customization: Adjustable length, width, height, ground clearance and wheelbase to fit narrow tunnels, indoor inspection and heavy outdoor working space.

2.Load capacity customization: Custom load grade from 50kg light load, 125kg standard, 150kg heavy load to ultra-heavy version by upgrading suspension, frame thickness and torque output.

3.Extension base customization: Add mounting flanges for manipulators, spray brackets, lift bases for lidar and external equipment storage boxes.

4.IP rating customization: Standard IP54, upgradeable full IP64 or partial IP67 waterproof for wading, fire site and high-dust mine.

5.Control mode customization: Handheld remote controller, tablet APP, PC upper computer and automatic cruise auto-driving program.
