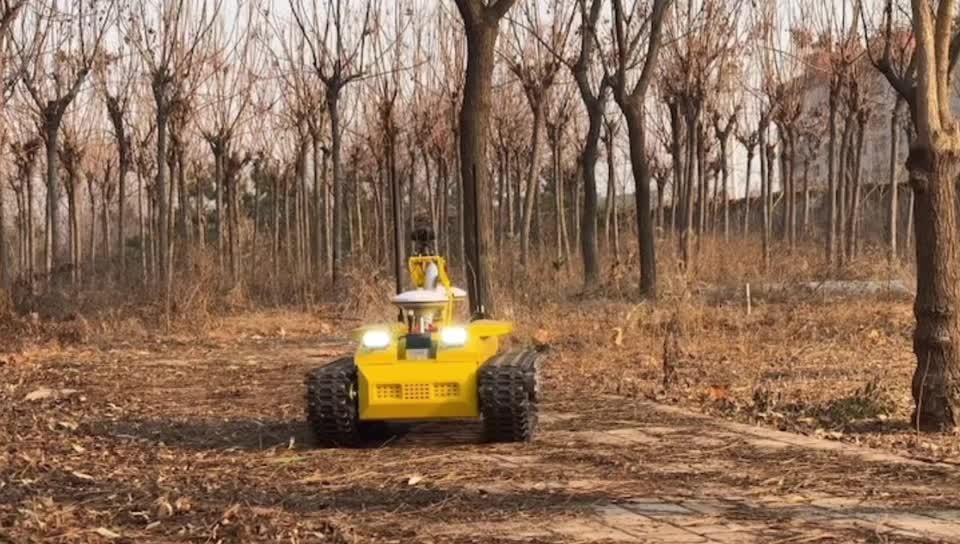

Lightweight High Speed Tracked Robot Chassis

Model:WD-K0
WD-K0 lightweight high-speed tracked robot chassis with full aluminum frame and carbon fiber suspension. Adopts low-resistance segmented tracks, supporting in-place rotation, max speed 10KM/H, weight under 50KG. Equipped with coreless DC servo motors, planetary reducers and 12 hydraulic dampers, patterned tracks offer strong traction and smooth off-road performance for reconnaissance robots.

Product Parameter Information of WD-K0

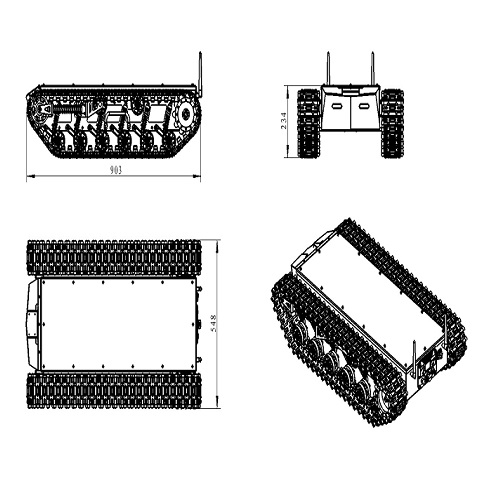

Design Dimensions (Length, Width, Height):905*550*235mm

Internal compartment dimensions (Length × Width × Height):796*296*138mm

Rated Power:430W*2 (Capable of continuous operation at a power of 1.1KW*2)

Motor voltage:48V

Running speed:10KM/H

Chassis weight:<50KG

Rated Load Capacity:20KG

Ground Clearance:>85mm

Rated Obstacle-surmounting Capacity:180mm (capable of climbing stairs)

Maximum Climbing Gradient:30°

Maximum Span:>350mm

Protection Class:IP64/IP65

Hot Tags: lightweight tracked chassis,high speed robot undercarriage,reconnaissance robot platform,aluminum carbon fiber crawler base
