Design Size:
1615*830*480mmChassis Self Weight:
160kgRated Design Load:
300kgRunning Speed:
0–21km/hProtection Grade:

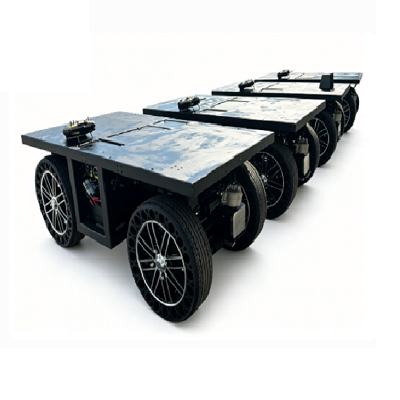

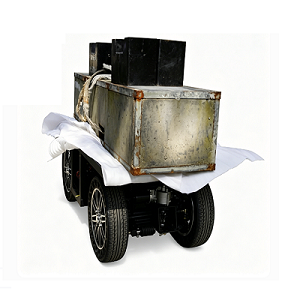

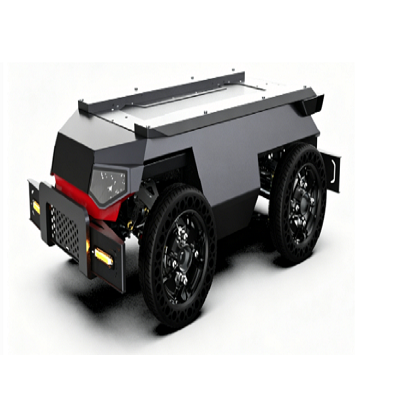

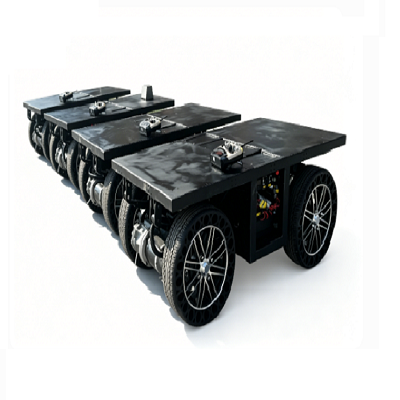

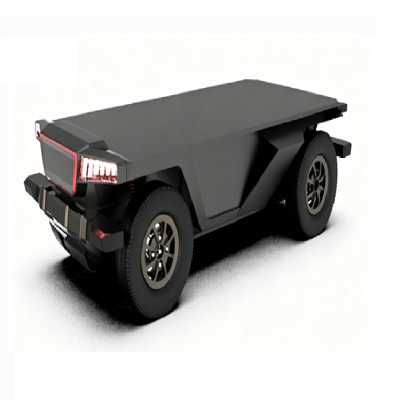

IP54WD-W3-2200H Electric Ackermann Wheeled Chassis is a heavy-duty electric unmanned ground vehicle platform designed for medium-heavy load outdoor working conditions. It uses mature front Ackermann four-wheel steering structure paired with rear integral hard differential axle drive, combining flexible steering performance and powerful load capacity to adapt to complex outdoor road environments.

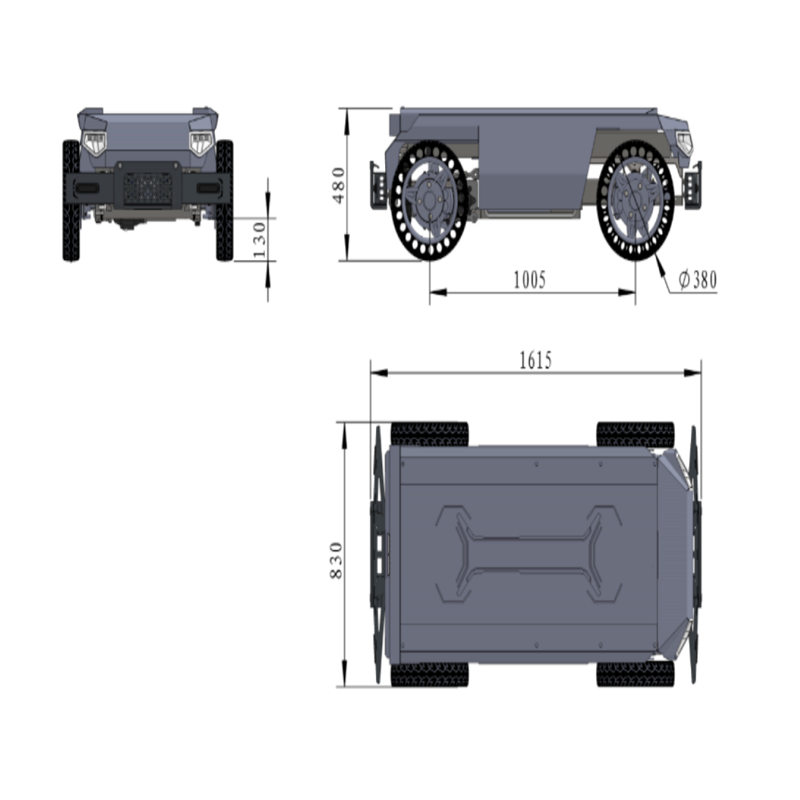

Overall Design Size: 1615*830*480mm
Internal Empty Cabin Size: 1250*435*100mm
Chassis Self Weight: 160kg
Rated Design Load: 300kg
Running Speed: 0–21km/h
Turning Radius: 2.5m
Ground Clearance: 130mm
Protection Grade: IP54
Max Climbing Angle: 10°
Max Obstacle Surmounting Height: 120mm
Q1: Can this electric Ackermann chassis support secondary development?
A: Yes. The brushless driver reserves complete CAN/RS485 communication interfaces, compatible with ROS, industrial computers and mainstream navigation control systems.
Q2: Can the electric Ackermann chassis work in rainy and dusty outdoor environments?A: IP54 protection grade, resistant to dust and splashing water; suitable for all-day outdoor patrol, not for long-term water immersion.
Q3: Does the electric chassis have parking brake for slope parking?
A: Equipped with front disc rear drum dual brake system with independent mechanical parking brake, effectively preventing sliding on slopes under full 300kg load.
