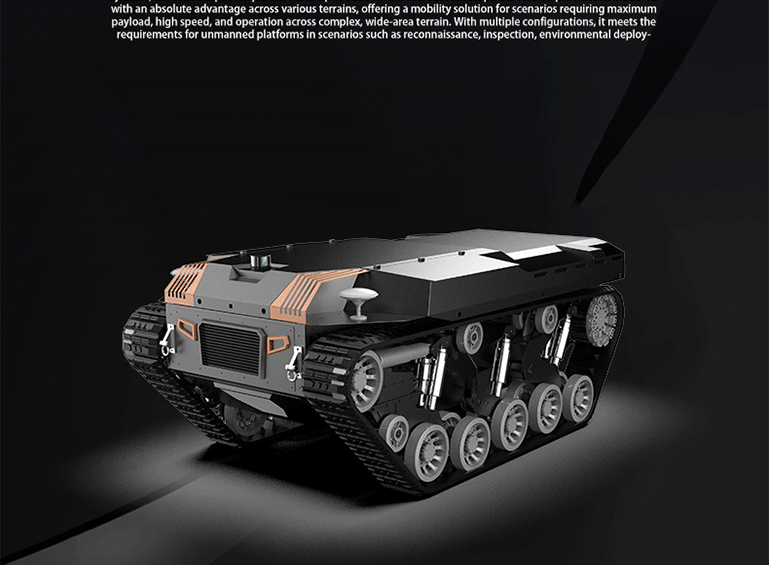

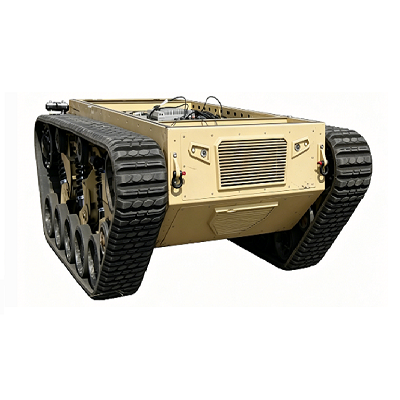

Electric Tracked Chassis Unmanned Platform

Safe Operation Guidelines

1. Environment

Operate in an open area far away from crowds, buildings and sources of electromagnetic interference.

Operate in an environment with a temperature range of -20℃ to 55℃ and favorable weather conditions (no rain, heavy fog, snow, thunder and lightning, strong winds or extreme weather).

Operate within legal zones and do not drive onto motor vehicle roads.

2. Inspection

Ensure that the robot, remote control and mobile devices have sufficient power.

Ensure the robot battery is firmly installed and the upper-mounted equipment is reliable.

Make sure the tracks or tires are intact and free of foreign objects, with undamaged power systems and antennas.

Ensure the remote control antenna has full signal strength.

Make sure all screws on the vehicle body and suspension components are tightly fastened without looseness.

Quick Start Guide

1. Unboxing

The product consists of seven major components: wooden pallet, left and right panels, front and rear panels, cover plate and binding straps. It is easy to assemble and disassemble, eco-friendly, space-saving and reusable. Please follow the steps below for safe and proper operation:

2. Power on

First turn on the power switch of the remote controller, then turn on the vehicle body power switch and release the emergency stop. Wait for successful communication between the remote controller and the receiver (the remote controller shows full signal bars). Operate the remote controller, and you can start using the device.

Notes: Power-on sequence

1. Turn on the remote controller power first

2. Then turn on the vehicle body power
