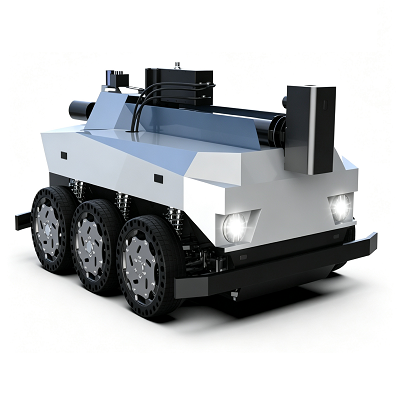

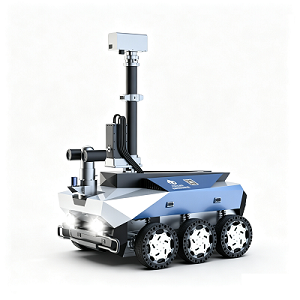

Explosion Proof Six Wheel Wheeled Chassis

Product Overview

WD-W3-6400EX explosion proof six wheel wheeled chassis is a special heavy-load unmanned mobile platform with complete explosion-proof electrical system, dedicated to all kinds of flammable and explosive hazardous working environments such as petrochemical plants, gas depots and chemical warehouses.

Technical Parameters

Size: 1615*830*480

Chassis weight: 160kg

Maximum obstacle-crossing capacity: 120mm

Battery capacity: 48V/30Ah

Running speed: 0-21km/h

Chassis Height: 130

Protection Grade: IP54

Load capacity: 300kg

Maximum climbing gradient: 10°

Application Scenarios

1.Petrochemical factory pipeline safety inspection robot

2.Natural gas station & oil depot leakage monitoring unmanned vehicle

3.Paint, coating factory flammable gas detection mobile platform

4.Chemical warehouse fire hazard patrol monitoring chassis

5.Energy storage battery plant hazardous zone sampling robot

FAQ

Q1: What explosion safety advantages does this explosion proof six wheel wheeled chassis have?

A: The whole vehicle’s motor, control circuit and battery compartment adopt integrated explosion-proof sealing design, matched with 15-inch air-free explosion-proof tires to eliminate tire deflation explosion risk, safe for IIB/IIC hazardous gas working environments.

Q2: What’s the function of dual-speed rear axle reduction?

A 1:10 high-speed gear for fast large-area factory patrol at 21km/h max speed; 1:20 low-speed high-torque gear for stable climbing and precise close-range detection.

Q3: Is parking brake standard equipped?

A Yes, independent mechanical parking brake is pre-installed, which can reliably lock the vehicle body when parked on slopes inside chemical plants to avoid sliding risks.

Daily Operation

1.Strictly prohibit disassembling explosion-proof motor, battery and control box sealing covers in hazardous gas areas, disassembly will invalidate explosion-proof safety performance.

2.Clean chemical dust, paint mist and gravel stuck on explosion-proof tires and shock absorbers after daily patrol to avoid tire abrasion and suspension jamming.

3.Do not exceed the rated 300kg load for long-term operation, overweight will damage rear axle reduction structure and suspension system.

4.Check parking brake locking function before stopping on slopes to prevent vehicle sliding accidents in chemical workshops.

5.Do not use high-pressure water gun to directly flush explosion-proof electrical compartments, which will damage IP54 sealing and explosion-proof structure.
