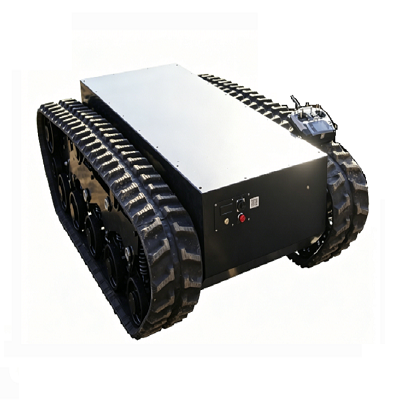

Heavy Duty Crawler Track Robot Chassis

WD-K6G Product Parameters

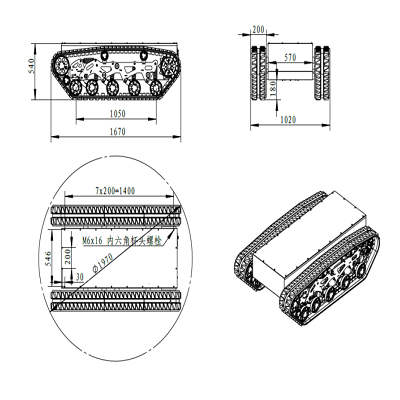

Design dimensions (mm): 1670*1020*540

Chassis weight: 392KG

Speed: 0-4.7km/h

Ground clearance height: 180mm

Protection level: IP54/64

Maximum span: 300mm

Maximum load capacity: 400KG

Maximum climbing: 15 ° (4.7km/h full load)/30 ° (1.5km/h full load)

Vertical span: 220mm

Core Selling Points

1.Dual-speed graded climbing design for all-terrain adaptation. Under full load, it climbs 15° slopes at 4.7km/h for fast transfer, and conquers steep 30° slopes at low speed 1.5km/h. 180mm ground clearance realizes 300mm horizontal & 220mm vertical obstacle crossing for rugged construction sites.

2.0-4.7km/h stepless adjustable speed balances fast heavy-load transportation and low-speed precise inspection.

3.Optional IP54 / IP64 dustproof & waterproof rating. Matte black plastic-spray alloy body resists corrosion, suitable for all-weather rainy, dusty and humid industrial sites.

Derivative Robots

1.Heavy-duty industrial flaw inspection robot:

Carry large NDT flaw detection equipment and high-definition PTZ for bridge, steel structure and tank surface inspection.

2.Mine geological exploration robot:

Steel-reinforced tracks adapt to mine gravel slopes, equipped with sampling drill and mineral detection radar for long-distance mineral survey.

3.Large industrial park security patrol robot:

Equipped with multi-lens thermal imager and lidar for long-time patrol in ports, mines and large factories.

FAQ

1.Q: What is the maximum load of WD-K6G heavy duty crawler chassis?

A: The chassis weighs 392KG including 48V150 battery, max rated load reaches 400KG, suitable for all kinds of heavy industrial equipment.

A: It can climb 15° at full speed 4.7km/h, and climb steep 30° at low speed 1.5km/h for complex mountain slopes.

3.Q: Can I upgrade the waterproof grade from IP54 to IP64?

A: Yes, we support customized IP64 full waterproof upgrade for humid, splashing and fire working environments.

Precautions

1.Climbing rule: Switch to low speed 1.5km/h before climbing 30° steep slopes, never use 4.7km/h high speed to avoid transmission overload damage.

2.Load limit: Do not operate continuously over the 400KG max load for long term; overloading will cause permanent deformation of suspension and frame.

3.Track protection: Sharp steel bars and hard gravel may scratch steel-reinforced tracks, track guard plates are recommended for mine working conditions.

4.Wading instruction: Standard IP54 only resists splashing water, long-time immersion is forbidden. IP64 version supports short wading, water depth cannot exceed drive wheel center.

5.Body cleaning: Clean matte alloy housing only with neutral detergent and clean water, strong acid or alkali cleaner is prohibited to prevent corrosion.
