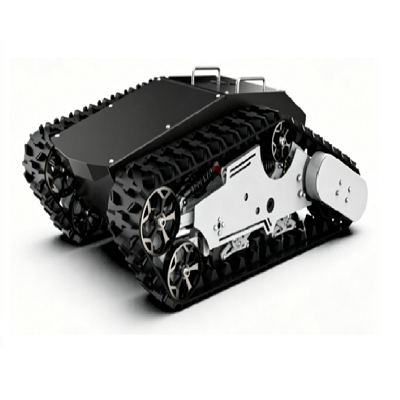

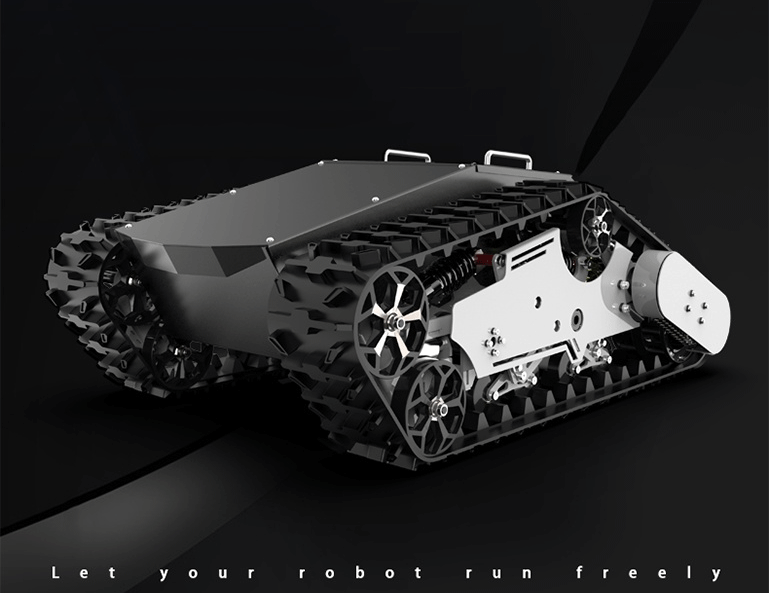

WD-K2 Remote Controlled Tracked Robot Chassis

Product Selling Points

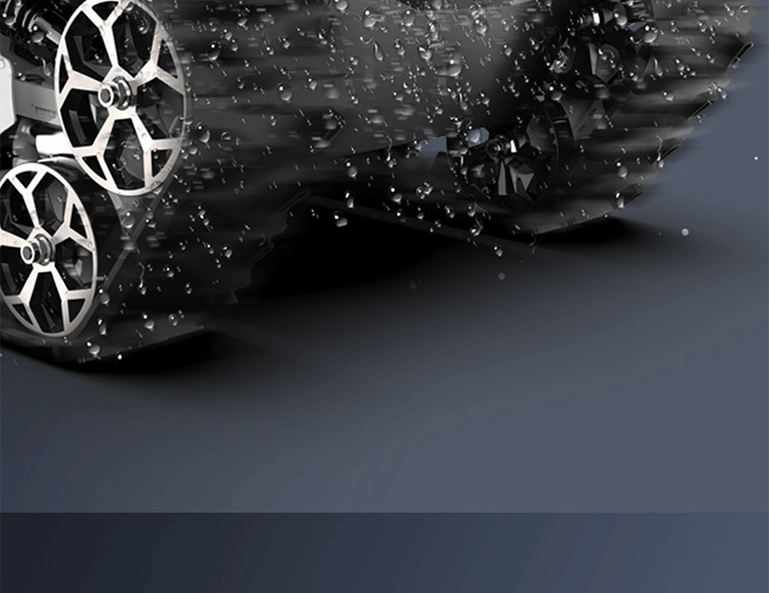

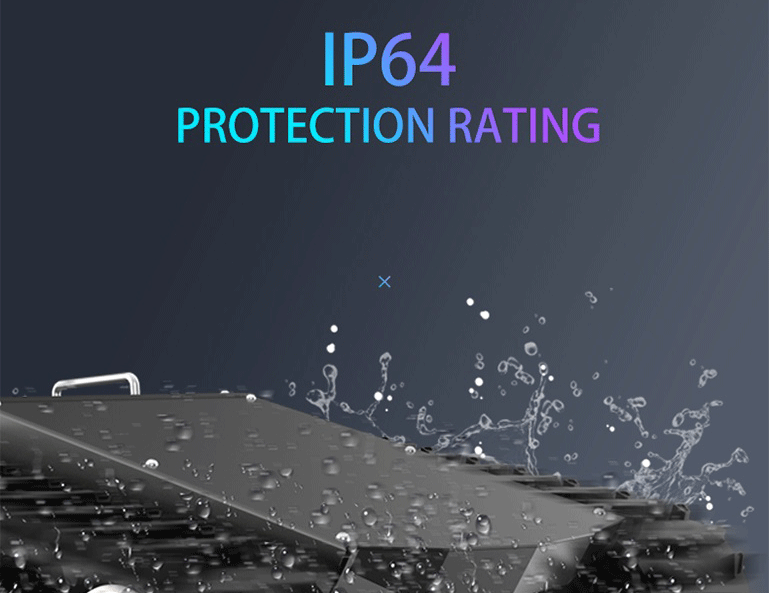

1.Multi-structure heavy-duty body made of 304 stainless steel, alloy steel and aluminum polymer. Matte black plastic-spray surface anti-corrosion & wear-resistant, standard IP54 protection and optional upgraded IP64 waterproof grade for outdoor harsh conditions.

2.Large built-in equipment compartment (320240160mm without battery) provides ample space to install batteries, controllers, PTZ cameras, lidar, gas detectors, fire suppression units and other customized modules.

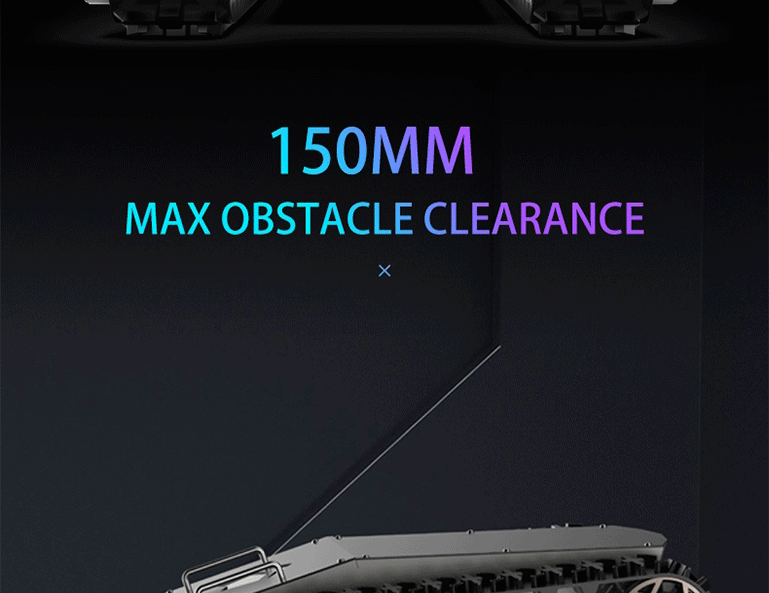

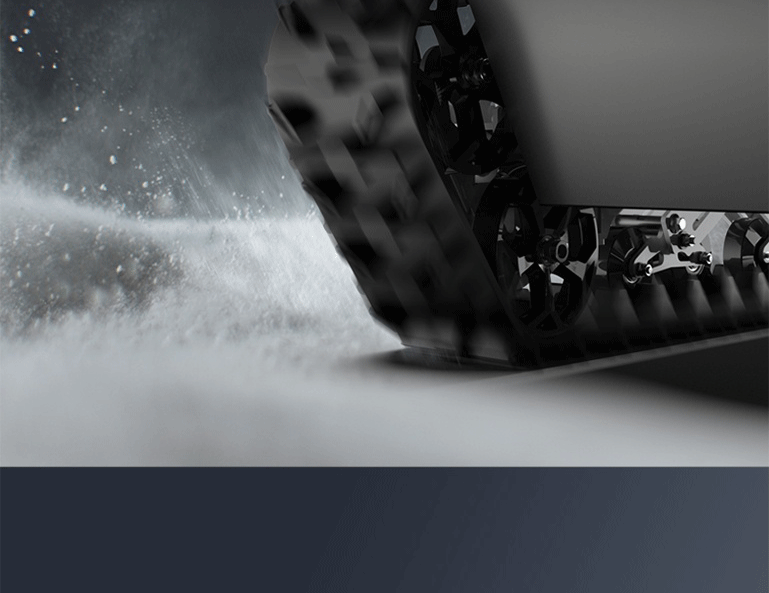

3.All-terrain mobility design, capable of climbing stairs up to 30°, crossing 150mm vertical barriers and 300mm horizontal obstacles. 150mm wide Kevlar rubber tracks offer strong traction for mud, gravel, slopes and stairs.

Product Expansion

Based on standardized WD-K2 chassis parameters, multiple customized special robots can be developed:

1.Reconnaissance & Inspection Robot:

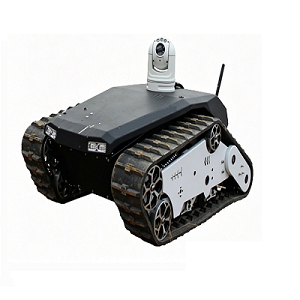

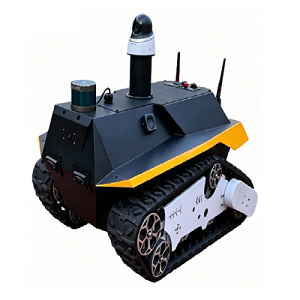

Equipped with PTZ camera, thermal imager and lidar for factory security, tunnel and covert field surveillance.

2.Fire Fighting Robot:

Install high-pressure water cannon and fire sensors, upgraded IP64 for high-temperature smoky hazard zones.

3.Geological Exploration Robot:

Carry gas detectors and soil sampling equipment for field terrain data collection.

4.Tunnel & Pipeline Inspection Robot:

Fit multi-dimensional sensors to detect cracks and pipeline faults in rugged tunnels.

5.EOD Emergency Robot:

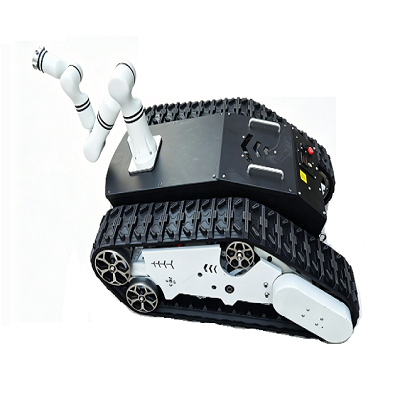

Match mechanical manipulators and bomb detectors for remote dangerous operation.

6.Agricultural Orchard Robot:

Support pesticide spraying and pest monitoring in muddy orchard terrain.

FAQ

1.What is the maximum load of WD-K2 tracked chassis?

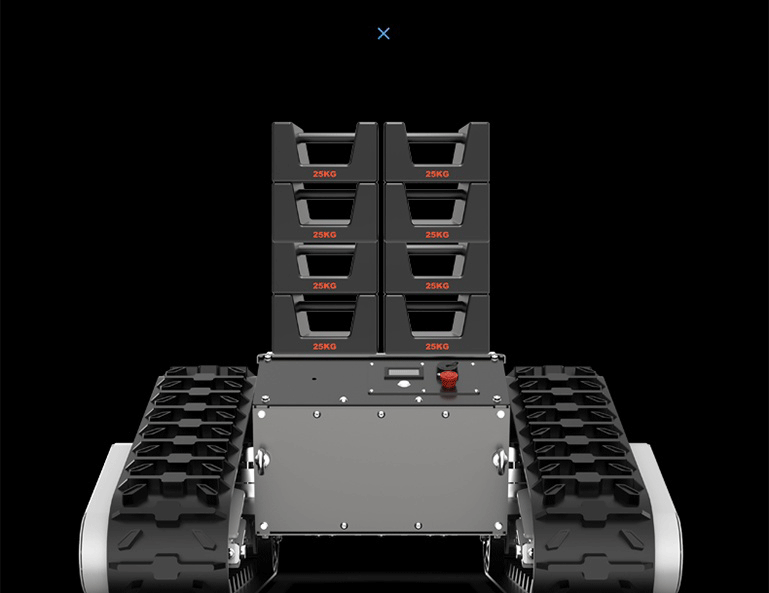

The chassis self-weight is 130KG, the max carrying capacity reaches 100KG, it can hold various cameras, sensors and operation modules.

2.Can this chassis climb stairs?

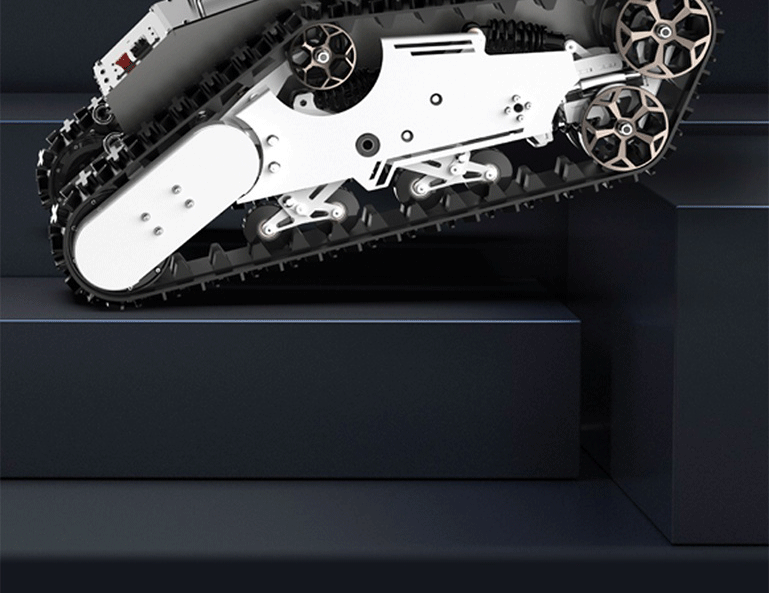

Yes, max climbing angle 30°, it can steadily climb standard stairs, vertical obstacle crossing 150mm, horizontal obstacle crossing up to 300mm.

3.Is the track durable for rough terrain?

Tracks are made of rubber embedded with Kevlar fiber, wear-resistant and tear-resistant, width 150mm for strong ground traction.
