Suction wall climbing robot

Introduction: The Challenge of High-Altitude Operations

Infrastructure maintenance, particularly for large-scale concrete structures like bridges, dams, and high-rise buildings, has long faced significant challenges. Traditional methods rely heavily on manual labor involving ropes and scaffolding, which poses severe safety risks to workers. Furthermore, human inspection is often subjective, inefficient, and difficult to standardize. To address these environmental and operational pain points, our fully autonomous suction wall climbing robot offers a transformative solution. By leveraging vacuum negative pressure adsorption principles, this system creates a secure attachment to vertical surfaces, enabling safe and precise automated operations in complex environments.

Core Technology: Advanced Negative Pressure Adsorption

At the heart of our system is the独创吸附系统 (original adsorption system). Unlike magnetic crawlers limited to steel surfaces, the suction wall climbing robot is designed specifically for the vast majority of infrastructure which consists of concrete. The mechanism generates a negative pressure relative to atmospheric pressure between the robot and the wall surface. This technology allows the robot to firmly adhere to various material surfaces, ensuring stability even during contact-based tasks. Whether operating indoors or outdoors, the robot maintains performance across a wide working temperature range of -20°C to +50°C, making it adaptable to diverse global climates.

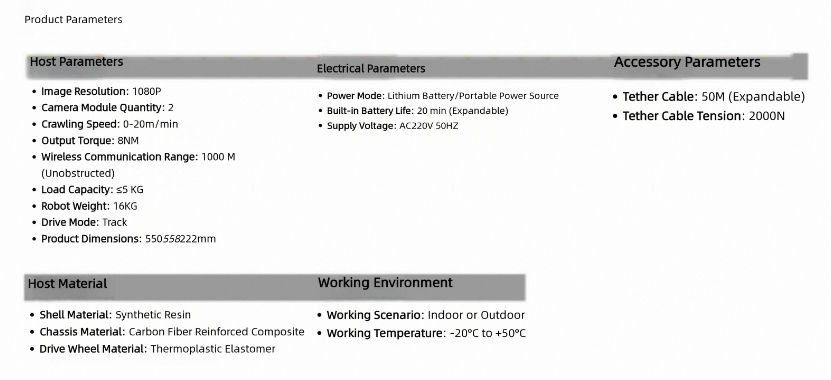

Key Features and Technical Specifications

The suction wall climbing robot is built for durability and intelligence. Constructed with a synthetic resin shell and a carbon fiber reinforced composite chassis, it balances lightweight mobility (16KG total weight) with robust structural integrity. Key technical highlights include:

High-Definition Vision: Equipped with 2 camera modules offering 1080P resolution, providing clear visual feedback for remote operators.

Agile Mobility: Capable of climbing speeds from 0 to 20m/min with an output torque of 8NM, allowing it to navigate vertical obstacles efficiently.

Extended Operation: Powered by lithium batteries or mobile power sources, it offers 20 minutes of continuous operation (expandable), supported by a 50M tether cable (expandable) with 2000N tension resistance.

Robust Connectivity: A wireless communication range of up to 1000M (unobstructed) ensures real-time control and data transmission.

Intelligent Systems and Data Integration

Beyond physical climbing, this robot serves as a smart data terminal. It features an intelligent integrated control system where "everything is under control." The spatial positioning system ensures traceability of the inspection path. Crucially, the robot acts as a node in a larger data ecosystem. It aggregates data from its onboard tools and its own operational status into a unified platform. This facilitates the creation of "Structural Health Archives" and enables big data analysis for predictive maintenance. The modular design allows users to swap payloads easily, adapting the suction wall climbing robot for cleaning, grinding, or detailed crack detection.Applications: Transforming Contact-Based Workflows

The versatility of the suction wall climbing robot extends across multiple industries requiring contact-based automation. It is ideal for:Safety-Critical Inspections: Replacing humans in high-risk高空 (high-altitude) zones to eliminate fall hazards.Repetitive Tasks: Performing mechanical, repetitive scanning or cleaning with higher consistency and precision than human workers.Complex Environments: Operating on rough concrete surfaces where other adhesion methods might fail.
