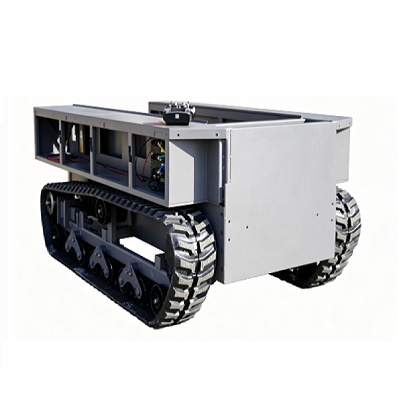

Universal Crawler Chassis for Agricultural Machine

Product Parameter Information of WD-K9

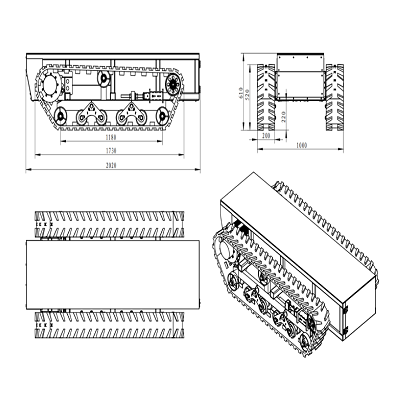

Dimensions (Length × Width × Height)：2020±5*1000±5*610±5mm

Rated Power：2*10000W

Motor Voltage：96V/72V

Running speed：0-4.5Km/h

Chassis weight：600KG

Rated Load Capacity：1050KG

Ground Clearance：210±10mm

Rated obstacle-crossing capacity：200mm (300mm available)

Rated Climbing Gradient：20° (Power requirements met; refer to ground friction coefficient)

Rated span：380mm (check the center of gravity)

Core Selling Points

1.Max 1050KG heavy agricultural load with dual 10000W high-power motors, total power upgradable to 30KW and 34 reduction ratio. Stable climbing at 20° slope under full load with sufficient power for muddy field seeding and fertilizing tasks.

2.All electrical modules with independent waterproof design, standard IP54 and optional IP64 upgrade, supporting all-weather operation in irrigated, muddy and dewy farmland.

3.0-4.5km/h stepless adjustable speed for precise low-speed spraying and fast cross-field transfer. Standard 200mm obstacle crossing, customizable up to 300mm to surmount field ridges.

4.Full parameter customization available: dimension, motor power, speed, load and obstacle crossing can be adjusted to fit orchard, paddy field, greenhouse and livestock disinfection scenarios.

Derivative Robots

1.Paddy field seeding & fertilizing robot:

Carry seed and liquid fertilizer tanks for automatic sowing on soft muddy rice fields.

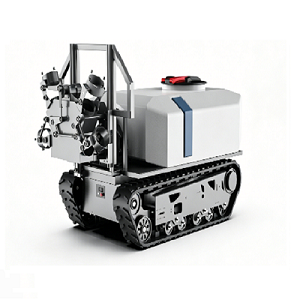

2.Orchard pesticide spraying disinfection robot:

Narrow body fits fruit tree rows, remote control pesticide spraying to replace manual labor.

3.Greenhouse inspection & picking assistant robot:

Walk through greenhouse aisles with vision camera for fruit picking and environmental monitoring.

4.Garden mowing & pruning crawler robot:

Fit sloped grassland with mower and hedge trimmer for large-area landscape maintenance.

FAQ

1.Q: What is the maximum load of WD-K9 agricultural crawler chassis?

A: The chassis weighs 600KG without battery, rated load reaches 1050KG, enough for large fertilizer tanks and agricultural working modules.

2.Q: Can I customize chassis size, power and load according to my farm machine?

A: All dimensions, motor power, speed and load parameters support personalized customization.

3.Q: What’s the maximum total electric drive power we can customize?

A: Dual-side motor system can be configured up to total 30KW, we also support small-power low-cost schemes.
