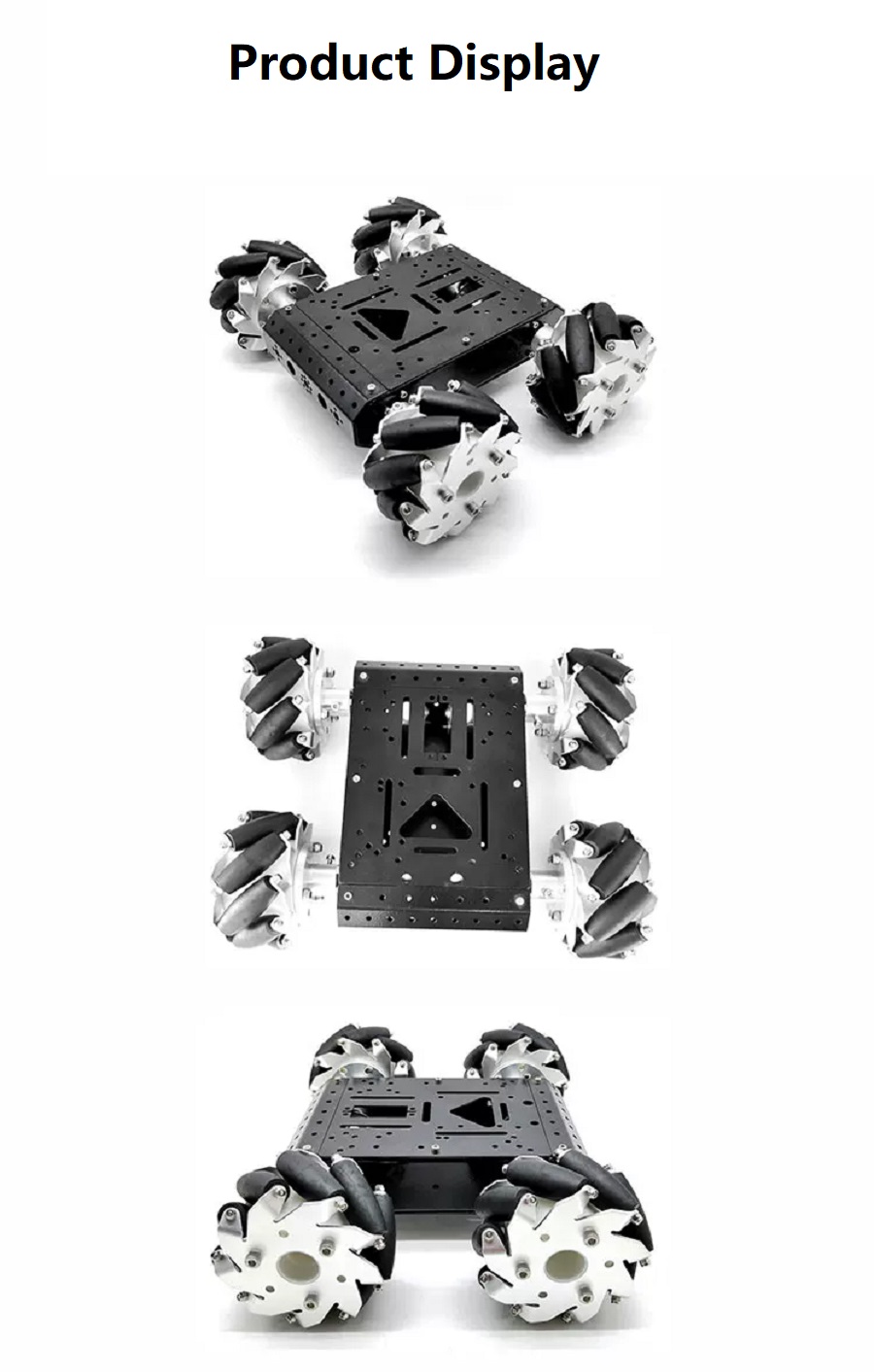

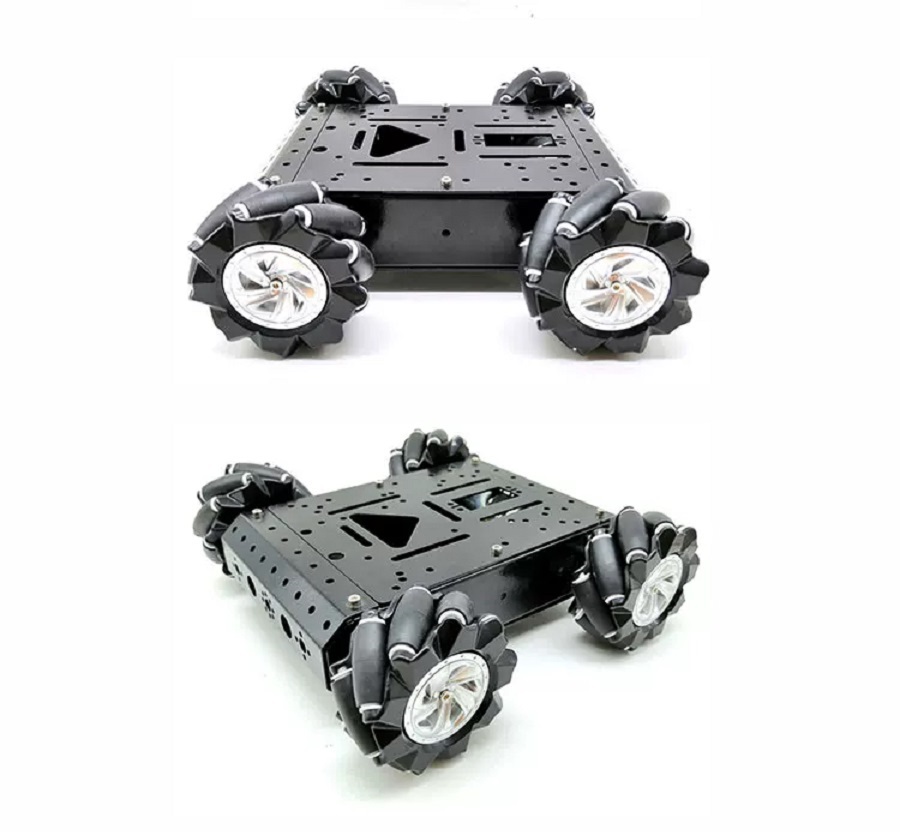

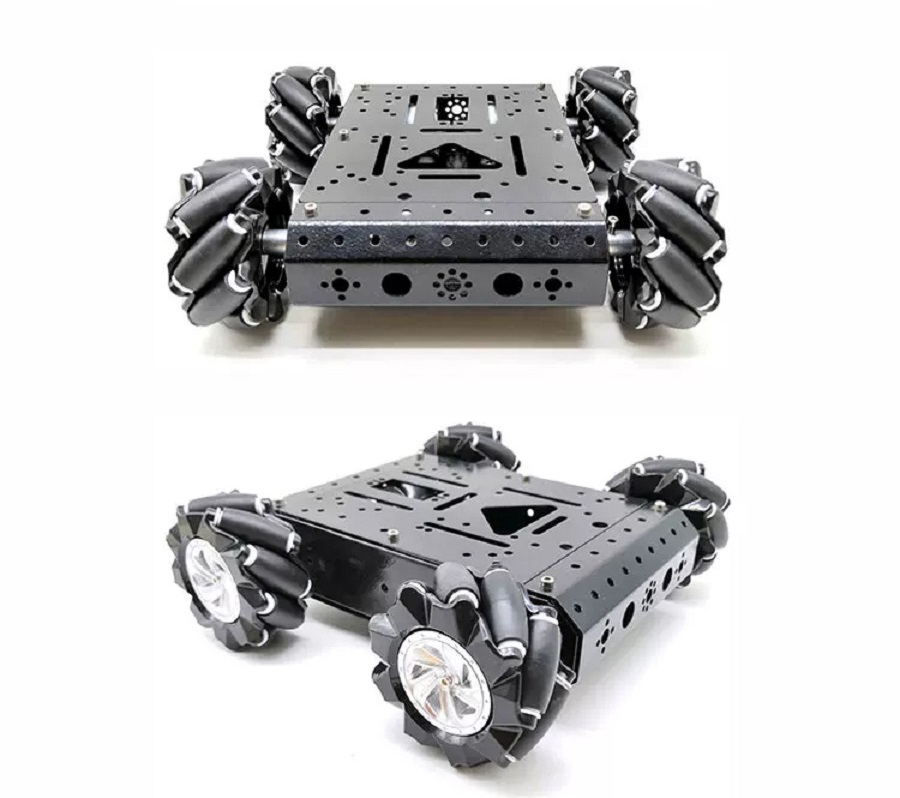

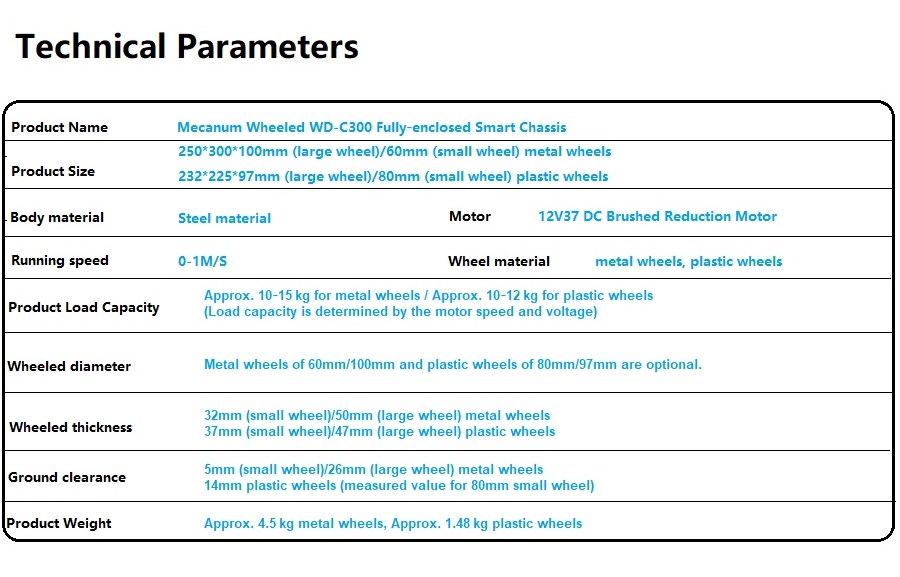

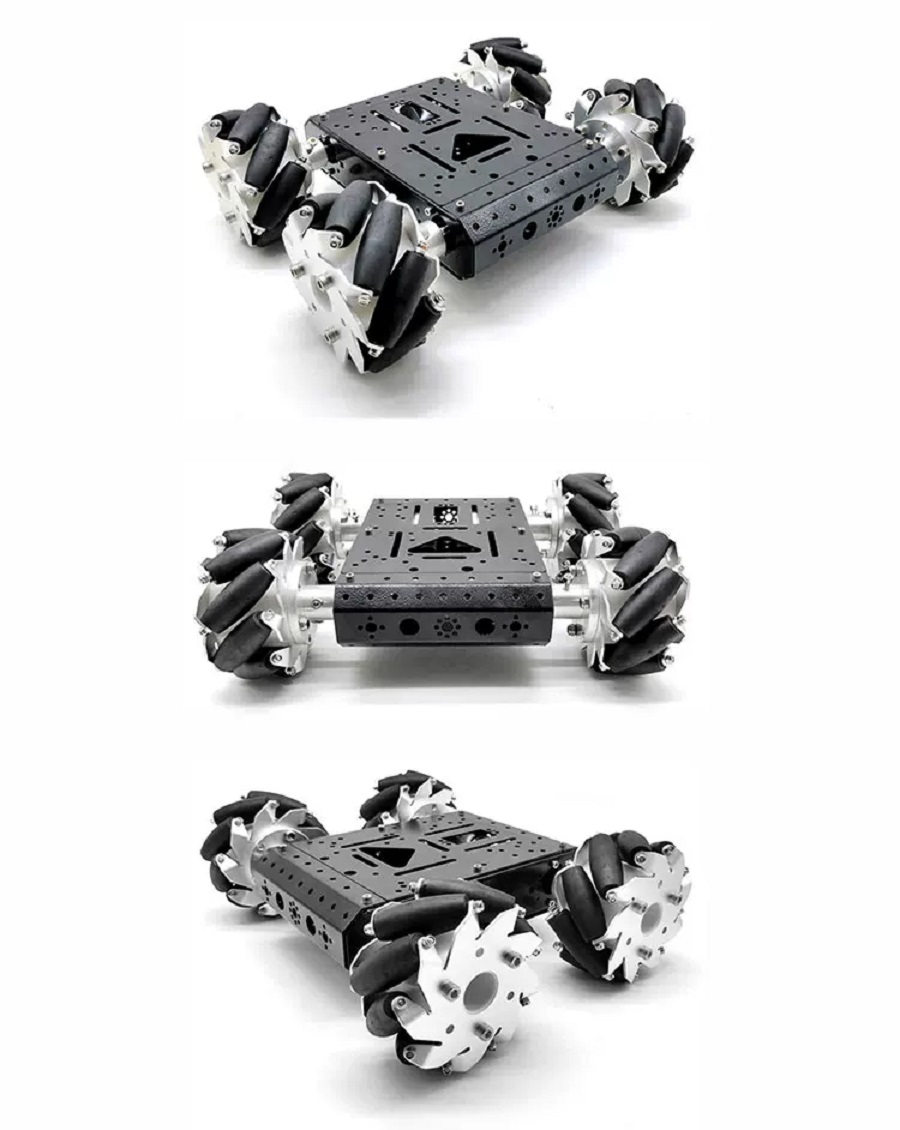

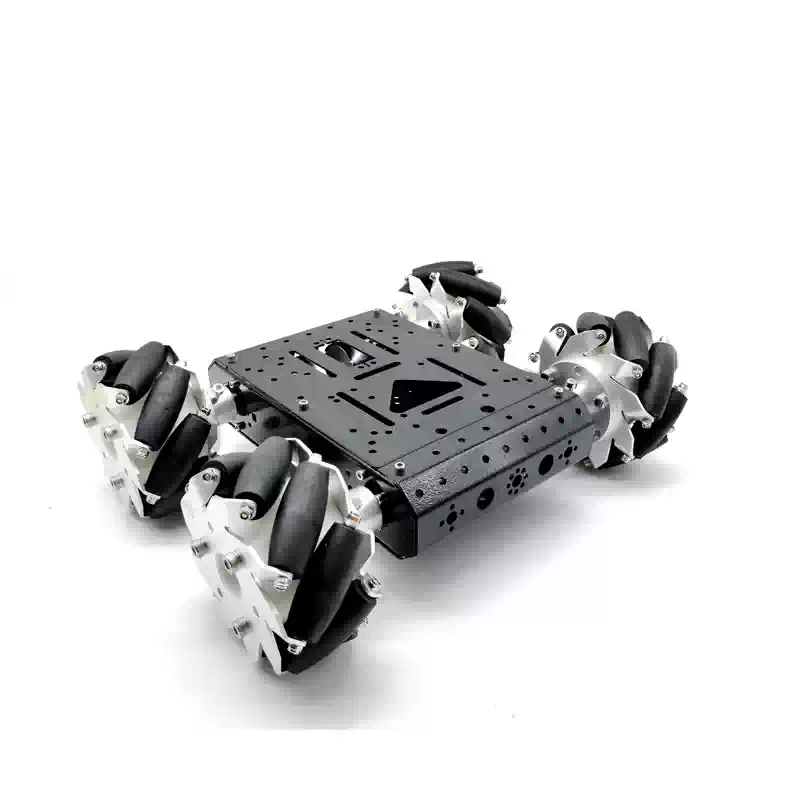

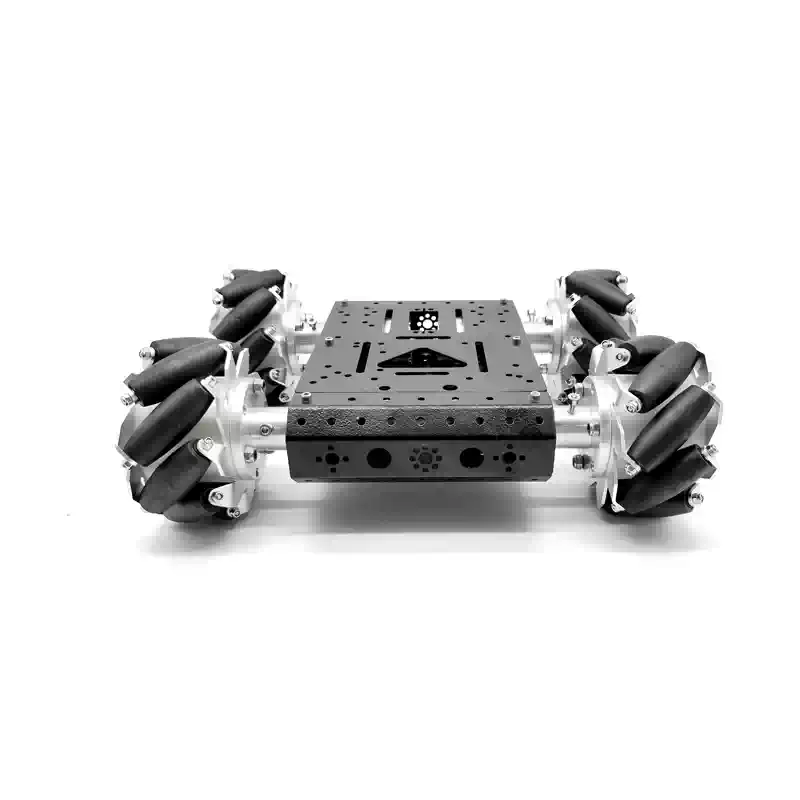

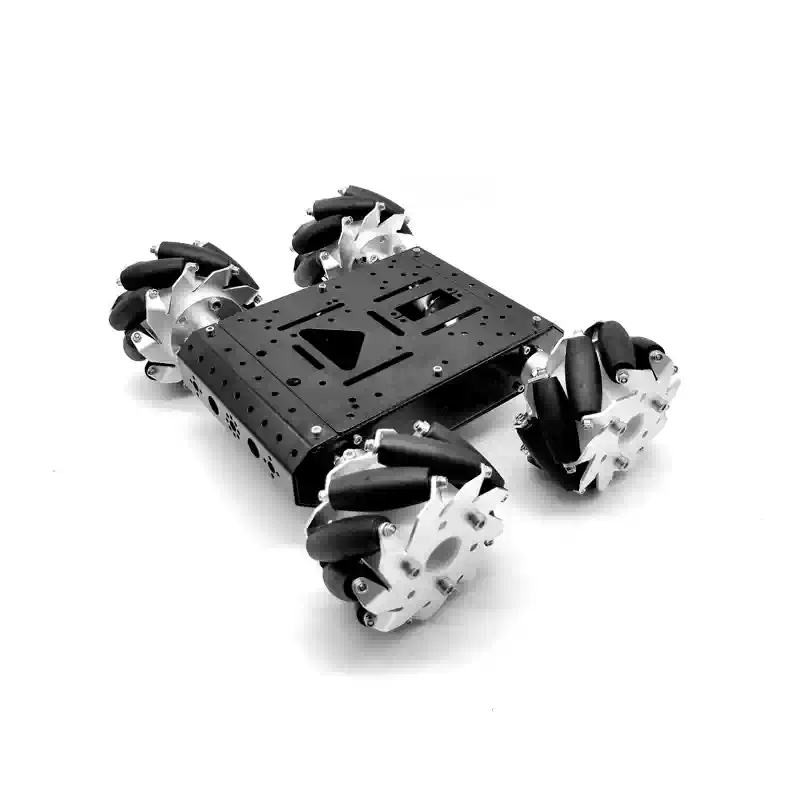

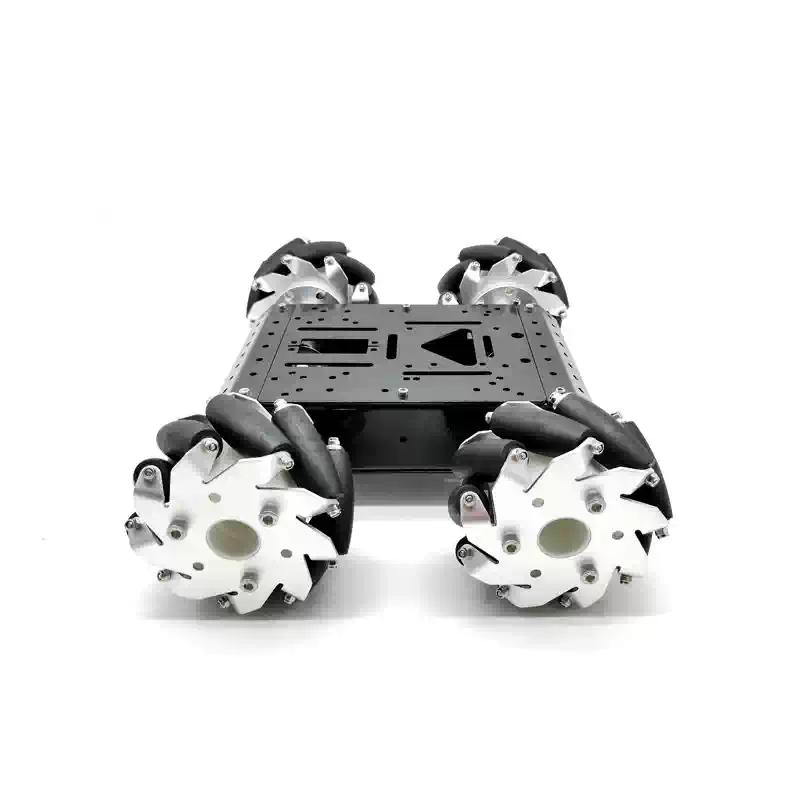

Wheeled Mobile Robot Chassis Smart Chassis Platform

Product Advantages

1.True omnidirectional movement: Mecanum wheel structure realizes forward, backward, lateral translation, diagonal movement and in‑situ rotation, flexible movement in narrow space.

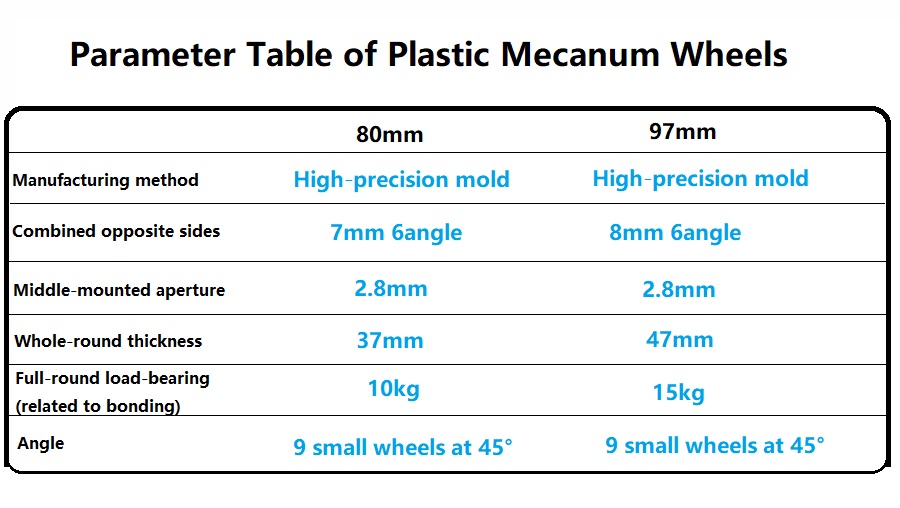

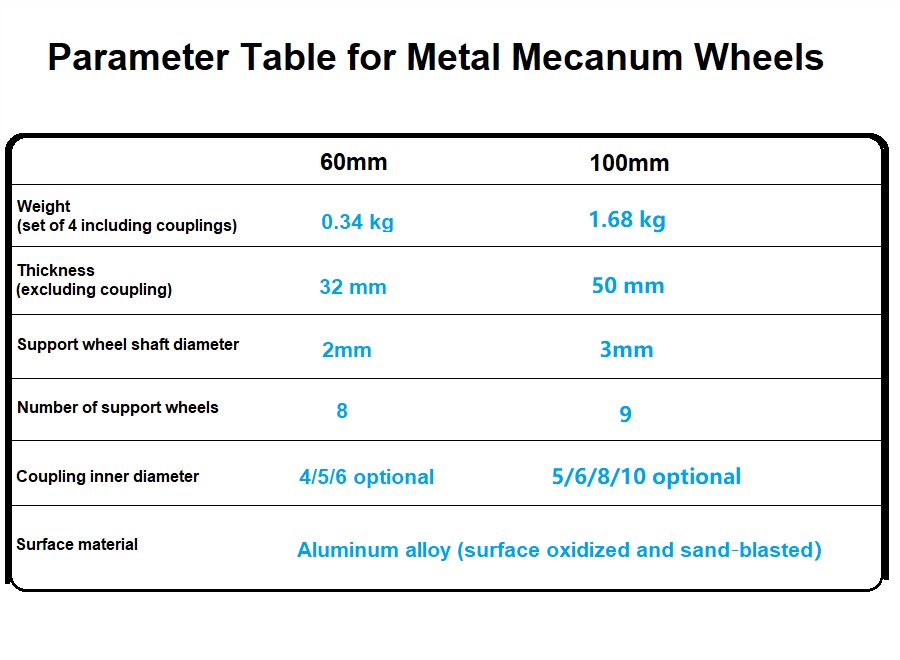

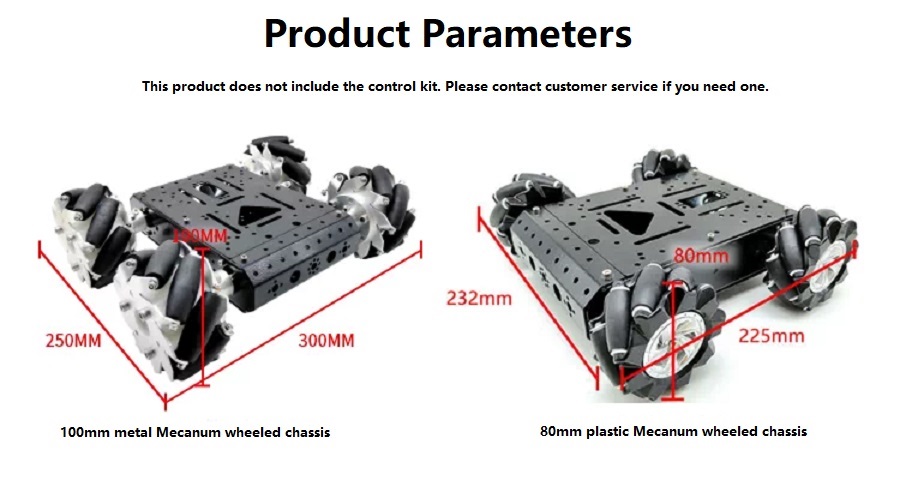

2.Two‑type wheel optional: Durable alloy metal wheels for heavy‑load use; lightweight plastic wheels for lightweight educational projects. Multiple wheel diameters for selection.

3.Steel‑material vehicle body: High‑strength steel chassis frame, stable structure, anti‑deformation for long‑time running.

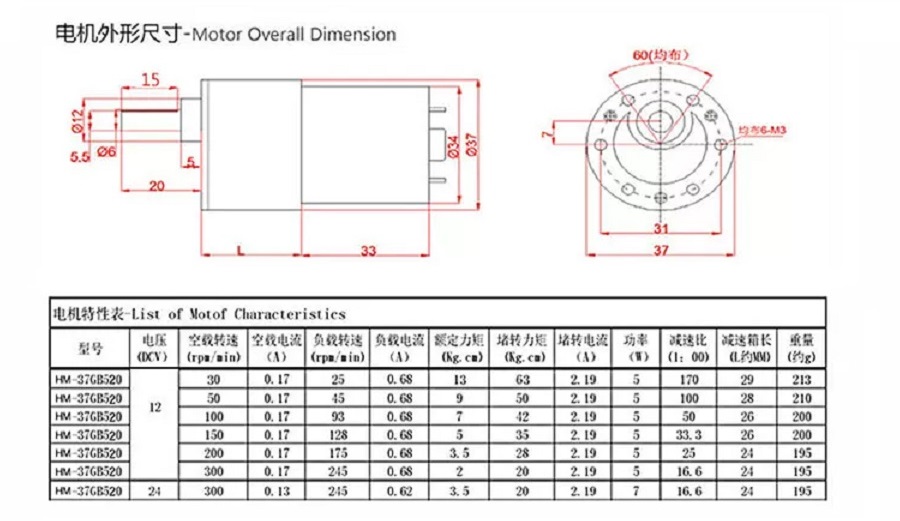

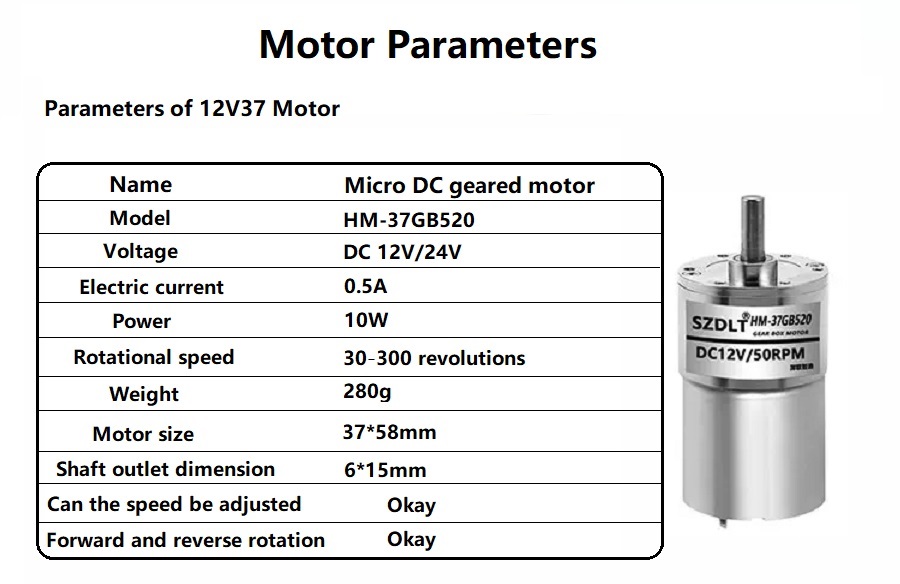

4.High‑performance DC geared motor: 12V HM‑37GB520 DC reduction motor, adjustable speed and positive‑negative rotation, stable power output.

5.Reserved rich mounting holes: Plenty of pre‑drilled mounting holes on top plate, convenient to install various upper‑layer hardware without extra cutting work.

6.Modular assembly design: Easy to assemble and maintain, convenient for replacement of wheels and motors.

Product Application Scenarios

‑ University laboratory robot teaching & experimental courses

‑ Robot competition, student DIY science and technology project

‑ Omnidirectional mobile robot algorithm research and verification

‑ Intelligent handling small robot prototype development

‑ STEM education, robot training kit

‑ Indoor inspection robot carrier platform

‑ Secondary development of small automated guided robot

FAQ

Q1: Does WD‑C300 come with control board and remote controller?

A: The standard chassis does NOT include control kit. Control modules can be selected as optional accessories, please consult our sales team.

Q2: What is the load capacity for metal wheels and plastic wheels?

A: Metal‑wheel version rated load:10‑15kg; plastic‑wheel version rated load:10‑12kg. Actual load is affected by motor voltage and speed.

Q3: Can I replace wheels by myself?

A: Yes. Mecanum wheels are easy to disassemble. Multiple‑size metal or plastic wheels are interchangeable for this chassis.

Q4: What motor is equipped for WD‑C300?

A: Standard equipped with HM‑37GB520 12V DC brushed reduction motor, speed adjustable, support forward and reverse rotation.

Q5: Is it suitable for student robot competition?

A: Absolutely. Compact size, omnidirectional moving capability, easy secondary development, widely used for university robot contests and STEM projects.

Q6: Can I install lidar and sensors on this chassis?

A: Yes. The top plate reserves abundant mounting holes, users can mount various sensors and peripheral devices.
