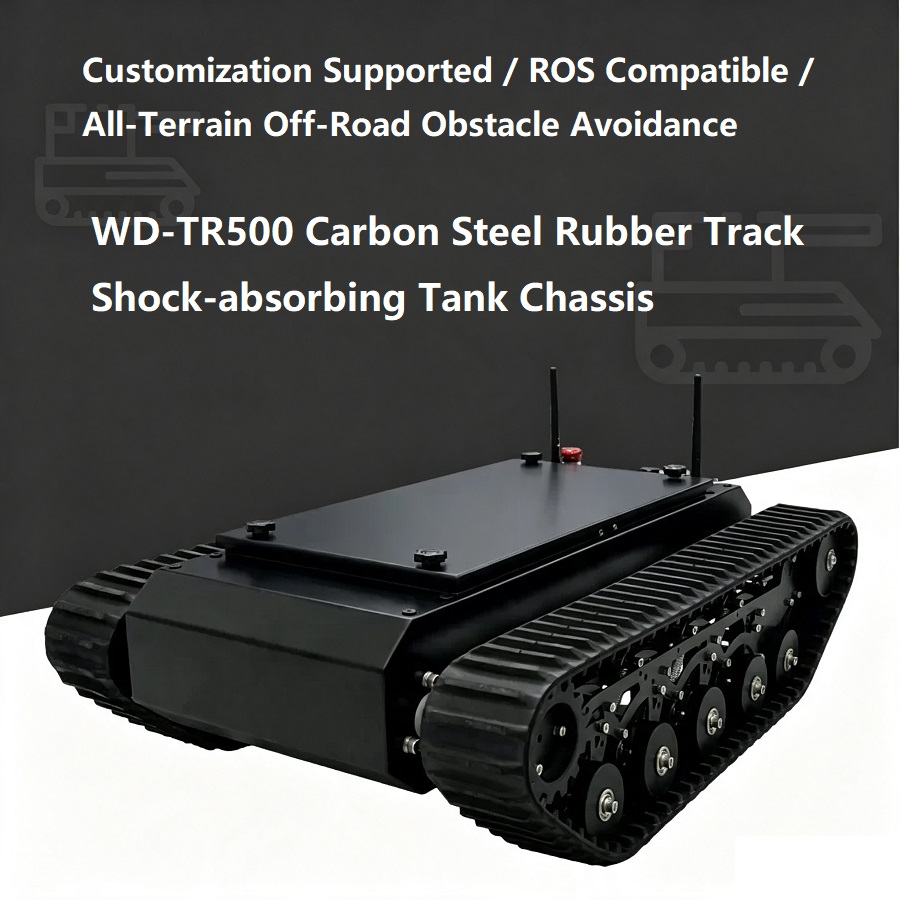

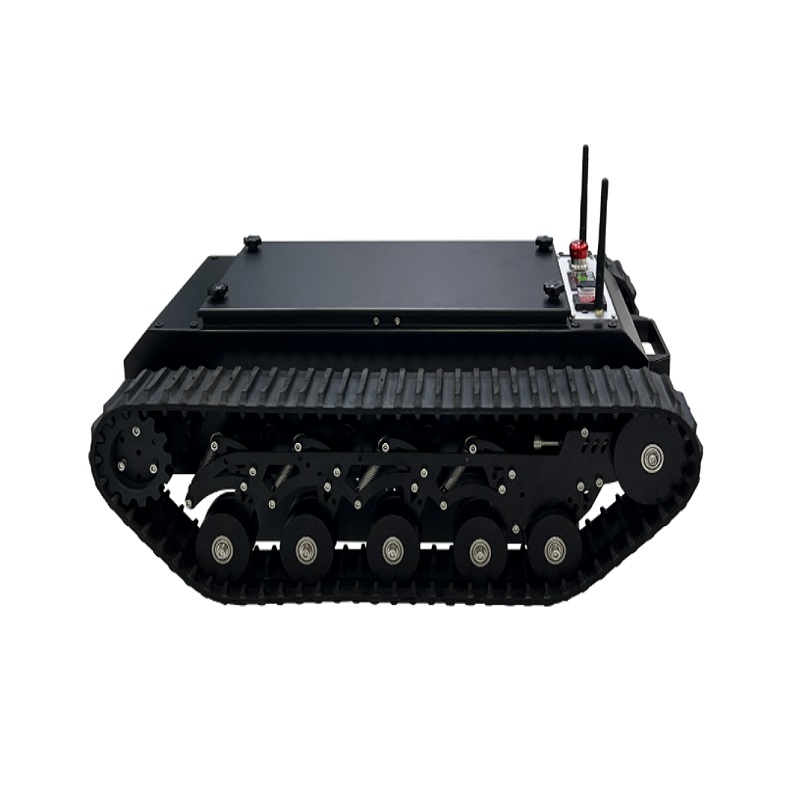

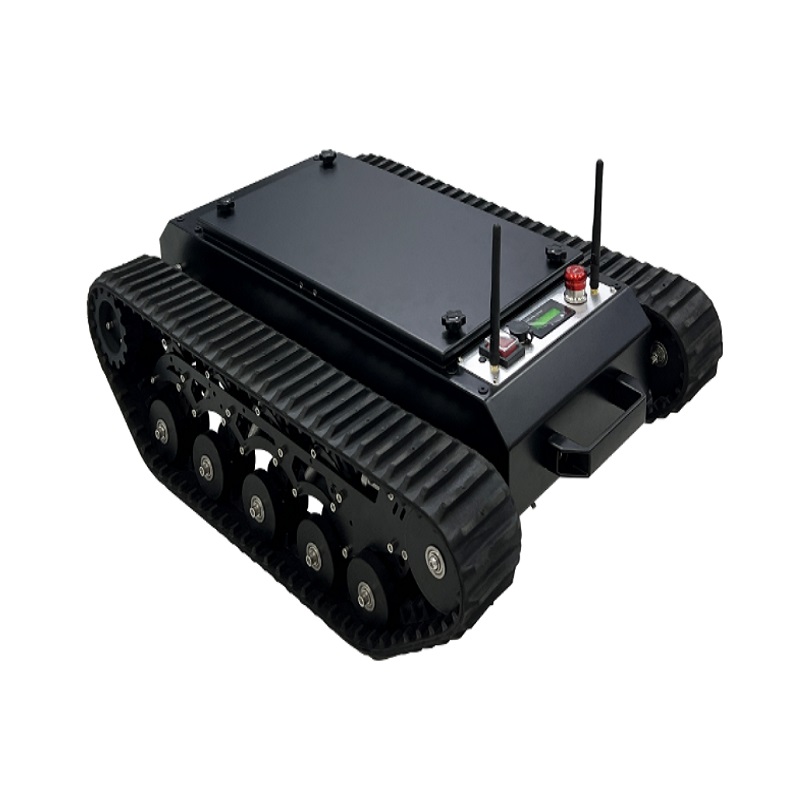

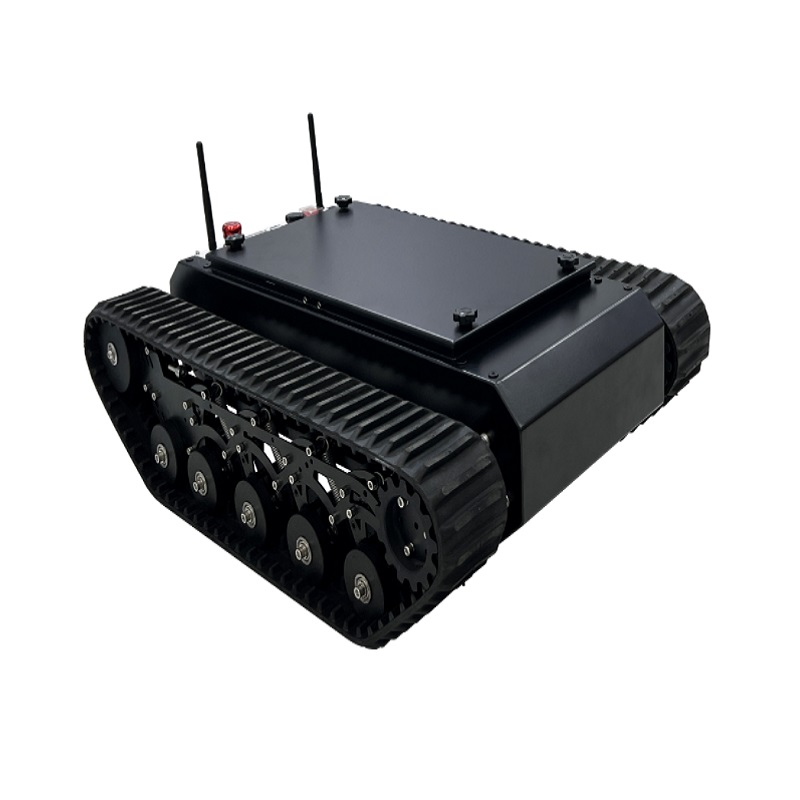

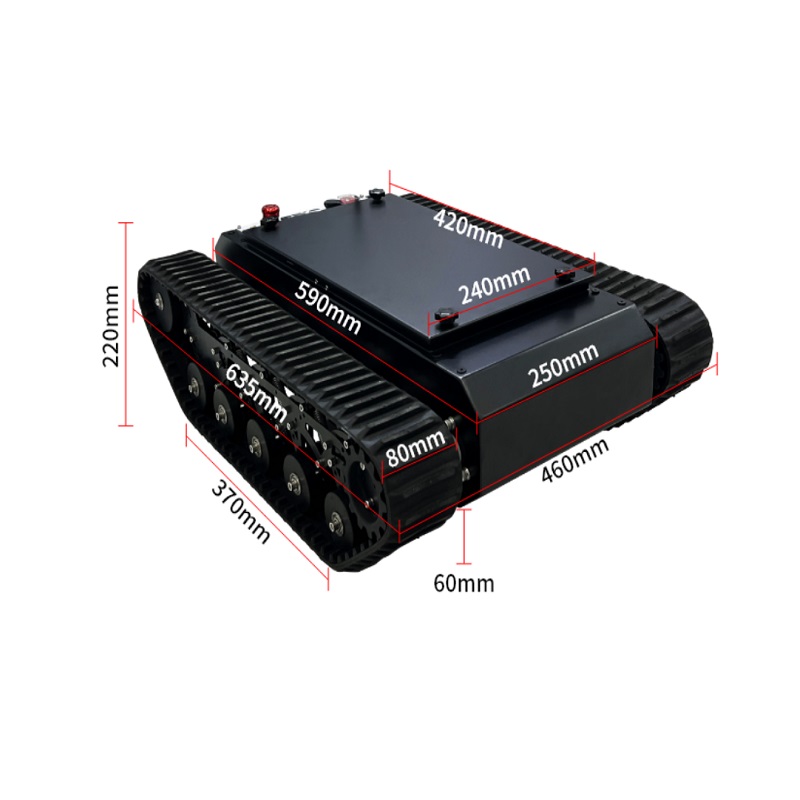

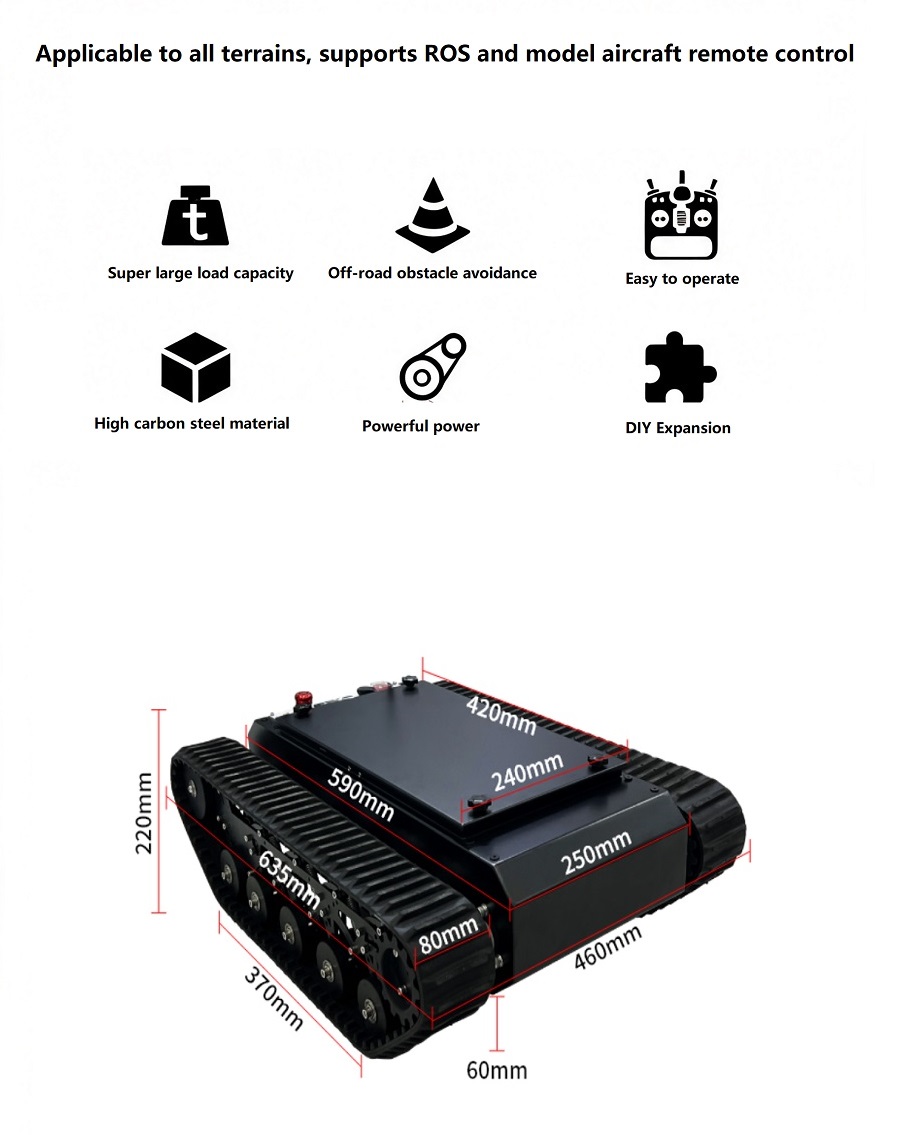

WD-TR500 heavy-load rubber tracked robot chassis is a rugged crawler mobile platform designed for ROS development, industrial inspection and unmanned vehicle research. The vehicle body adopts high carbon steel with electrostatic powder coating, fitted with rubber tracks embedded with Kevlar fiber tensile layers.

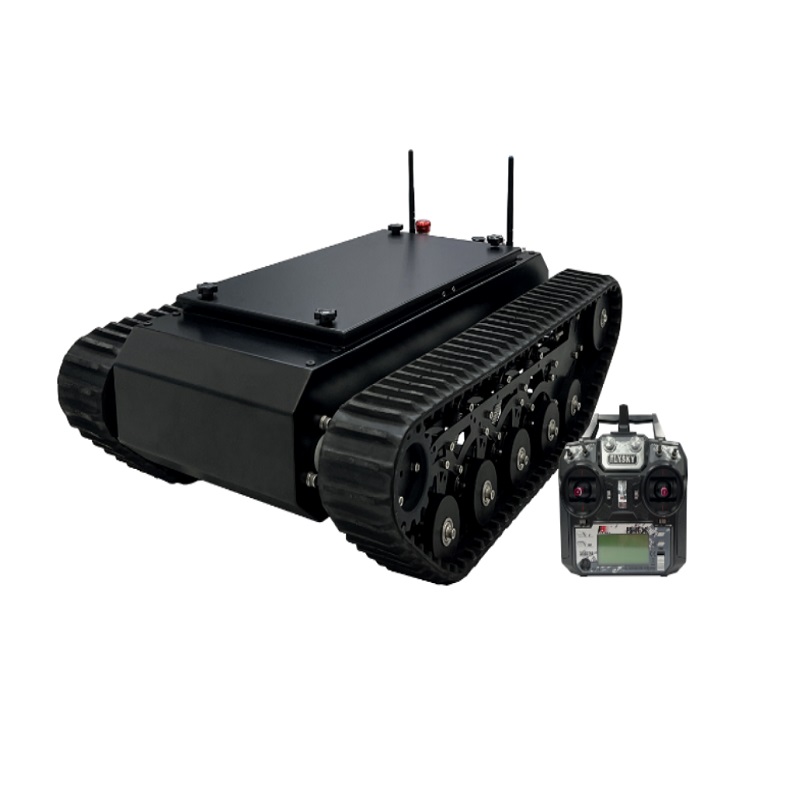

Equipped with 10 groups of independent suspension shock absorption structures, it delivers excellent terrain adaptability. Max load reaches 50kg, rated load 30kg, climbing gradient up to 35°. Standard 2.4G remote control system, optional incremental optical encoder version, fully reserved interfaces for ROS algorithm development, sensor installation and upper equipment integration. Widely applied in industrial inspection, environmental monitoring, robot research and education projects.
1.Strong Heavy Load Capacity
Rated load 30kg, maximum load up to 50kg. High carbon steel frame structure, stable load-bearing performance, capable of carrying various sensors, computing hosts and detection equipment.
2.Independent Suspension Shock Absorption
10 sets of independent suspension shock-absorbing components. Effectively buffer vibration when passing uneven roads, stairs and undulating terrain, protecting onboard equipment and keeping stable movement.
3.Wear-Resistant Reinforced Rubber Tracks
Rubber tracks built-in Kevlar fiber tensile layers, strong tensile resistance, wear-resistant and anti-tearing. Low noise during operation, good grip on concrete, soil and gravel roads.
4.Outstanding All-Terrain Passability
Maximum climbing gradient 35°, vertical obstacle crossing height ≤100mm. Adapt to factory roads, outdoor rugged ground, slopes and complex terrain.
