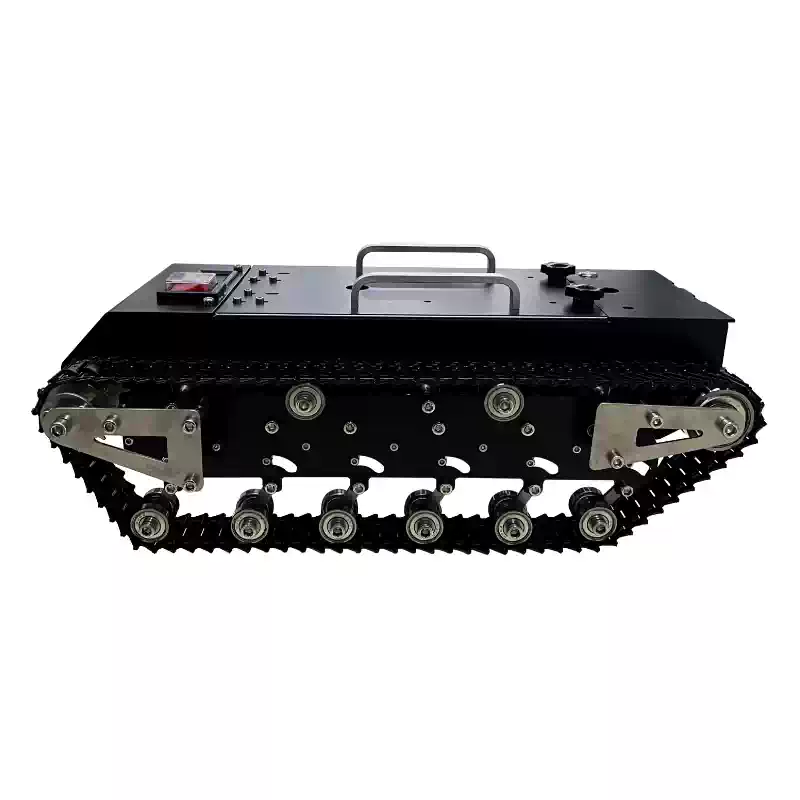

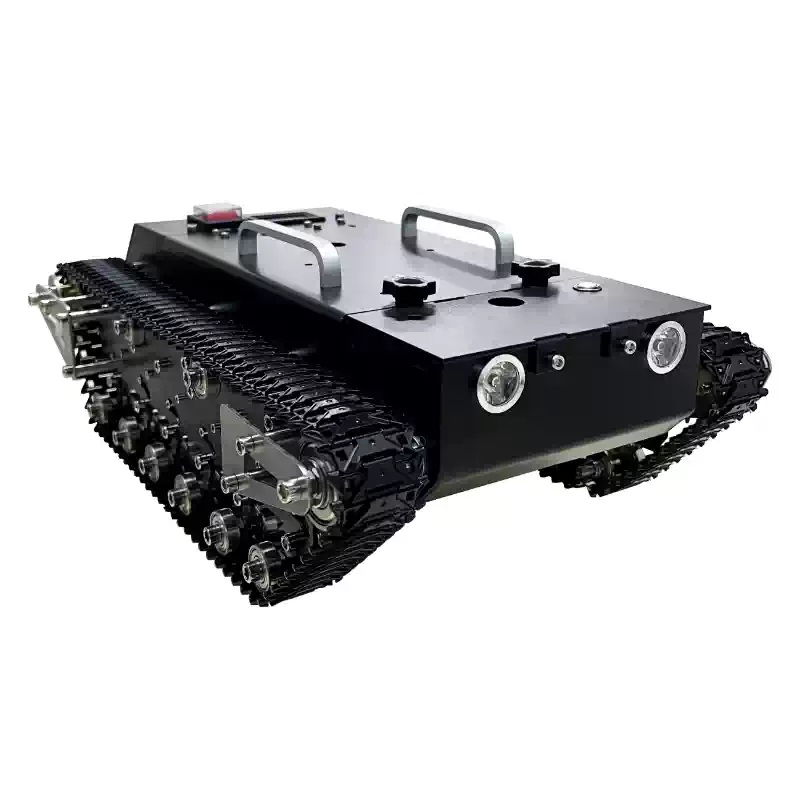

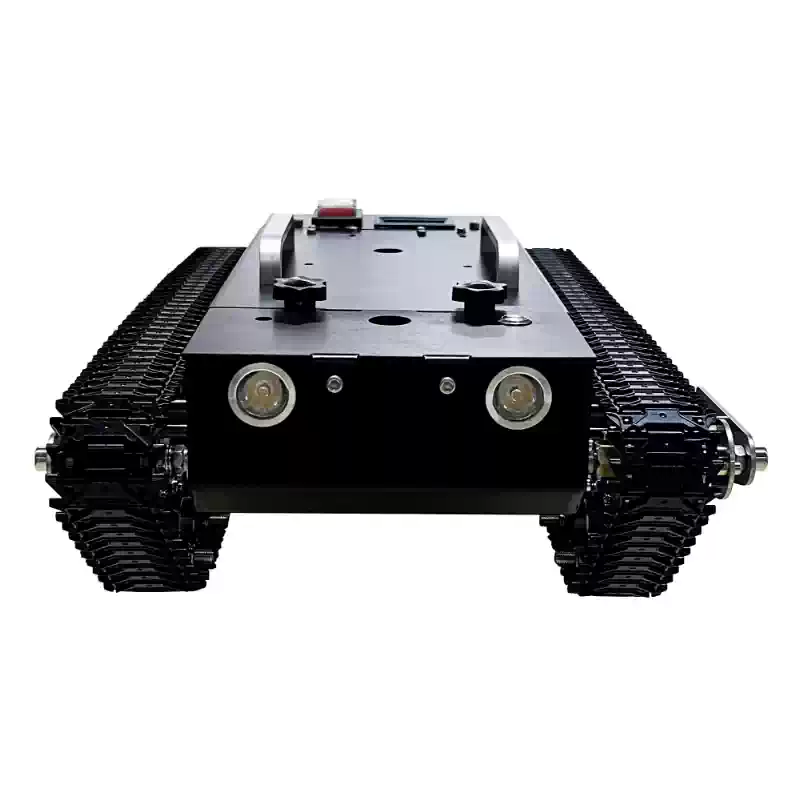

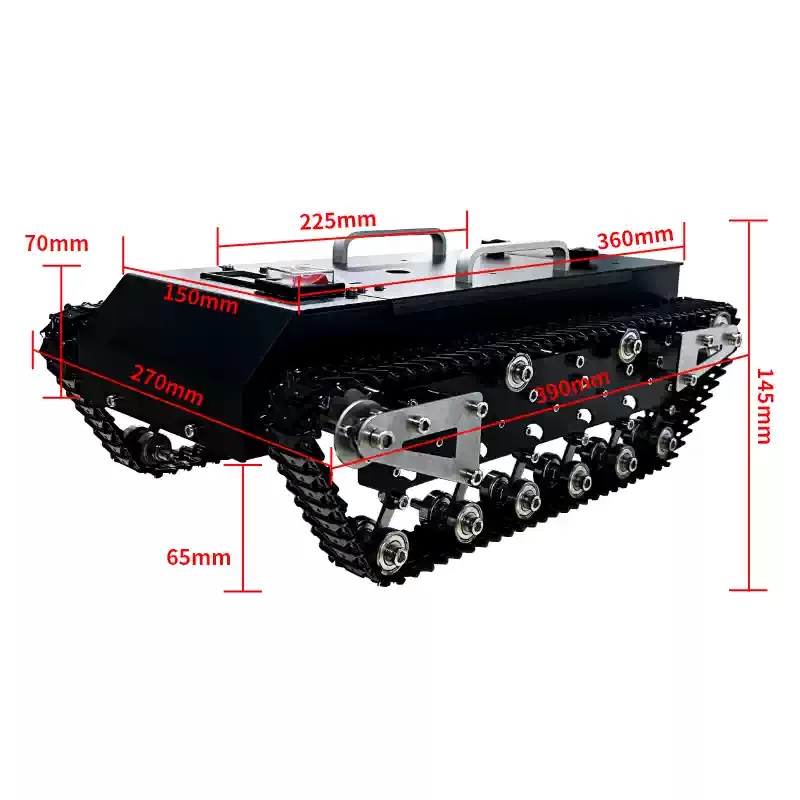

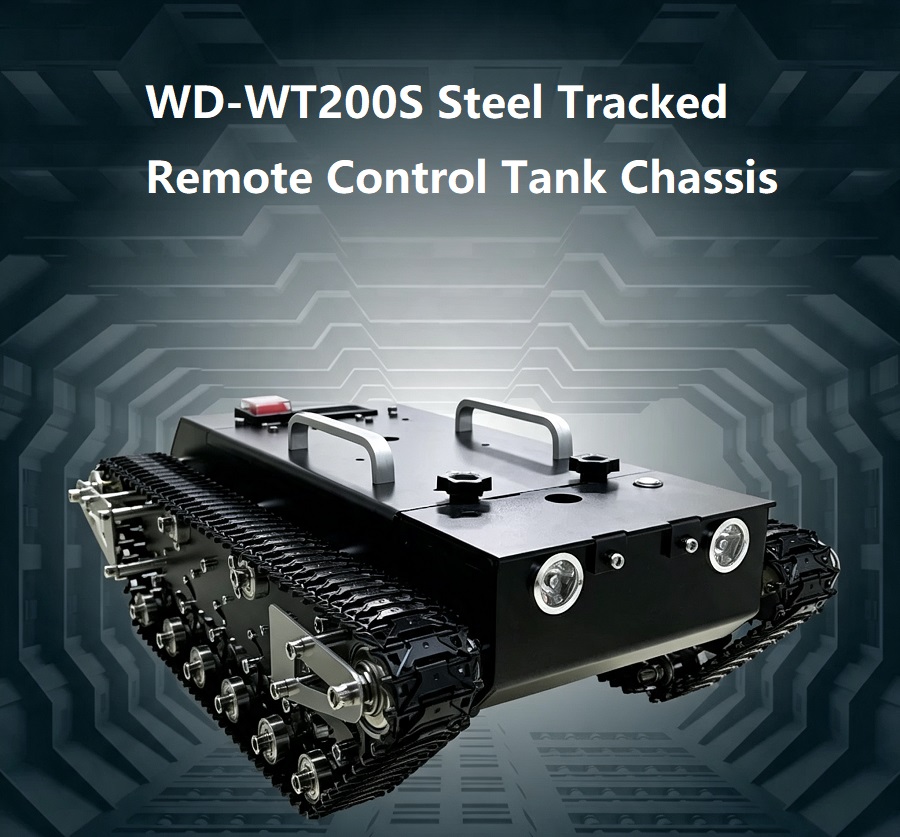

All Metal Tracked Off-Road Chassis

Core Product Advantages

1. Full Metal Industrial-Grade Durable Structure

The chassis frame adopts high-strength steel plate with anti-corrosion baking paint treatment, which is anti-collision, wear-resistant and rust-proof. Equipped with detachable zinc alloy tracks, different from ordinary plastic tracks, it has stronger tensile resistance, impact resistance and long service life, adapting to long-term outdoor complex working environments.

2. Independent Suspension Shock Absorption System

Each side is equipped with 6 sets of independent suspension shock absorption structures, which can effectively buffer jolts and vibrations when passing through gravel roads, lawns, uneven ground and small steps. It ensures stable operation of the chassis and protects precision onboard equipment such as sensors and industrial cameras from damage, greatly improving the stability of all-terrain driving.

3.Excellent Off-Road & Heavy-Load Performance

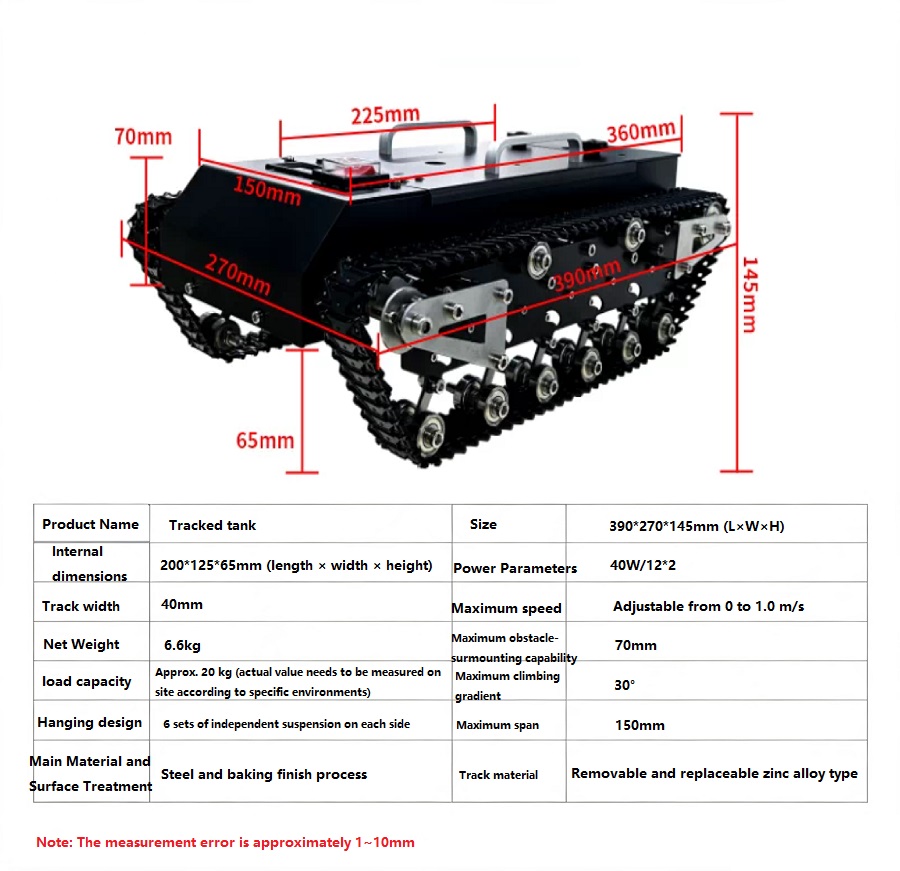

With a maximum load of 20kg and vertical obstacle crossing height up to 70mm, the chassis can climb a maximum slope of 30°. It can freely cross small obstacles, ridges and undulating terrain, perfectly adapting to indoor flat ground and outdoor complex scenes such as dirt roads, gravel roads and lawns. The driving speed is adjustable from 0 to 1.0m/s, balancing driving stability and operating efficiency.

4.High-Torque Power Drive System

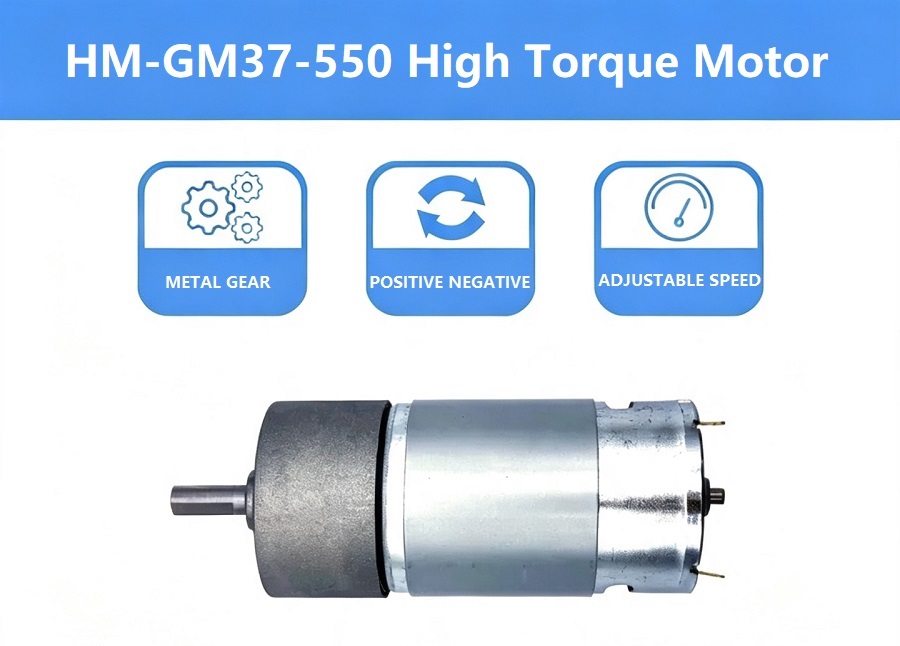

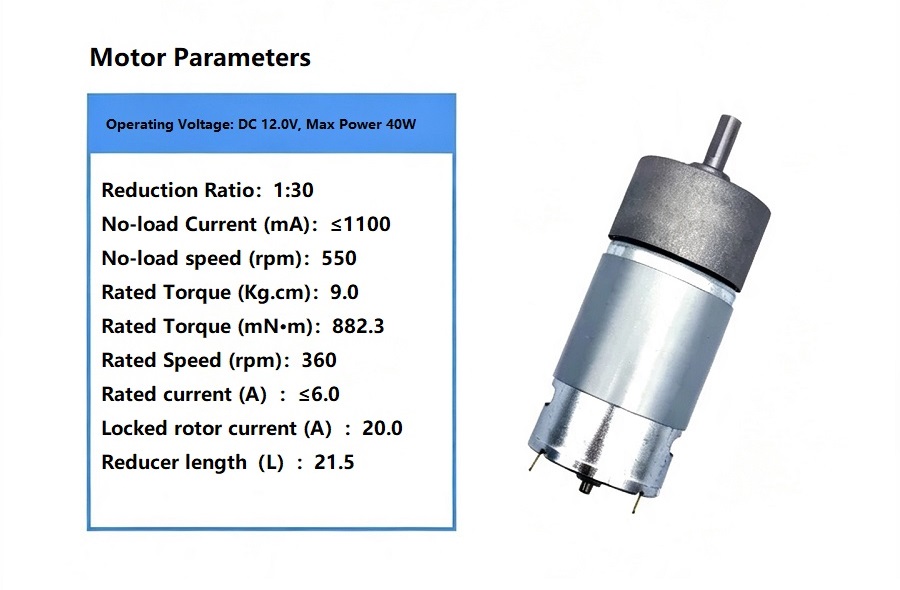

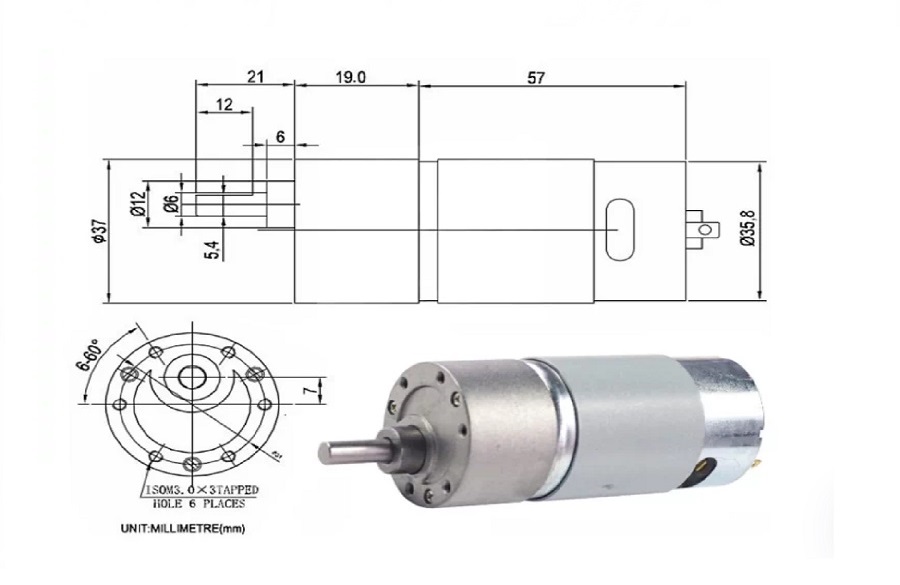

Equipped with dual 40W 12V high-power DC geared motors, with a reduction ratio of 1:30 and stable torque output. The motor has strong traction power, low heat generation and durable operation, which can easily meet heavy-load driving and long-distance off-road cruising requirements, avoiding stalling and insufficient power during task execution.

Product Application Scenarios

University Teaching & Scientific Research Experiments

Outdoor All-Terrain Patrol Inspection

Maker DIY & Robot Competition Projects

Custom Unmanned Vehicle Development

Field Detection & Auxiliary Operation
