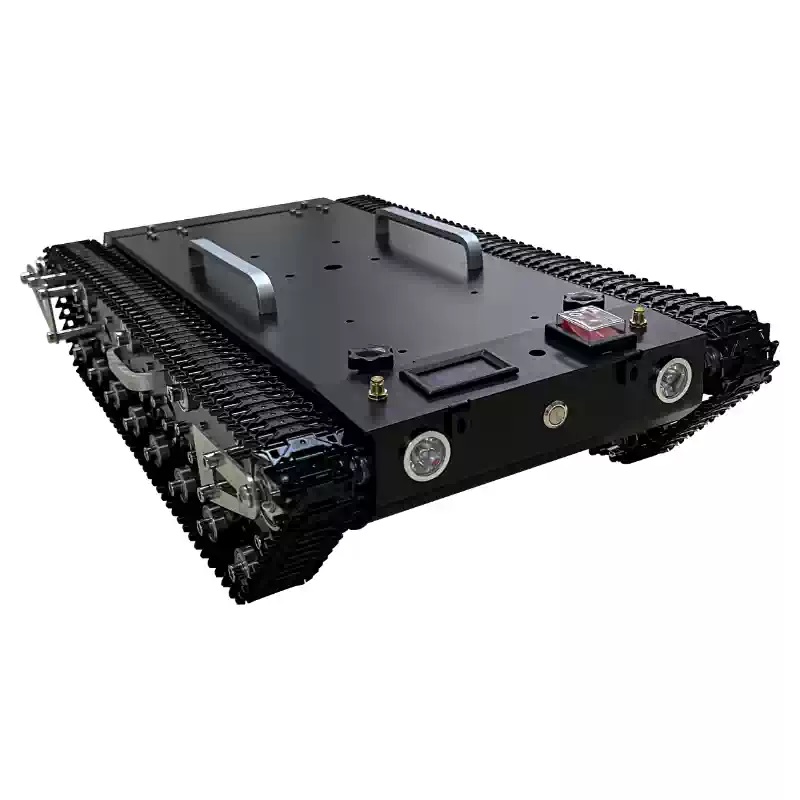

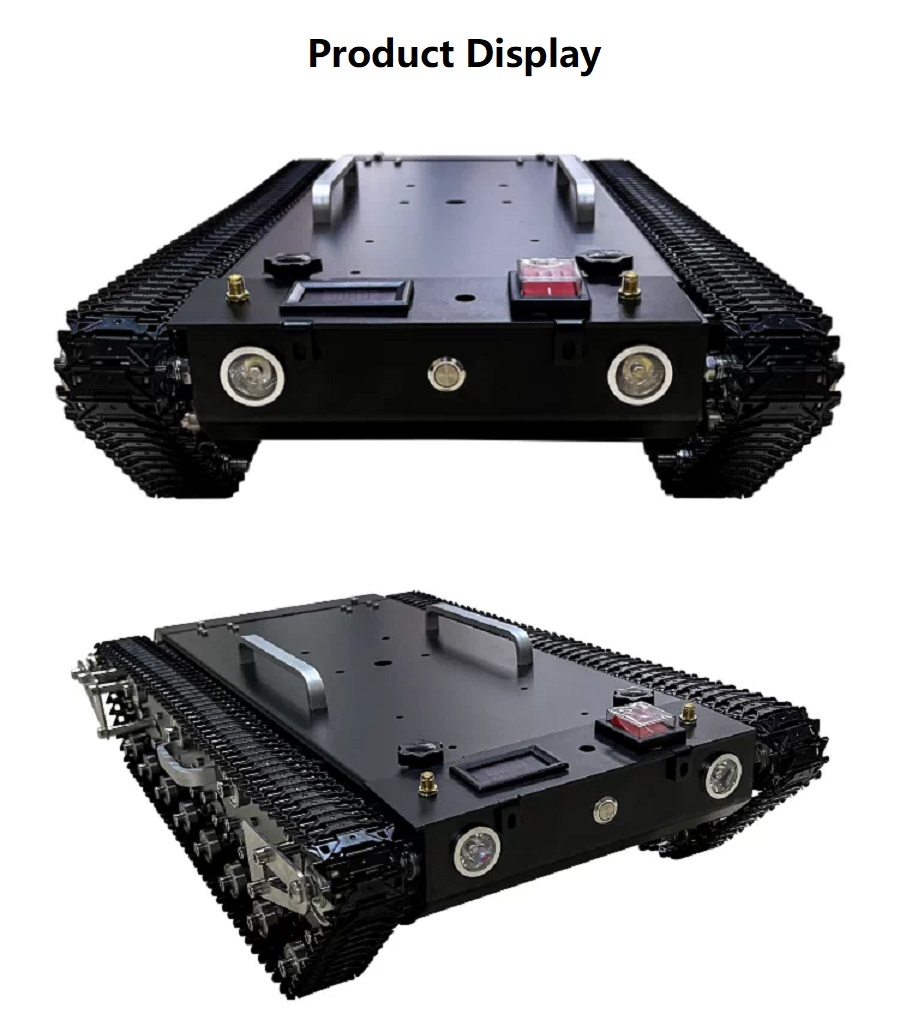

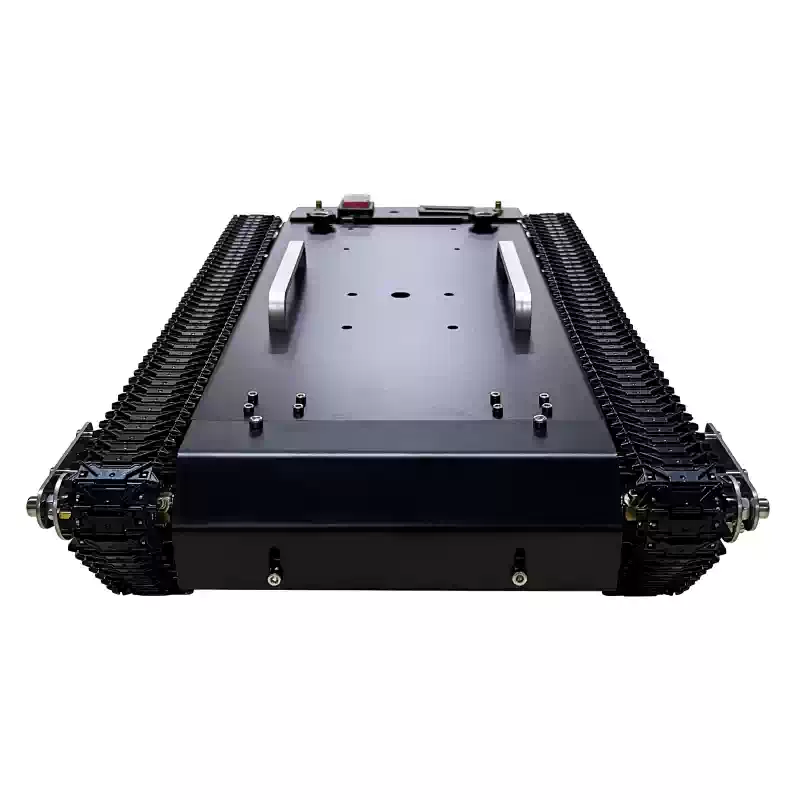

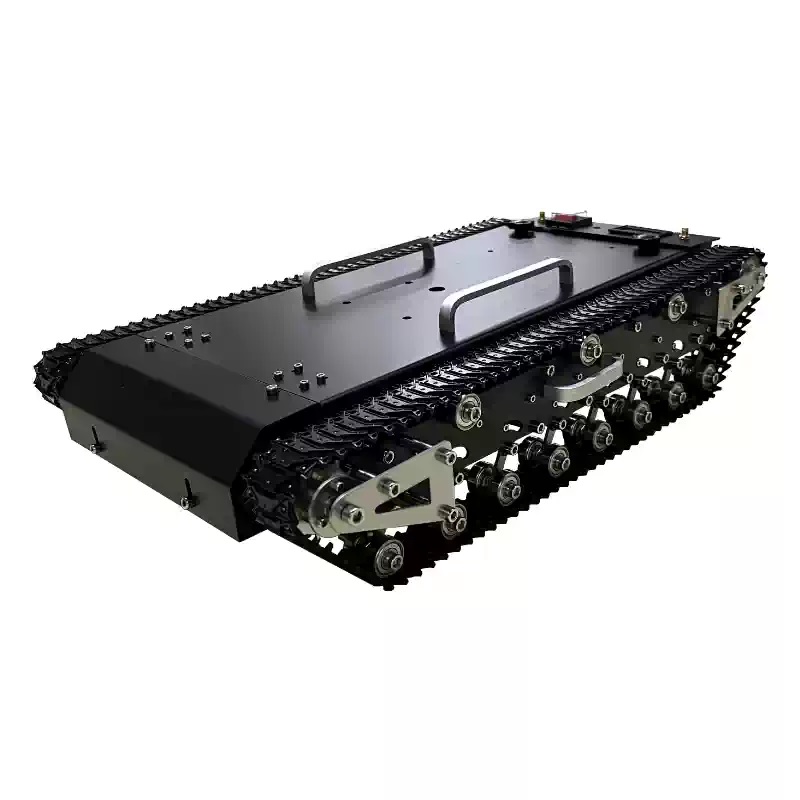

WD-WT600S heavy-duty all-metal tracked tank chassis is a rugged outdoor mobile robot development platform specially designed for complex rugged terrain. The overall frame adopts high-carbon steel material with electrostatic baking paint anti-corrosion treatment, equipped with 8 groups of independent suspension on each side, bringing excellent shock absorption performance.

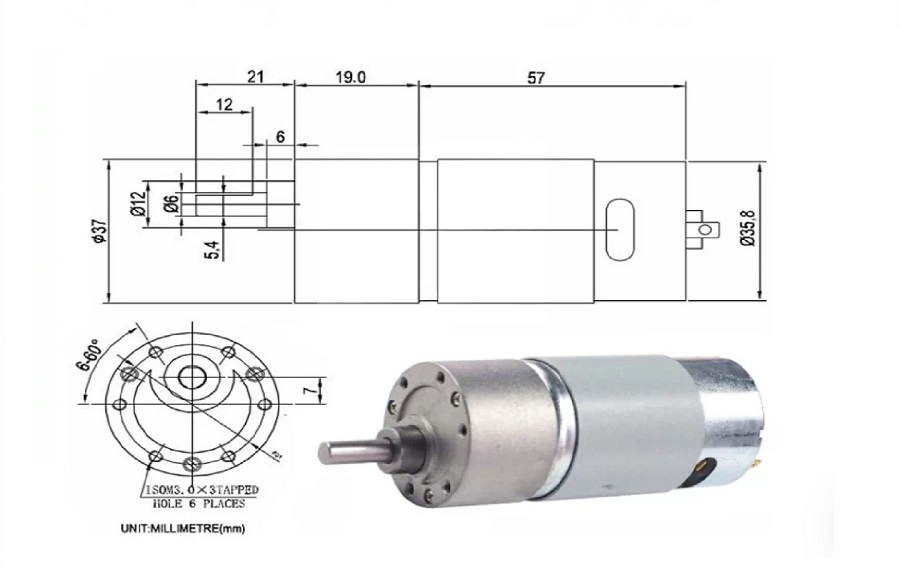

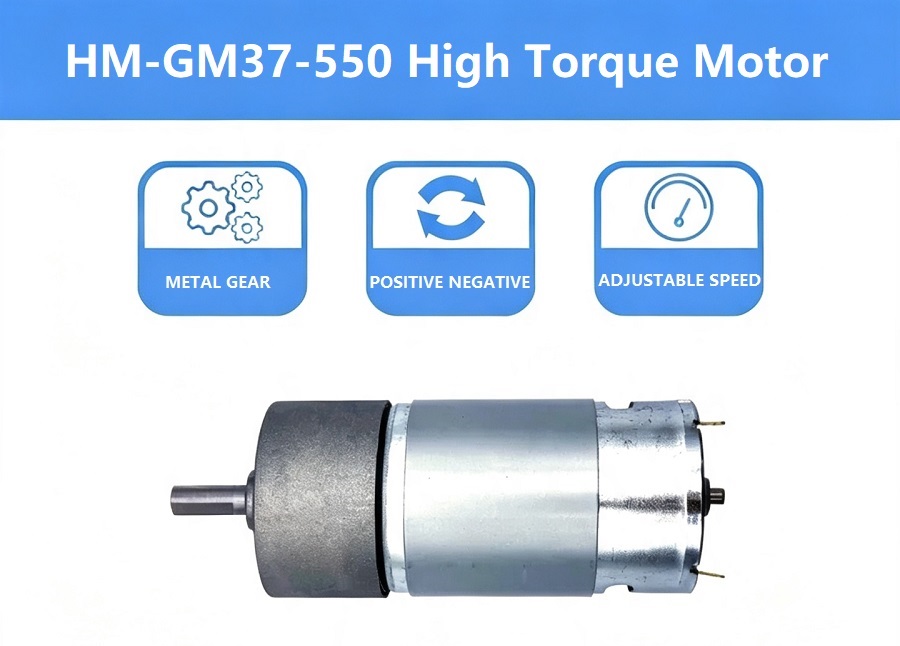

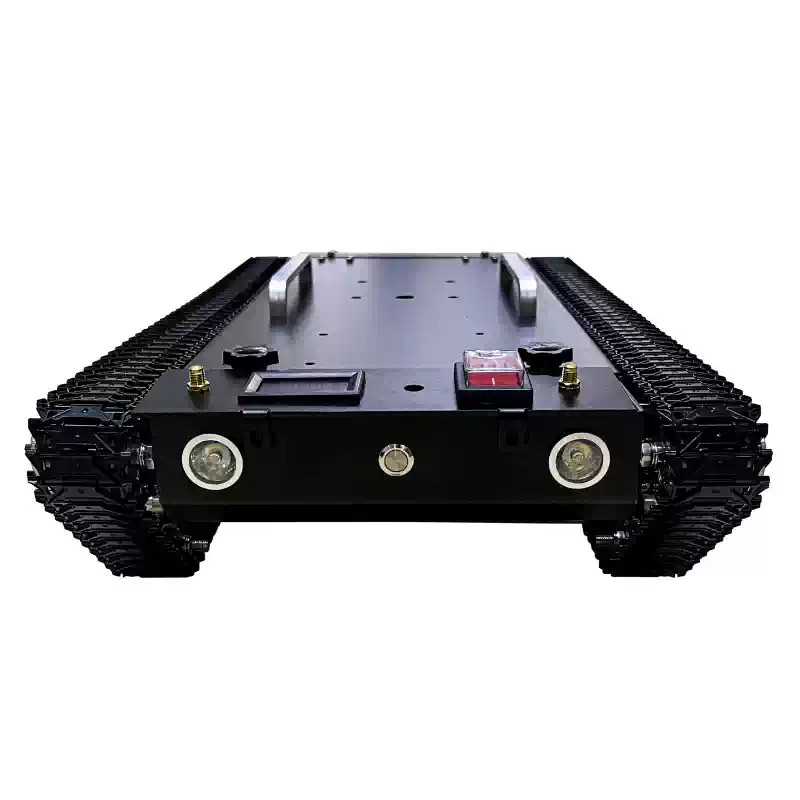

Dual 40W high-power 12V DC brushed geared motors provide strong power, matched with thickened solid metal tracks. It supports steep slope climbing and high obstacle crossing, built-in lithium battery compartment, standard LED headlights and supporting lithium battery & charger. This chassis is widely used in outdoor follow shooting, field inspection, environmental monitoring, engineering prototype research and development, outdoor rescue mobile carrier and other scenarios.

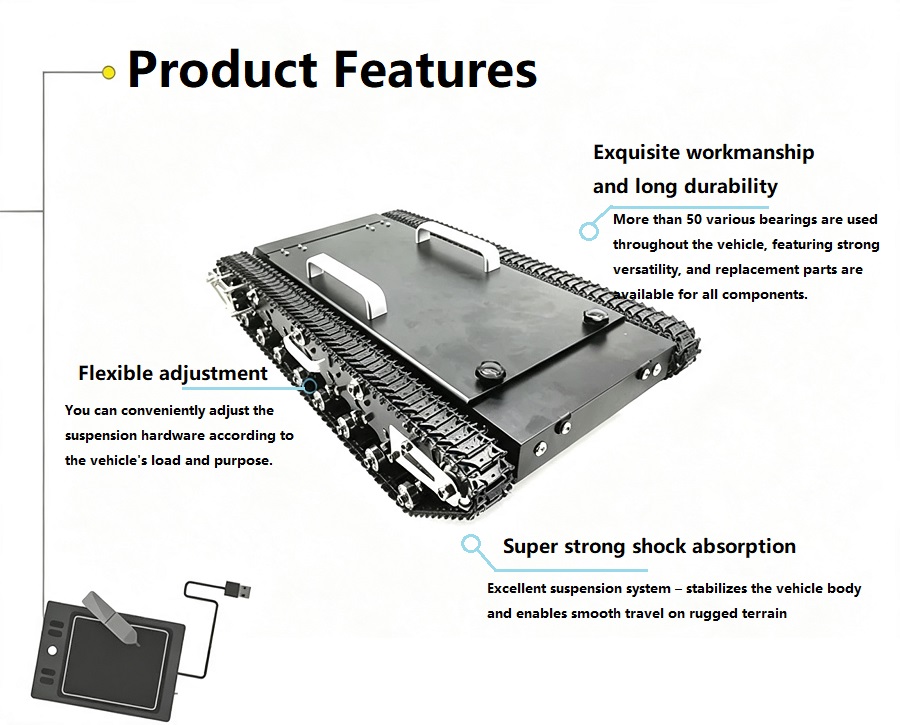

① Excellent Shock Absorption & Stable Driving

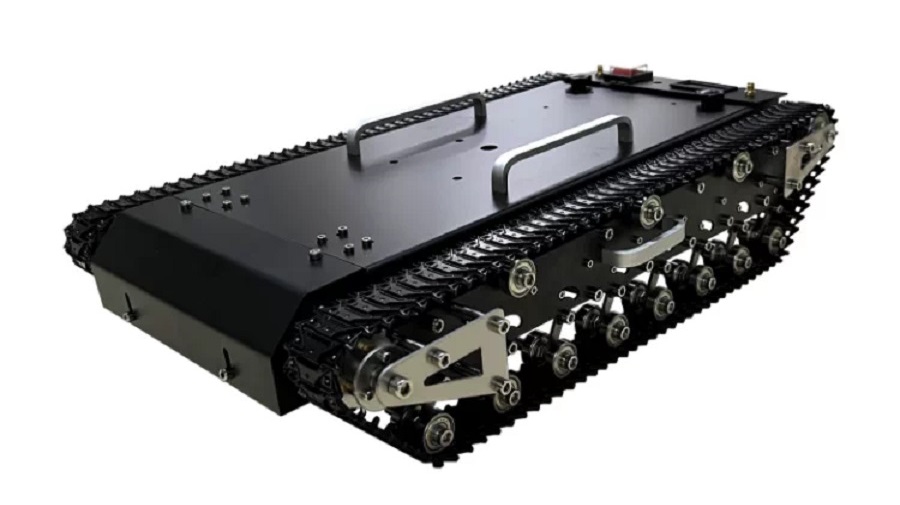

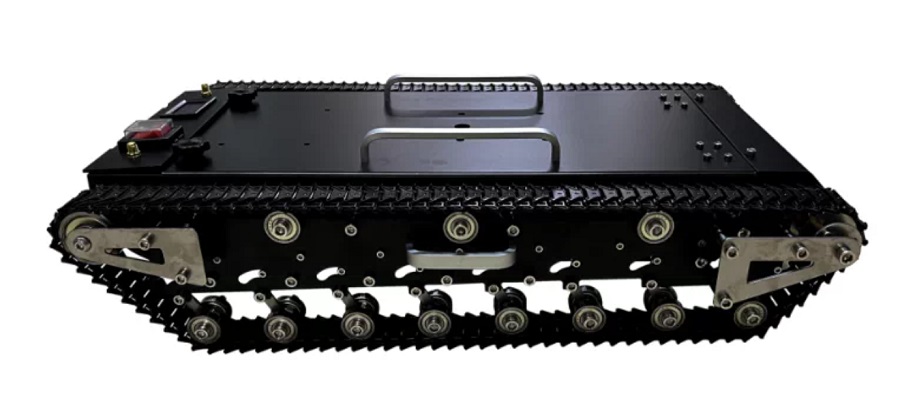

Equipped with 8 sets independent suspension on each side, the suspension system effectively buffers bumps from rugged roads, keeps vehicle body stable, and realizes smooth traveling on gravel roads, lawns, slopes and complex terrain.
② Flexible Adjustable Suspension Structure
The suspension hardware can be freely adjusted according to actual load weight and usage purpose, adapt to light load shooting follow and heavy load industrial transportation two different usage modes.
③ Durable Exquisite Craftsmanship
The whole vehicle is equipped with more than 50 precision bearings, flexible rotation and long service life; all wearing parts are standardized, spare replacement parts are available for all components, easy for later maintenance.
④ High-strength All-Metal Structure
High carbon steel frame + electrostatic anti-rust paint, anti-collision, wear-resistant, anti-corrosion, far stronger durability than aluminum alloy plastic chassis, suitable for long-term harsh outdoor work.
⑤ Strong Power & Outstanding Off-road Performance

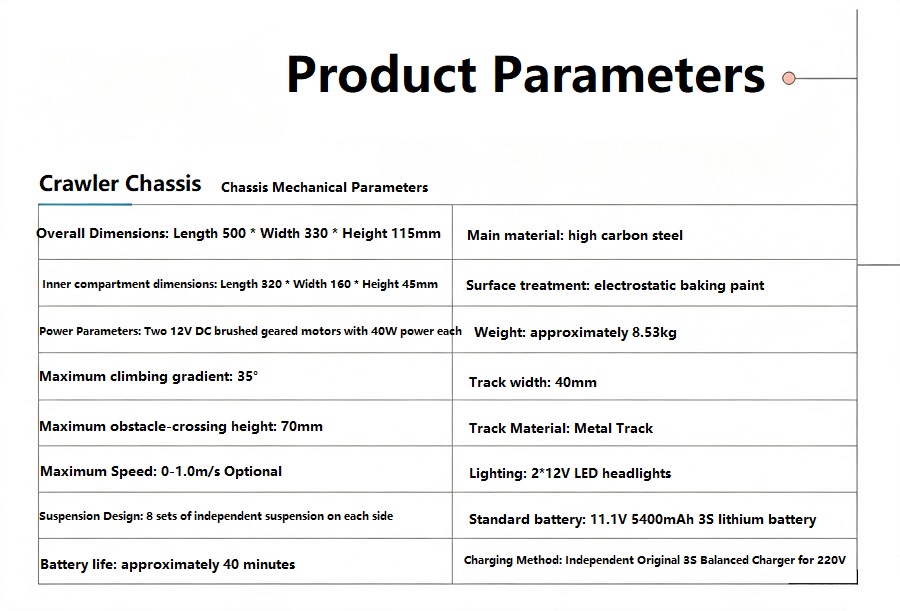

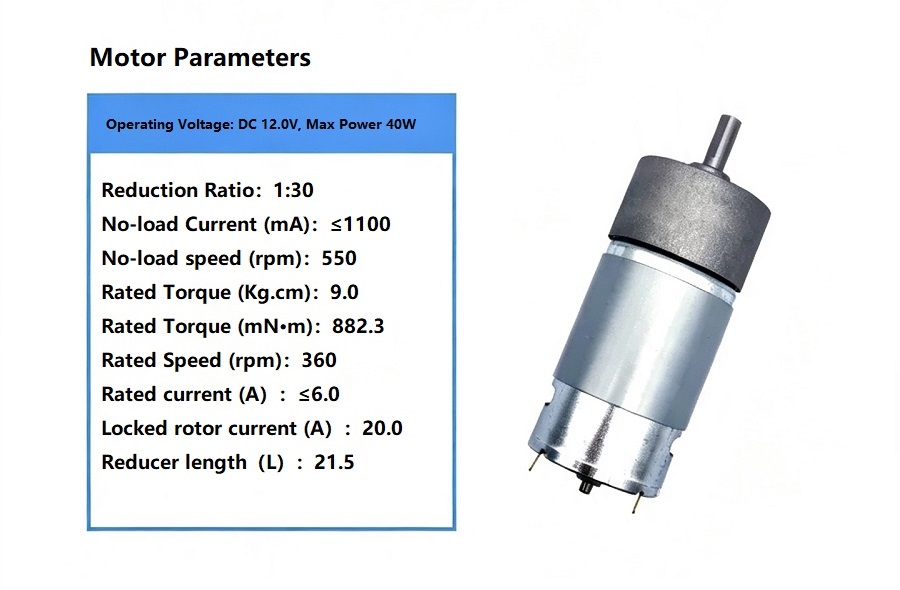

Dual 40W high-power motors support maximum 35° steep climbing and 70mm high obstacle crossing, far beyond small indoor chassis, excellent outdoor off-road capability.
⑥ Humanized Expansion Design

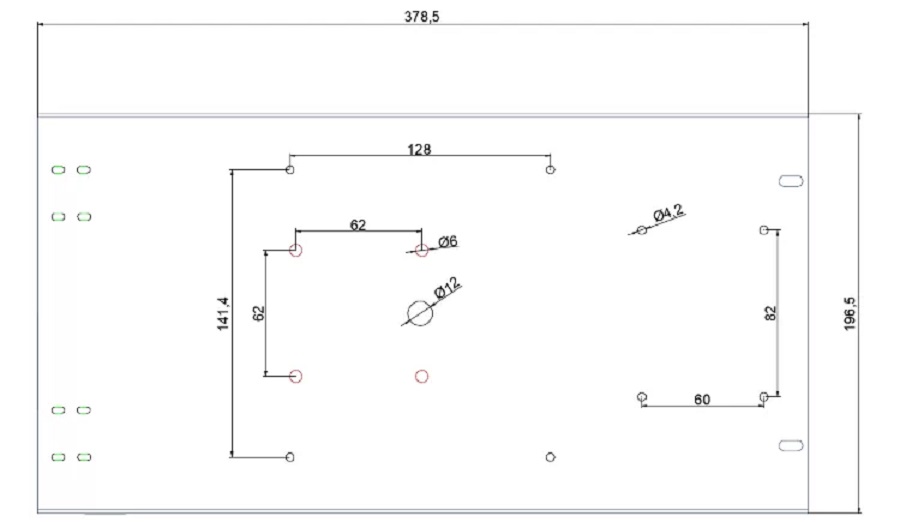

Large internal installation compartment reserves abundant installation space, convenient to install camera gimbal, radar, sensors, industrial computer, robotic arms and other modules for secondary development.

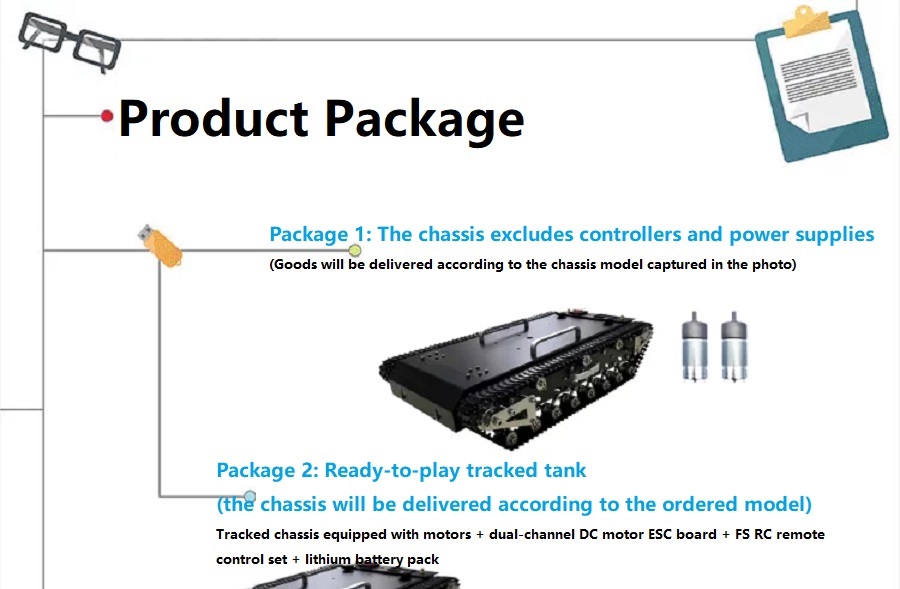

Q1: Does WD-WT600S chassis include remote control and control board?

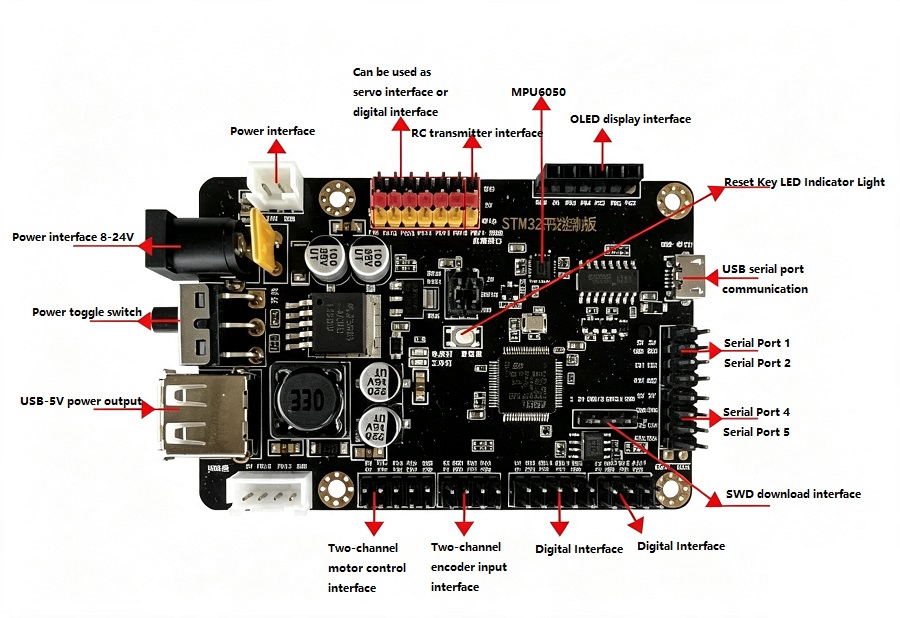

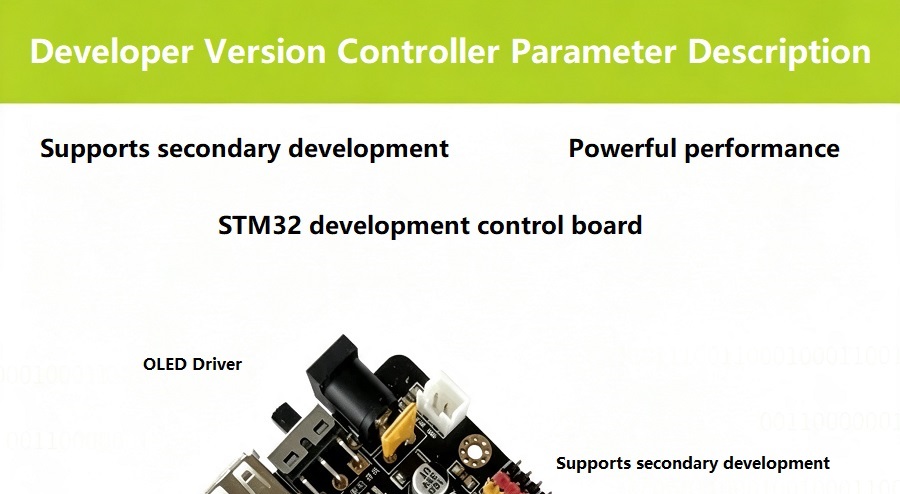

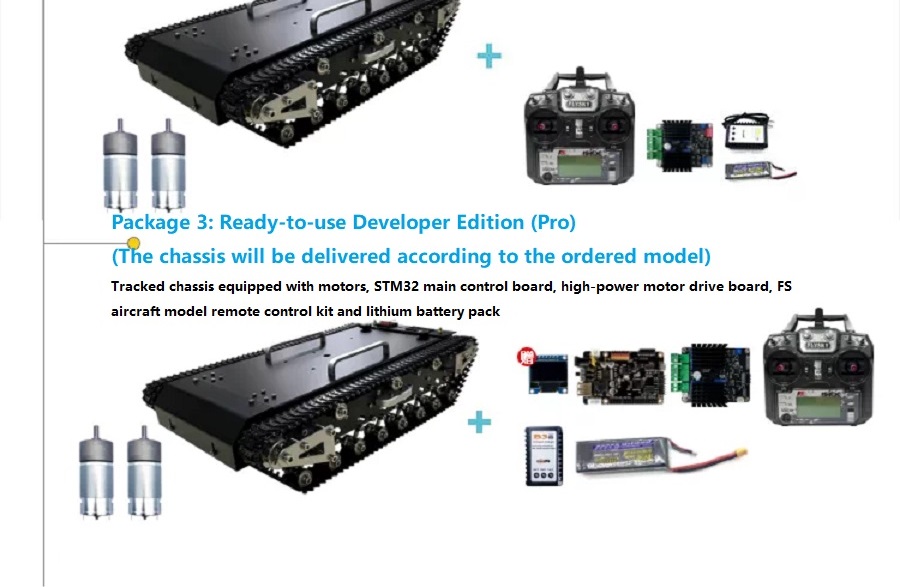

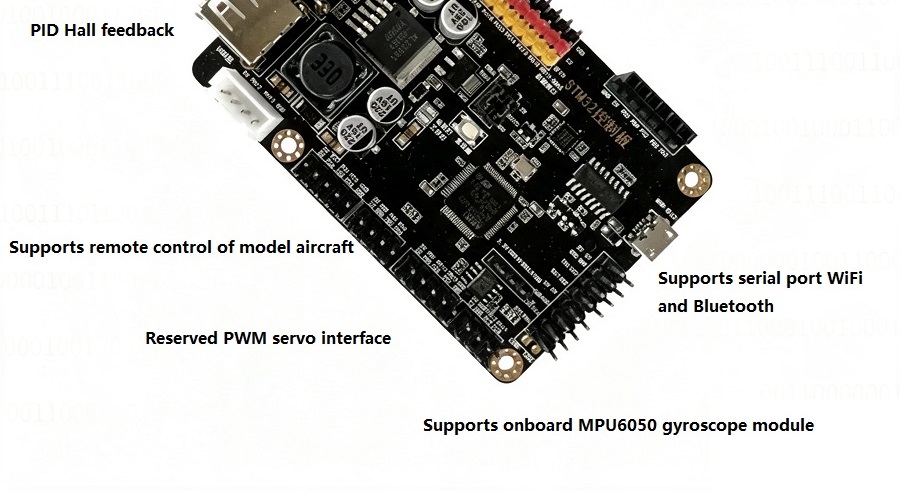

A1: Standard configuration includes battery, charger, mechanical structure and motors. Remote control, drive control board are not equipped, we can provide matching control schemes according to your demand.
Q2: How long is the battery life? Can the battery be upgraded?
A2: Standard 5400mAh battery lasts about 40 minutes; larger capacity lithium batteries can be customized to extend endurance time.
Q3: What kind of terrain is this chassis suitable for?
A3: Suitable for lawn, gravel road, mud road, hillside, rugged construction site and other complex outdoor terrain; not recommended for deep mud and extremely steep cliffs.
Q4: Can the suspension be adjusted for heavy load use?
A4: Yes, the independent suspension structure supports manual hardware adjustment, which can enhance bearing performance for heavy load working conditions.
Q5: Are spare parts provided for wearing parts?
A5: All bearings, tracks, wheels and other vulnerable parts have standardized replacement spare parts, long-term supply for after-sales maintenance.
Q6: Can the speed be customized?
A6: The default speed range is 0-1.0m/s, we can customize deceleration motors to get lower speed & larger torque on request.
