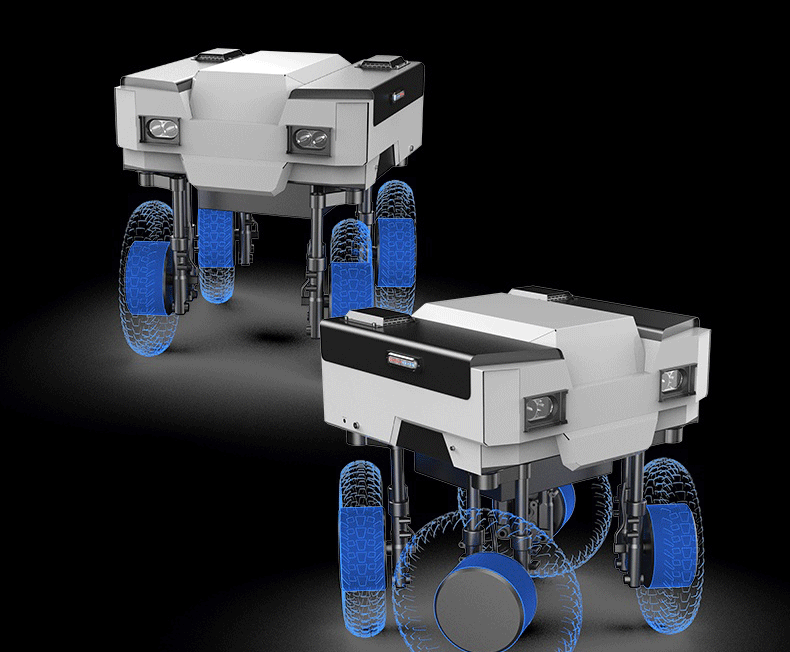

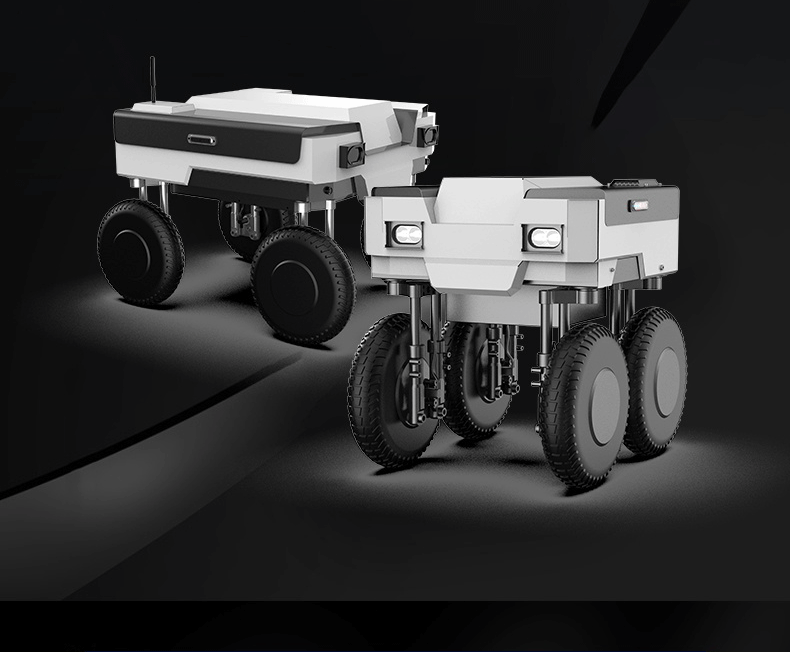

All Wheel Steering Wheeled Chassis

Technical Parameter

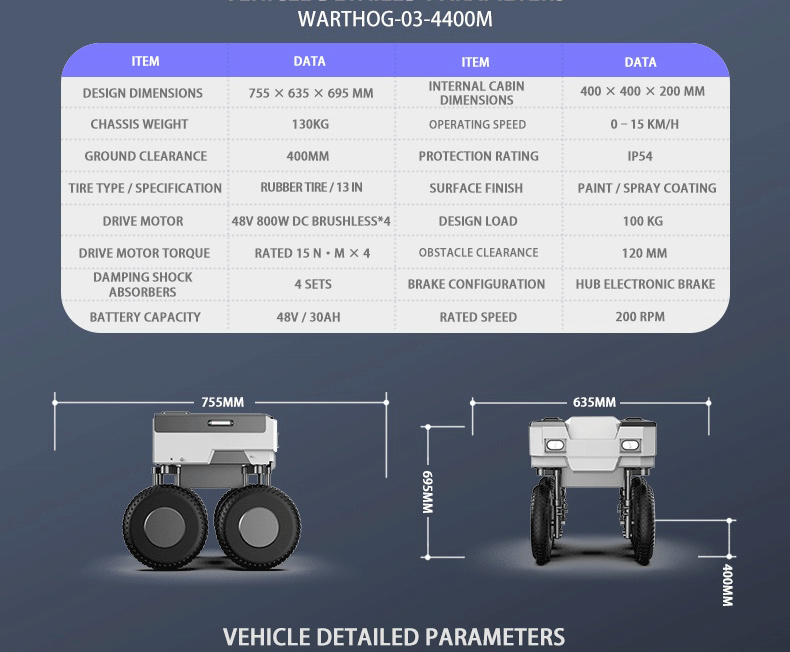

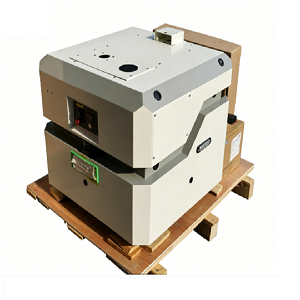

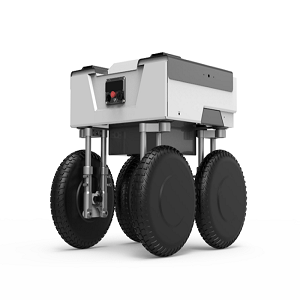

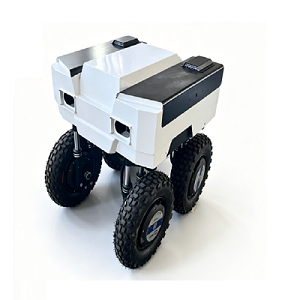

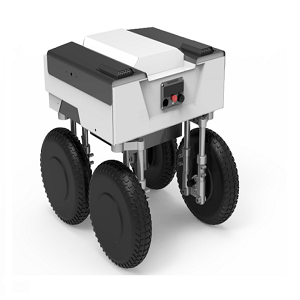

WD-W3-4400M

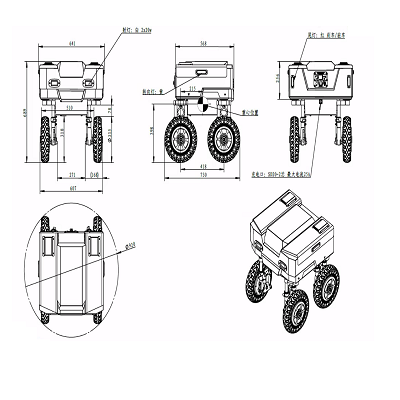

Dimension: 740*645*695mm

Chassis Self Weight: 130kg

Running Speed (Rated/Max): 0-7.2 /14 km/h

Chassis Height: 300mm

Protection Grade: IP54

Design Load (Rated/Max): 100kg /200kg

Climbing Angle (Rated/Max): 10° /20°

Max Obstacle Crossing: 60mm

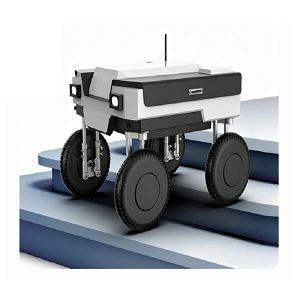

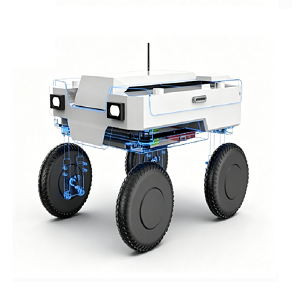

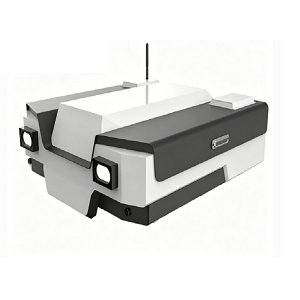

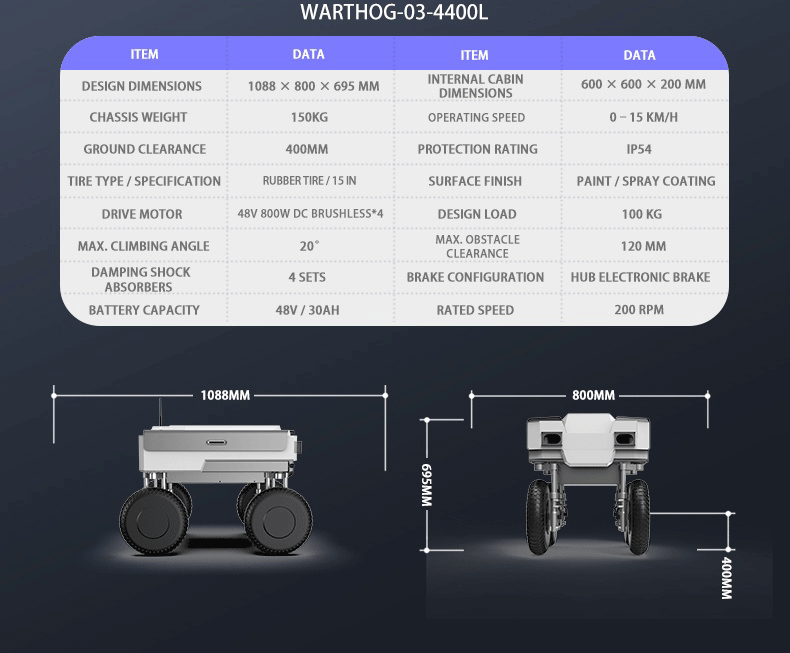

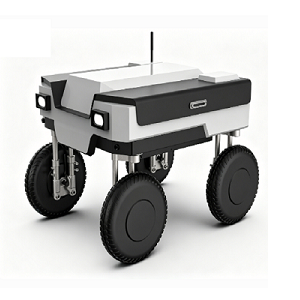

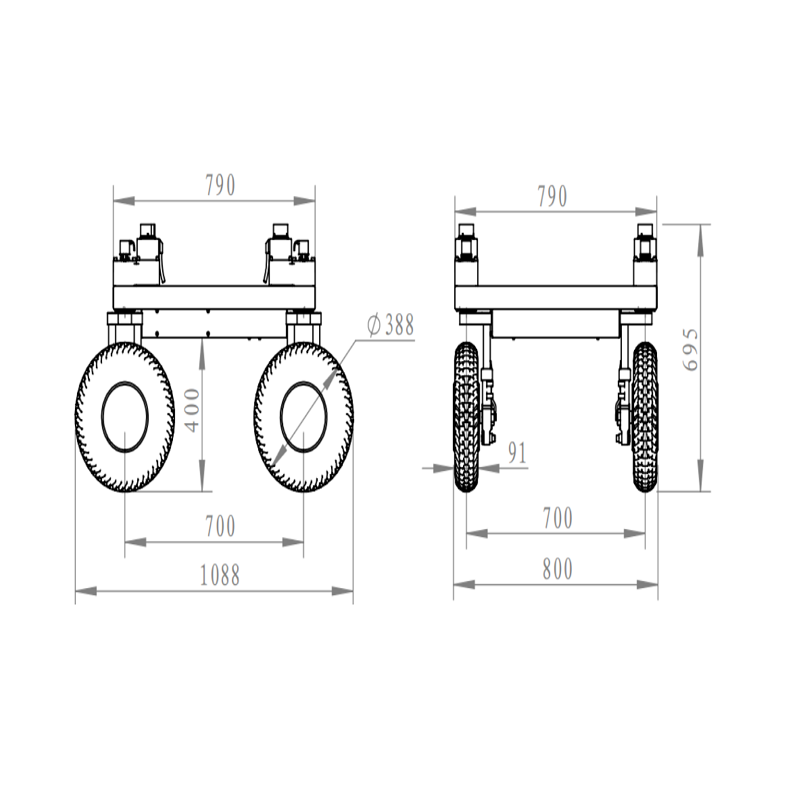

WD-W3-4400L

Dimension: 1088*800*695mm

Chassis Self Weight: 150kg

Running Speed Range: 0-15km/h

Chassis Height: 400mm

Protection Grade: IP54

Rated Design Load: 100kg

Max Climbing Angle: 20°

Max Obstacle Crossing Height: 120mm

Daily Operation & Maintenance Precautions

1.Clean gravel, mud and metal debris between tires and shock absorbers after each operation to avoid suspension jamming and tire abrasion.

2.Do not run WD-W3-4400M under continuous 200kg overload for long time, overweight will damage suspension and hub motor torque system.

3.For WD-W3-4400L pneumatic rubber tires, check tire air pressure weekly; inspect honeycomb tires for cracks and deformation regularly.

4.Do not flush hub motors, steering actuators and battery compartment with high-pressure water gun directly, which will destroy IP54 dustproof & waterproof performance.

5.Lubricate four-wheel steering joint points every two weeks to keep smooth all-wheel steering movement.
