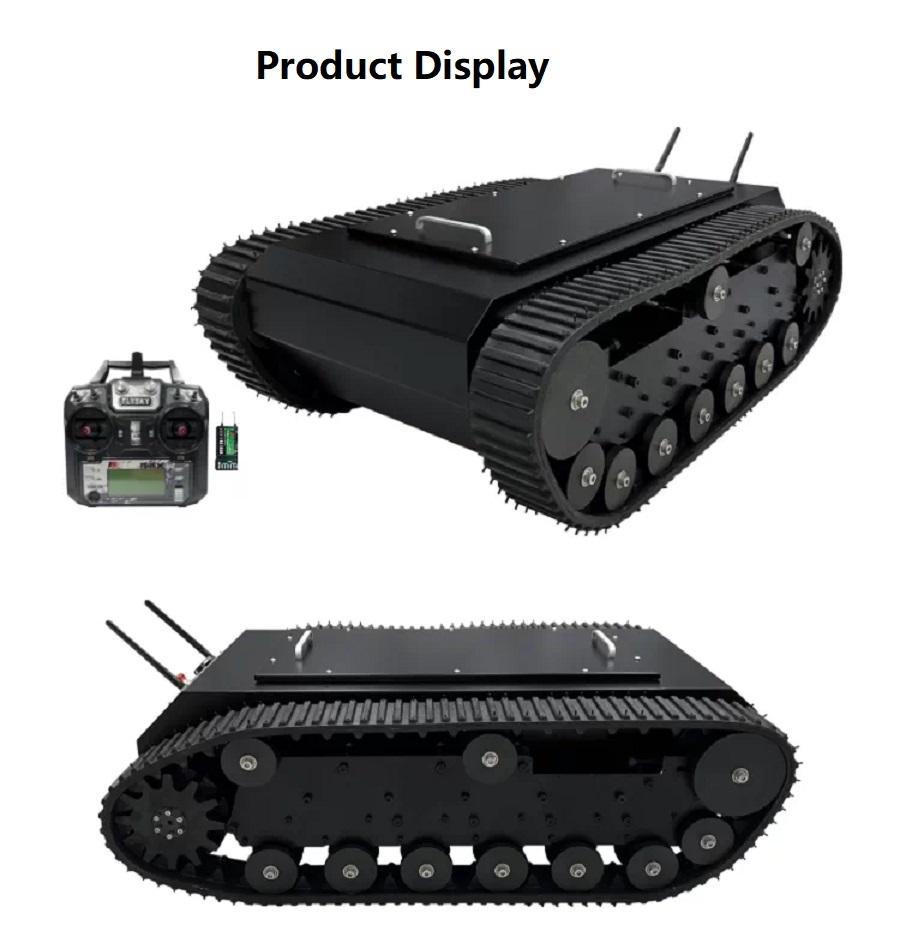

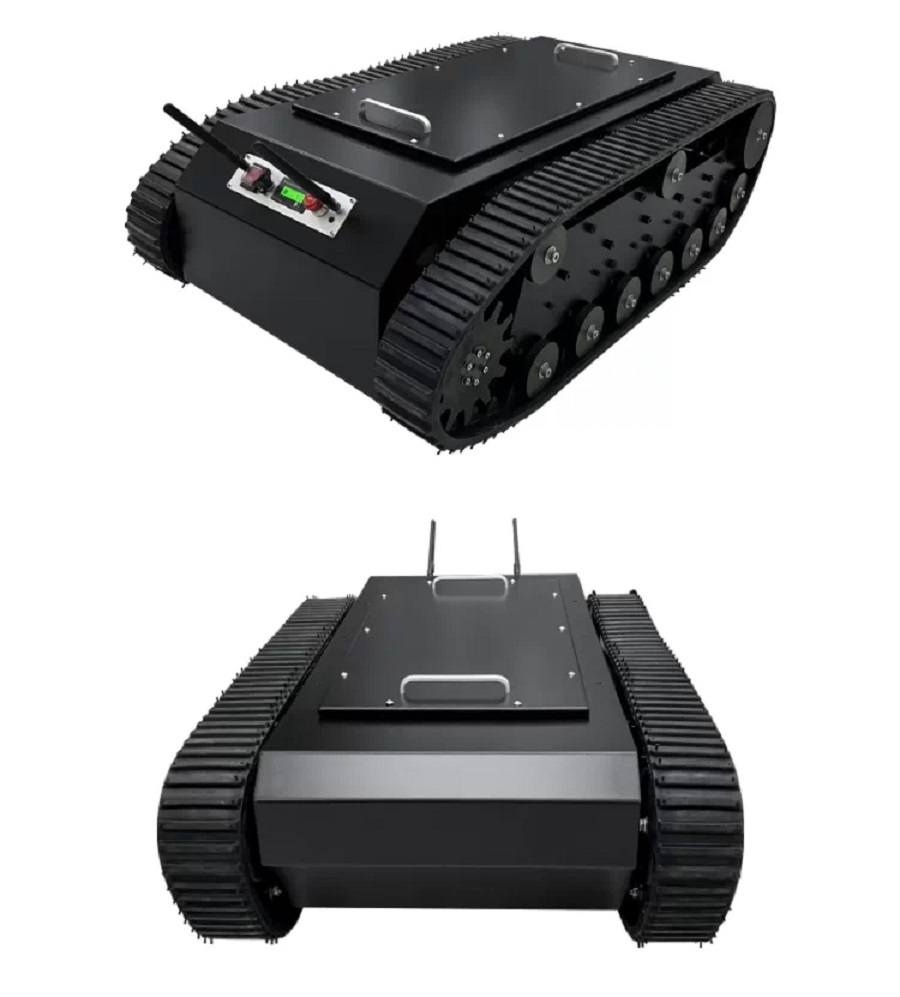

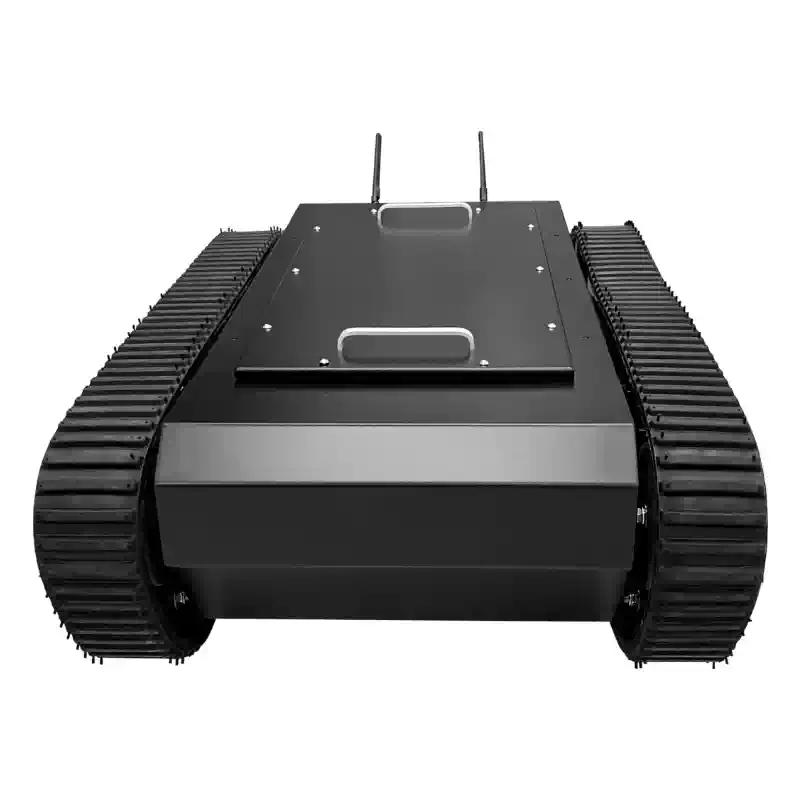

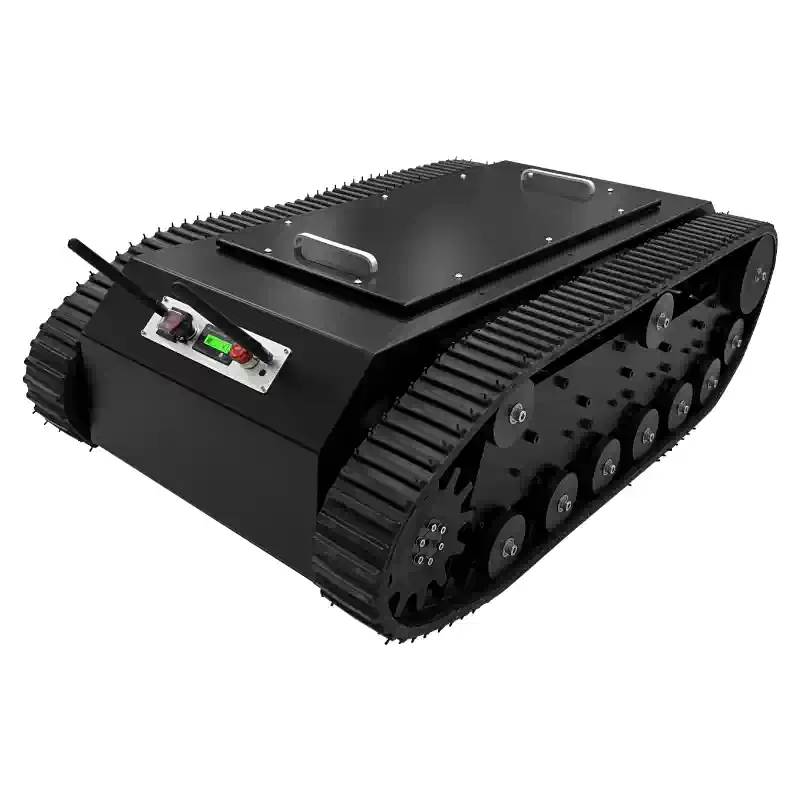

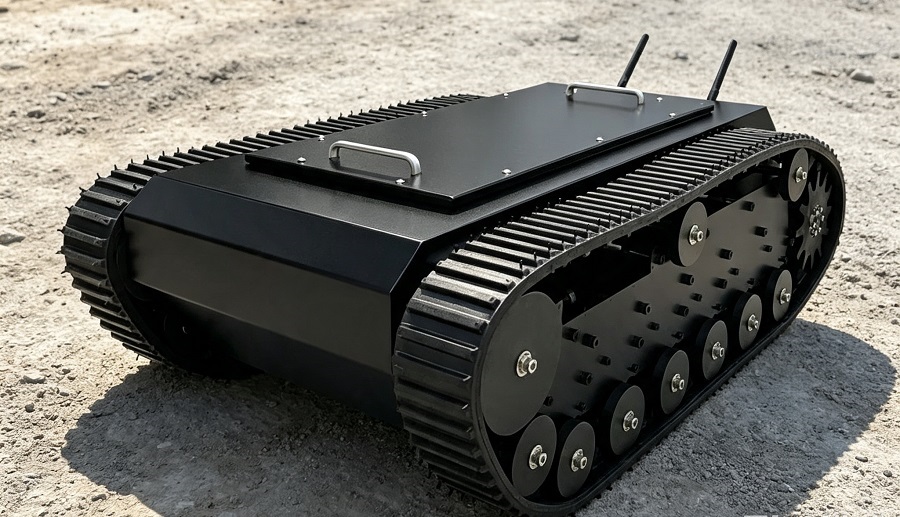

High‑Load Rubber Tracked Rescue Robot Chassis

Product Customization

1.Power system customization: adjust motor voltage, power and battery capacity for different load demands.

2.Control mode upgrade: support ROS access, wireless long‑distance remote control, SDK secondary development.

3.Function expansion: reserve mounting interfaces for camera, sensor, lidar and rescue payload equipment.

4.Track customization: adjust track width and material for special terrain conditions.

Product Advantages

1.High‑carbon steel vehicle body, solid structure, strong impact resistance, long service life for heavy‑duty working scenarios.

2.Thickened rubber track embedded with Kevlar fibers, excellent wear‑resistance, great grip for complex terrain.

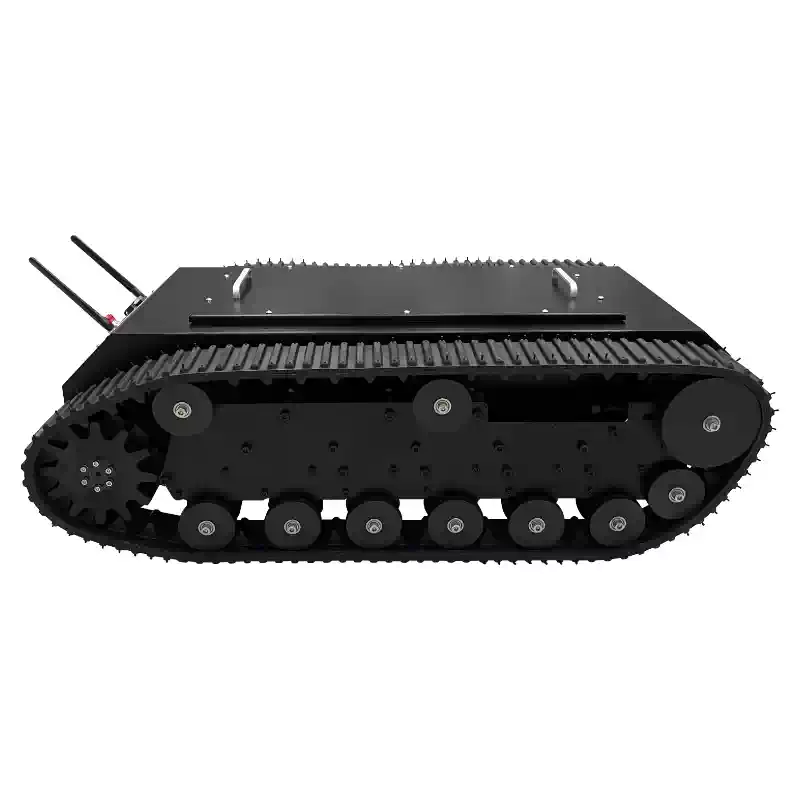

3.12‑sets independent suspension shock‑absorbing structure, stable driving on bumpy ground, realize stair‑climbing and obstacle crossing.

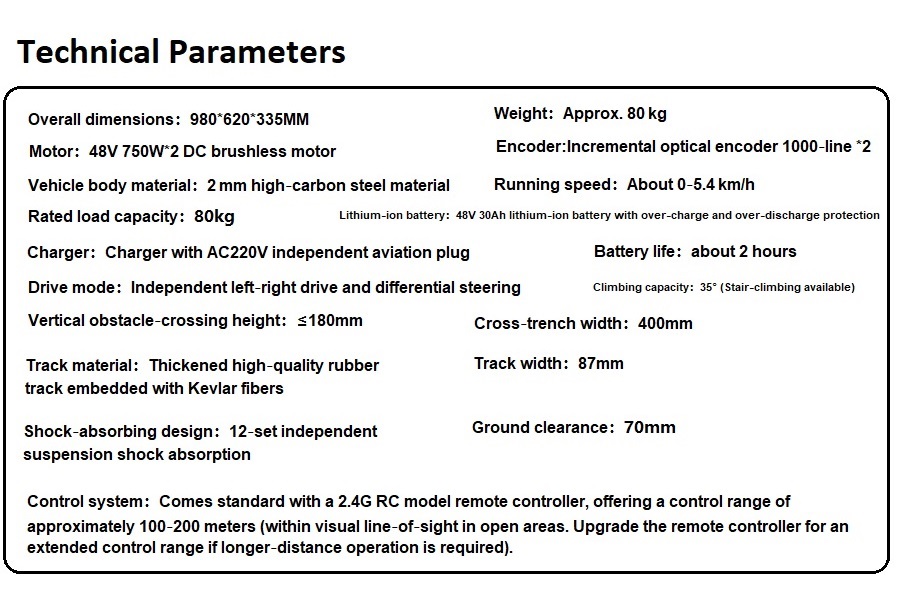

4.High load‑bearing performance, rated load up to 80kg, powerful 48V brushless motor system with encoder feedback.

5.Standard 2.4G remote controller, 100‑200m control range; compatible with ROS for further secondary development.

6.Excellent all‑terrain capability: cross‑trench, obstacle surmounting, climbing capacity up to 35 degrees, adapt to outdoor rescue environment.

7.Complete protective battery system with over‑charge & over‑discharge protection for safe field operation.

Product Application Scenarios

1.Emergency rescue robot prototype for disaster‑site reconnaissance and material transportation;

2.All‑terrain heavy‑duty mobile robot research & laboratory development project;

3.Stair‑climbing inspection robot, outdoor moving shooting carrier platform;

4.Hazardous environment patrol, industrial site detection robot development;

5.Robot competition, heavy‑payload mobile robot DIY project;

6.Public safety, fire‑fighting auxiliary robot prototype verification.

FAQ

Q1: Can WD‑TR600 robot chassis climb real stairs?

A: Yes. It supports stair‑climbing function, maximum climbing angle 35°. Actual effect depends on stair height and surface condition.

Q2: What is its rated load capacity?

A: Rated load is 80kg. Actual payload will be affected by terrain, slope and running speed.

Q3: Does this chassis support ROS control?

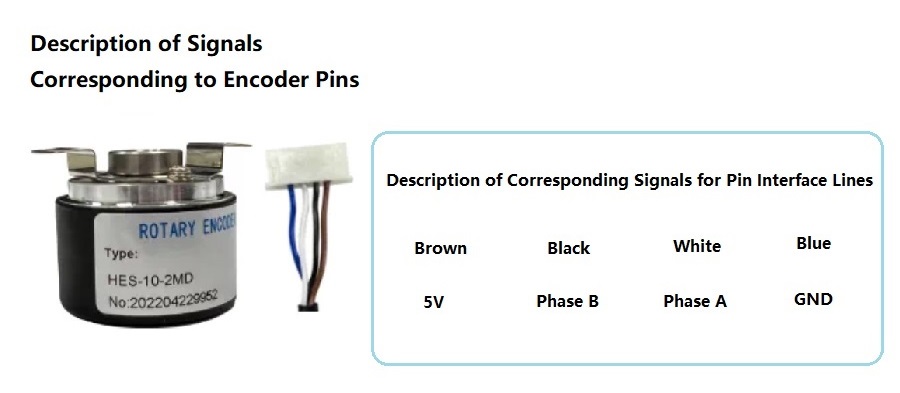

A: It is equipped with high‑precision encoder for closed‑loop motion feedback. You need to match your own controller to realize ROS function, we provide reference technical documents.

Q4: What is the battery working time?

A: Standard 48V 30Ah lithium‑ion battery, working time about 2 hours under rated load. Battery capacity can be customized.

Q5: What is the remote control distance?

A: Standard 2.4G remote controller reaches 100‑200 meters within visual open area. Long‑range remote‑control module can be upgraded on request.

Q6: Can I install cameras or rescue equipment on this chassis?

A: Yes. Multiple reserved mounting holes and expansion interfaces on the top platform for installing sensors, cameras and rescue payload devices.

Q7: Is the rubber track replaceable?

A: Yes, we supply separate spare rubber tracks for replacement.
