Large Payload Rubber Track Undercarriage Robot Chassis

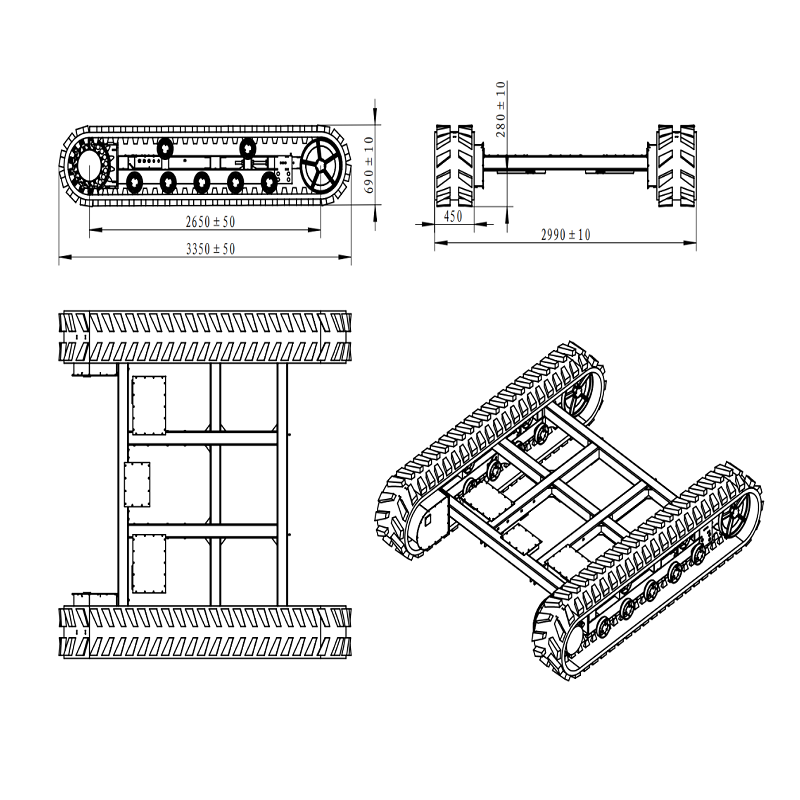

WD-K13 Wide type

Dimensions (Length × Width × Height): 3350 (±50)*2990 (±10) *690 (±10)mm

Rated Power: 2*15000W

Motor Voltage: 96V

Running speed: 0-2.9Km/h

Chassis weight: 1800KG

Rated Load Capacity: 2600KG

Ground clearance: 280±10mm

Rated obstacle-crossing capacity: 230mm

Rated Climbing Gradient: 30° (Power is sufficient, subject to ground friction coefficient)

Rated Span: 800mm (Check the center of gravity)

Protection Class: IP54 (IP64 customizable)

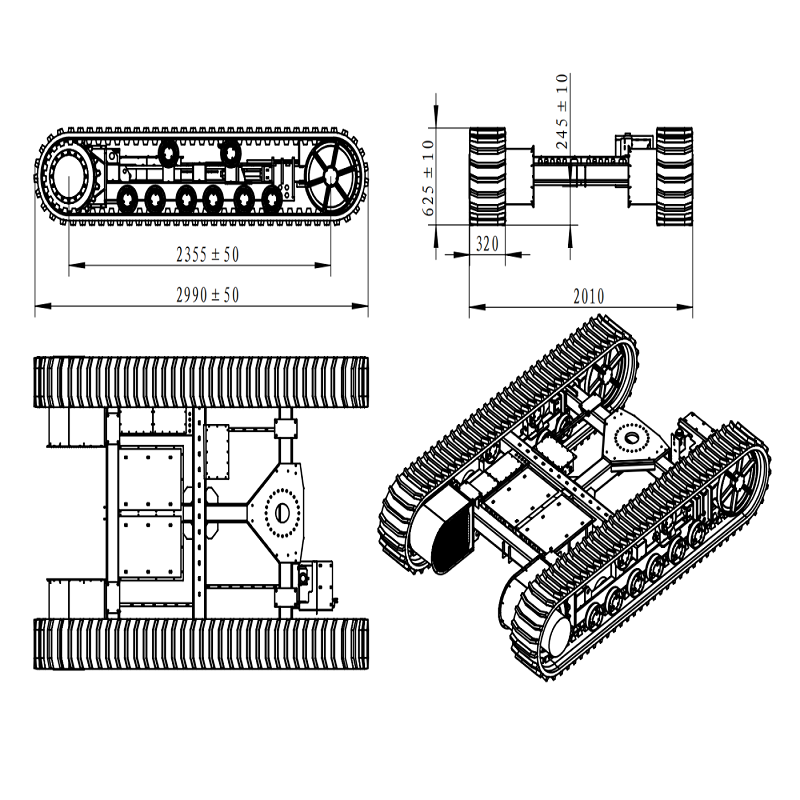

WD-K13 Narrow type

Dimensions (Length × Width × Height): 2990 (±50)*2010 (±10)*625 (±10)mm

Rated Power: 2*15000W

Motor Voltage: 320V

Running speed: 0-3.1Km/h

Chassis weight: 1700KG

Rated Load Capacity: 2200KG

Ground clearance: 280±10mm

Rated obstacle-crossing capacity: 210mm

Rated Climbing Gradient: 35° (Power is sufficient, subject to ground friction coefficient)

Rated Span: 780mm (Check the center of gravity)

Protection Class: IP54 (IP64 customizable)
