High-Performance Mobility Platforms for Your Industrial Needs

WD-W3-2200M heavy-duty 4 Wheel Ackermann Steering Chassis is a highly integrated universal UGV mobile platform with front Ackermann steering and rear integral differential hard bridge drive. Equipped with self-developed double A-arm balance suspension, 48V high-power brushless drive system, 15-inch large explosion-proof solid tires and expandable large inner cabin. IP54 industrial protection, 100kg heavy load capacity, multi-customizable configurations. Widely used for reconnaissance, outdoor inspection, geological exploration, university scientific research and autonomous driving teaching robot projects.

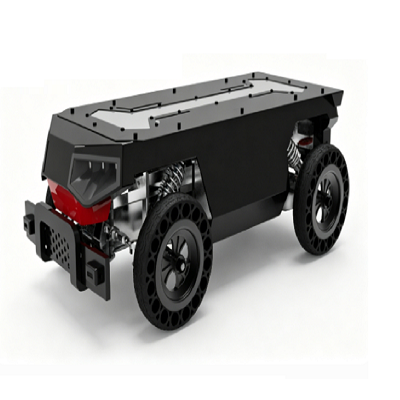

WD-W3-2200S is a universal integrated Ackermann wheeled robot chassis with front Ackermann steering and rear integral differential axle drive. Equipped with independent front double-wishbone suspension, brushless DC drive system, 24V lithium battery and front disc rear drum brake. IP54 waterproof & explosion-proof solid tires, large internal cabin space, fully customizable configurations. Ideal for inspection, reconnaissance, exploration, scientific research and teaching unmanned robot projects.

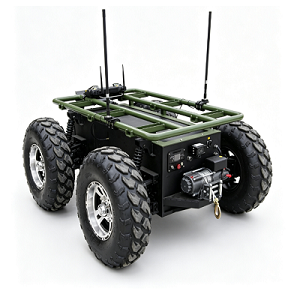

WD-W2M Pro agricultural wheeled chassis is a universal heavy-duty 4-wheel differential robot platform, equipped with self-developed double wishbone suspension with great torsional rigidity and lateral stability, outstanding off-road passability for farmland complex terrain. It adopts four 2000W DC brushless motors with encoders and full communication drivers. Standard 48V lithium battery with BMS protection, 48V60Ah large capacity battery optional. Equipped with large pneumatic tires to adapt mud, uneven farm roads. Exquisite industrial housing reserves ample space to install sensors, cameras and control equipment, widely applied in agricultural patrol, crop survey, field exploration, scientific research and teaching robot development.

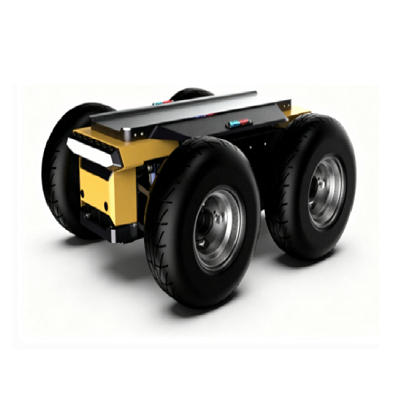

WD-W2M remote control wheeled chassis is a universal integrated 4-wheel differential robot platform equipped with self-developed double wishbone suspension, delivering outstanding torsional rigidity, lateral stability and superior terrain passability. It adopts dual 1500W brushless DC motors with encoders and full-communication drivers. Standard 48V30Ah lithium battery with BMS protection, upgradeable to 48V60Ah. Two solid explosion-proof tire options: 390mm / 450mm diameter, maintenance-free for complex roads. Exquisite industrial shell design reserves abundant space for electrical payloads, widely used in reconnaissance, inspection, exploration, scientific research and educational robot projects.

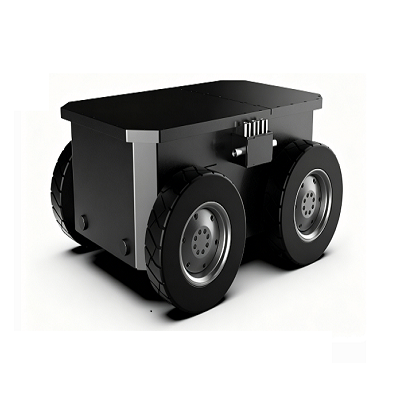

WD-W1L-EX explosion proof wheeled chassis provides two explosion grades: IIB and IIC, adopting 4-wheel differential drive with dual 2000W brushless DC motors, encoders and full communication drivers. This highly integrated explosion-proof mobile platform is equipped with standard 48V70Ah lithium battery and BMS protection system, fitted with maintenance-free solid explosion-proof tires for strong terrain adaptability. Multiple customizable configurations support various harsh working conditions, widely used in petrochemical, gas and other special hazardous industry inspection robots.

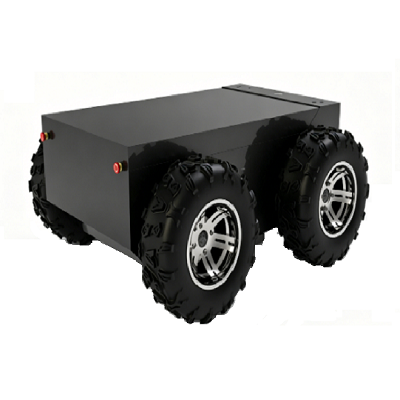

As a professional custom wheeled chassis manufacturer, we supply this low-speed heavy-load differential wheeled chassis. Constructed with thick alloy steel plate, this unmanned mobile platform supports 320kg max payload, equipped with 48V DC brushless motor, 1150N.M high rated torque and IP54 protection grade. It features 30° climbing capacity, 330mm max step crossing, large 640mm tires and high ground clearance for complex outdoor terrain. We provide full OEM & ODM custom service on size, load, speed and mounting structure to match your engineering, logistics and inspection robot projects.
