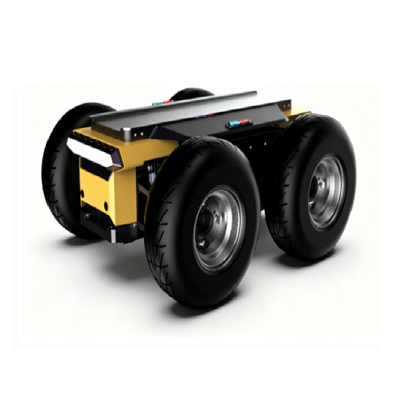

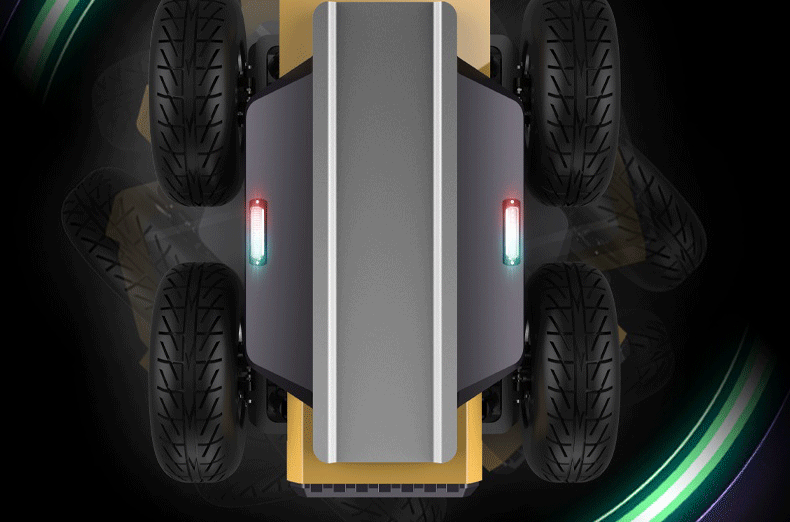

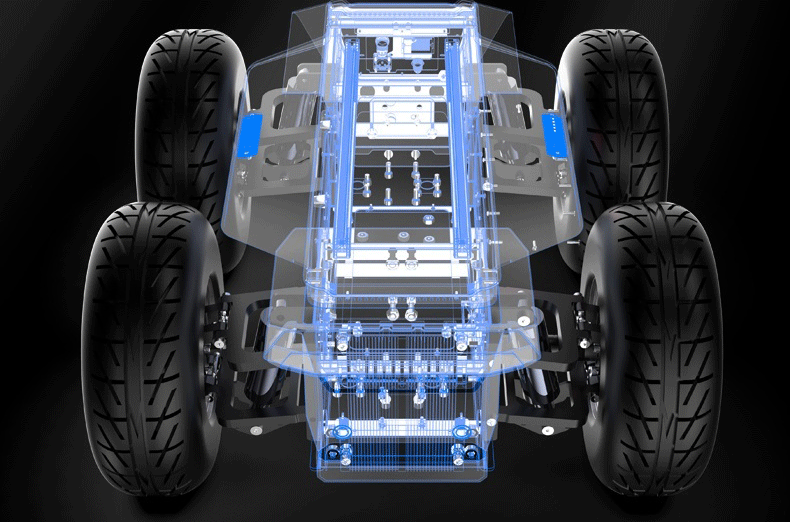

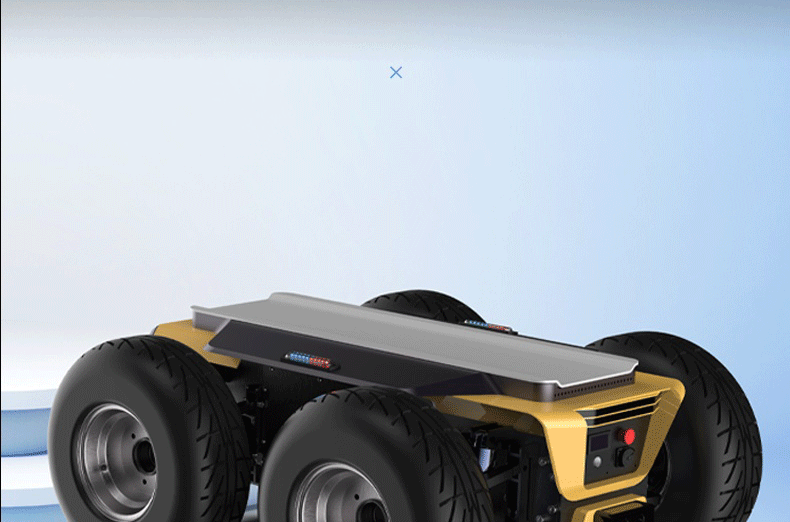

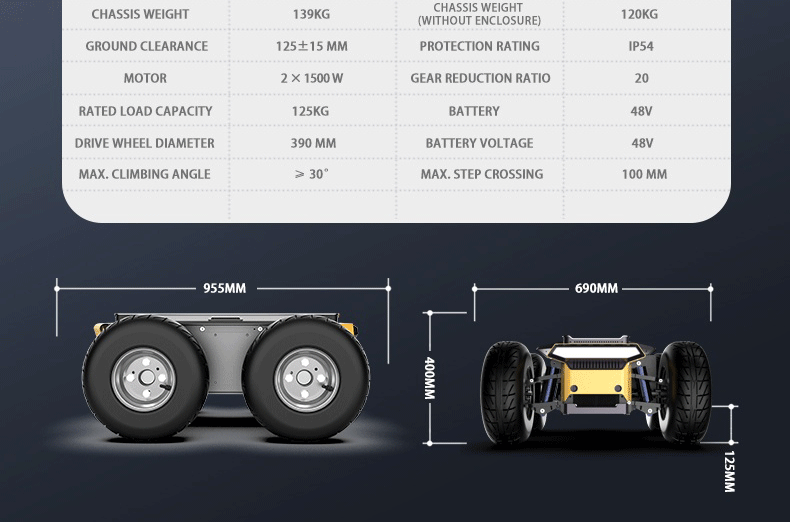

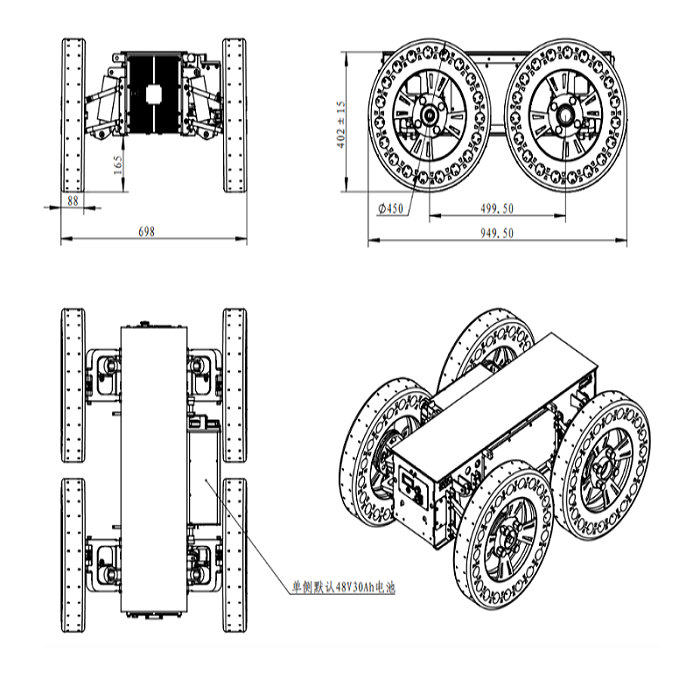

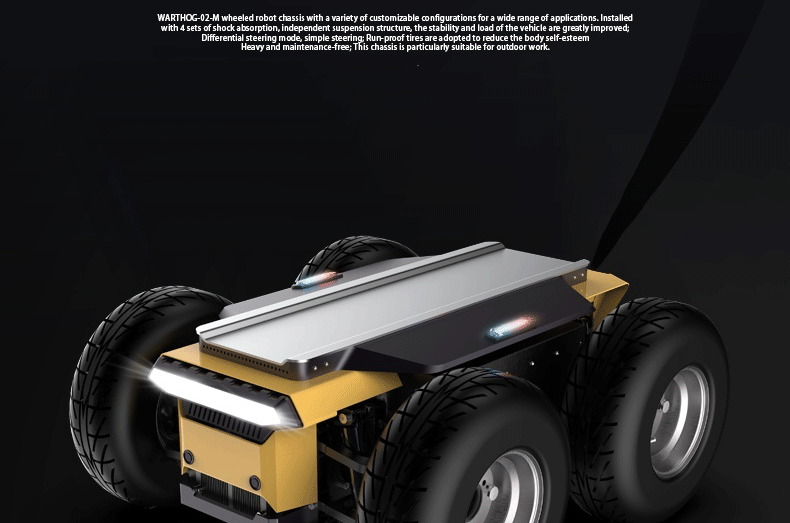

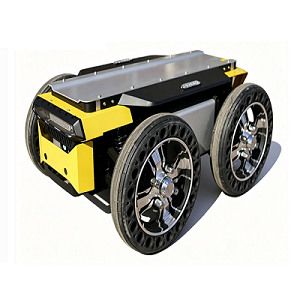

WD-W2M remote control wheeled chassis is a general-purpose unmanned mobile robot platform built for multi-scene remote operation. The core drive system adopts 4-wheel differential drive layout with dual 1500W brushless DC motors, each fitted with high-precision encoder, paired with full-function communication drivers to support remote control, autonomous navigation and secondary development.
Q1: What suspension does this remote control wheeled chassis use?

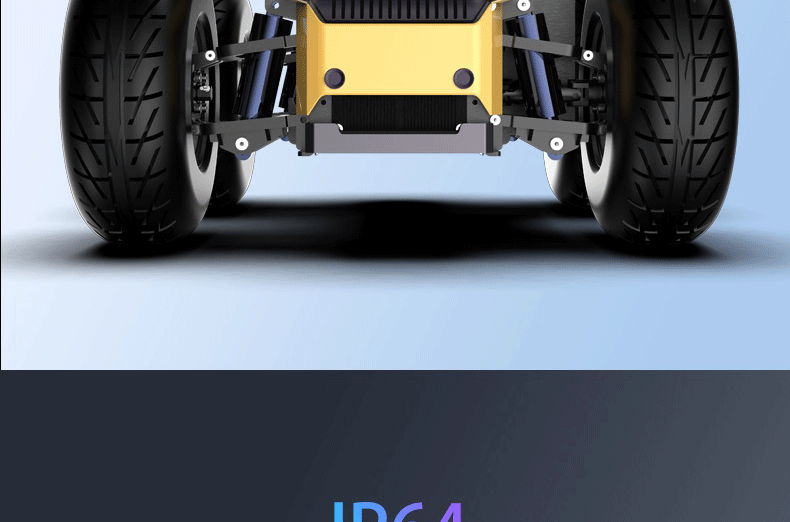

A: Self-developed independent double wishbone suspension, better shock absorption, vehicle stability and terrain passability than ordinary rigid suspension chassis.
Q2: Can I upgrade the battery capacity?

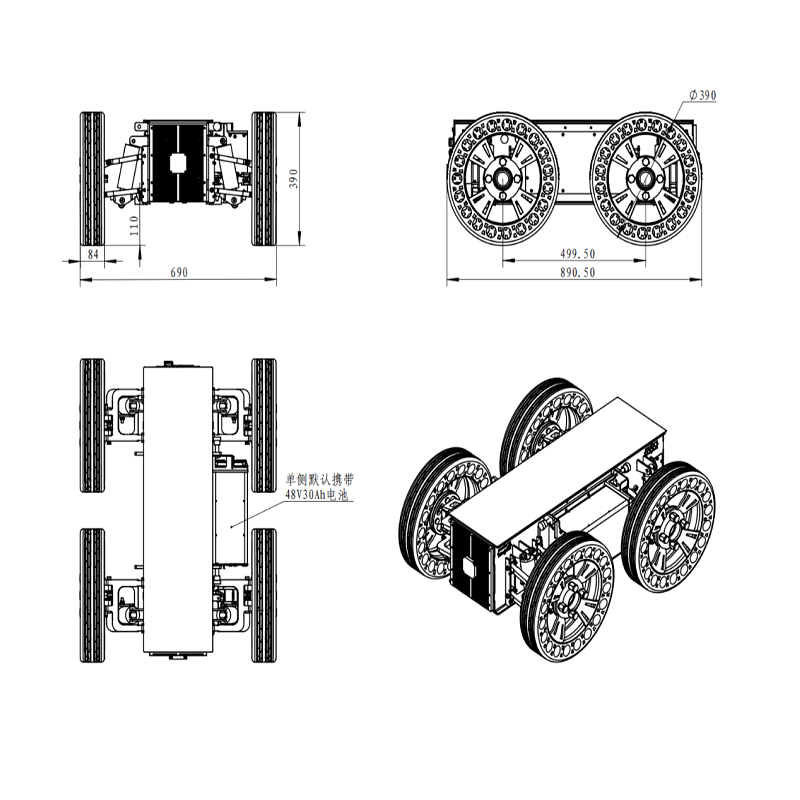

A: Yes, standard 48V30Ah lithium battery, optional 48V60Ah extended battery for longer working hours.

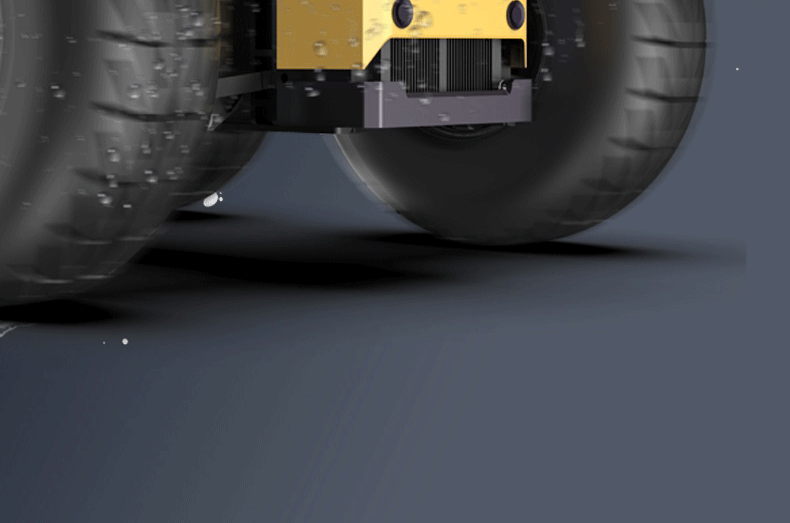

Q3: Can I upgrade the waterproof level?A: Standard IP54, we provide IP64 waterproof customized version for all-weather outdoor use.
1.Avoid overloading beyond the rated payload to protect suspension, motor and reducer.
2.Slow down when crossing 100mm max steps to prevent impact damage to double wishbone suspension.
3.Clean mud and gravel between suspension arms and tires after outdoor operation every day.
4.Charge the lithium battery in dry ventilated space; do not leave battery fully discharged for long storage.
5.Check suspension bolts and tire wear weekly, lubricate suspension joint points regularly for smooth movement.
