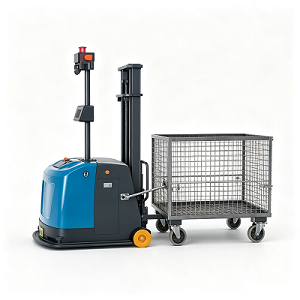

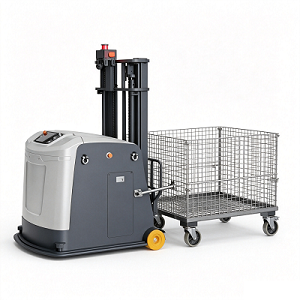

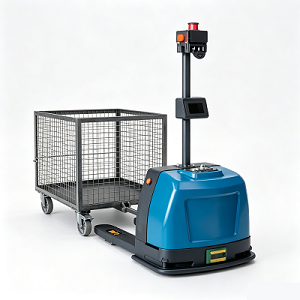

Self-guided Tow Tractor Workshop Delivery Robot

Product Selling Points

1.1500kg Super Heavy Rated Traction Capacity

Heavy-duty tow tractor AMR with maximum traction weight up to 1500kg, supports towing multiple heavy metal storage cages, pallet trolleys and large material racks at one time, meets heavy factory batch raw material and finished goods delivery demand.

2.Integrated Fork & Traction Dual Structure Design

Equipped with standard adjustable forklift forks (55/170/1150mm thickness/width/length), can fork pallets directly or hook and tow various wheeled storage cages, dual-purpose design maximizes workshop logistics flexibility.

3.High Speed & Flexible Turning Performance

Max adjustable running speed reaches 1.5m/s, turning lane width only 2200mm (customizable according to carriage size), efficient batch transportation without occupying excessive workshop space.

4.4G+WiFi Remote Multi-machine Cluster Scheduling

Dual wireless communication, realize remote one-key task dispatch, multi-point synchronous heavy cargo delivery, timing fixed-route patrol transport, multiple WD-FT1500T tow tractors collaborative operation to improve overall factory logistics efficiency.

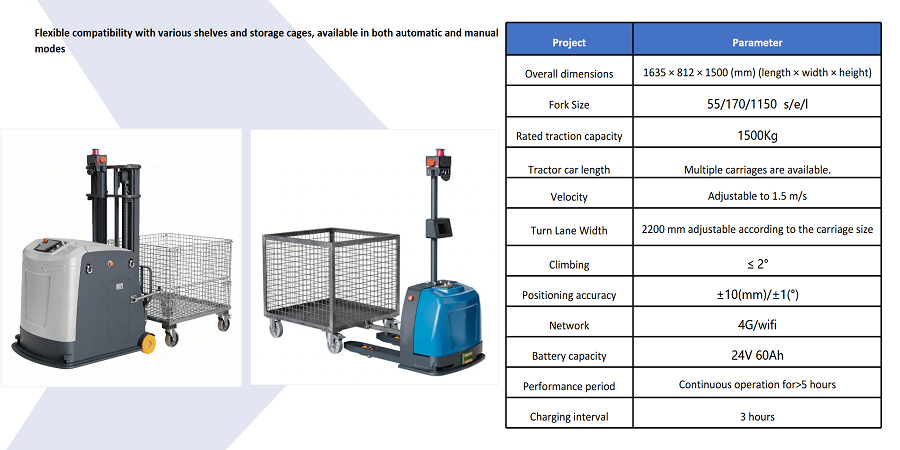

Product Parameters

Application Scenarios

1.Automobile Assembly Manufacturing Plant

Towing multi-layer auto parts metal storage cages, batch frame and engine component trolleys, realize unmanned cyclic material feeding for stamping, welding and assembly production lines, replace heavy manual trolley pushing work.

2.Heavy Machinery & Mold Processing Factory

Transport large mold storage racks, steel plate turnover cages and heavy casting pallets, complete cross-workshop mold and raw material unmanned delivery, improve heavy mold handling safety and efficiency.

3.New Energy Battery Production Workshop

Transport large battery module storage cages and raw material pallets; explosion-proof customized version is available for high-risk lithium battery production areas, meet dust-proof and anti-static production standards.

Transport heavy raw material steel frame trolleys and semi-finished product turnover cages, adapt to flat heavy-load workshop ground environment, reduce workers' long-distance heavy handling labor intensity.
