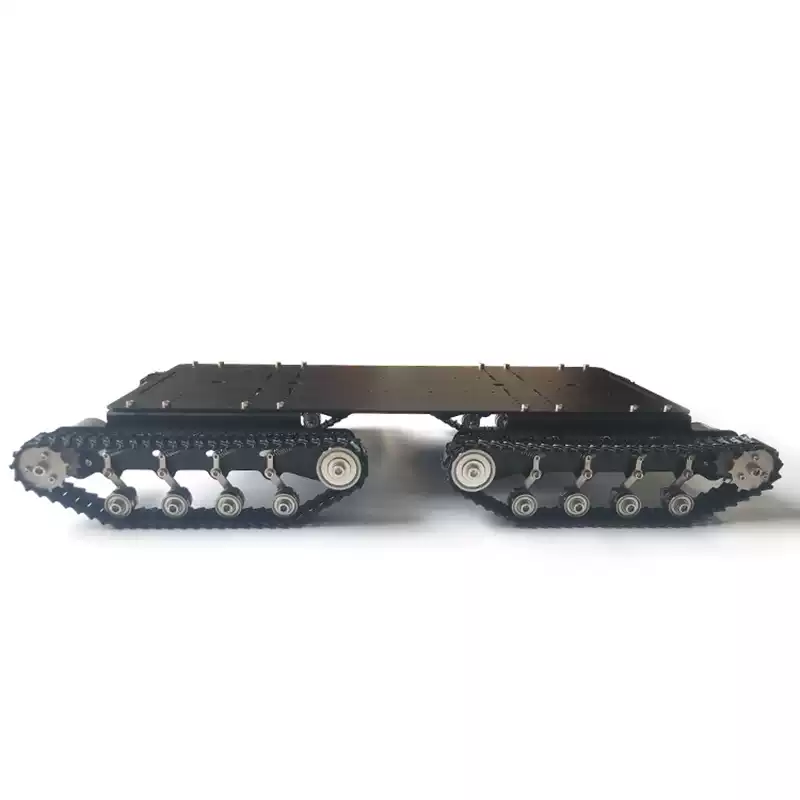

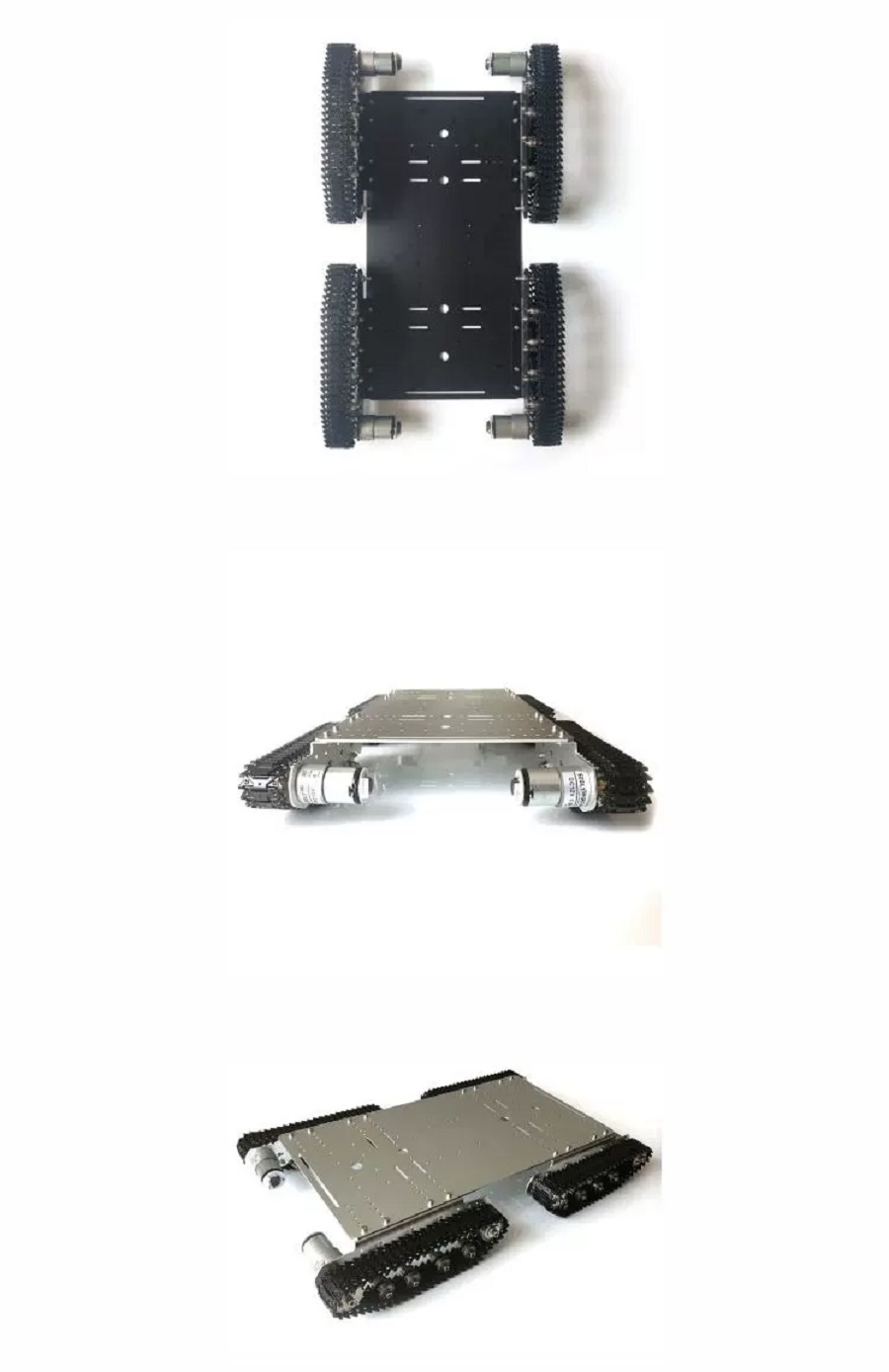

Shock-Absorbing Metal Tracked Off-Road Chassis

Product Overview

WD-TS500 is a medium-heavy load shock-absorbing metal tracked chassis independently developed for outdoor off-road, industrial inspection, engineering model and experimental robot development.

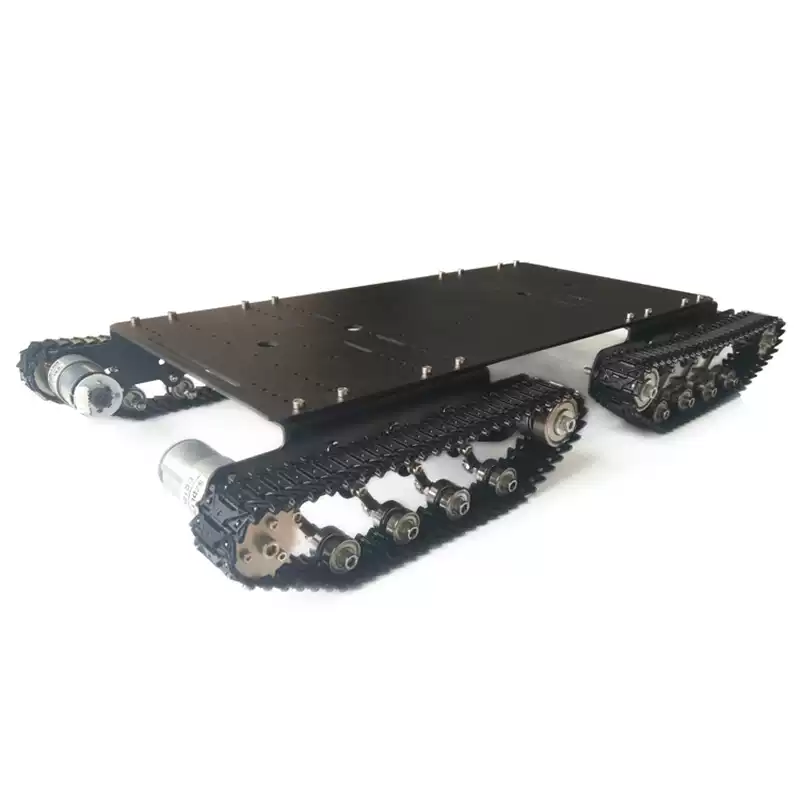

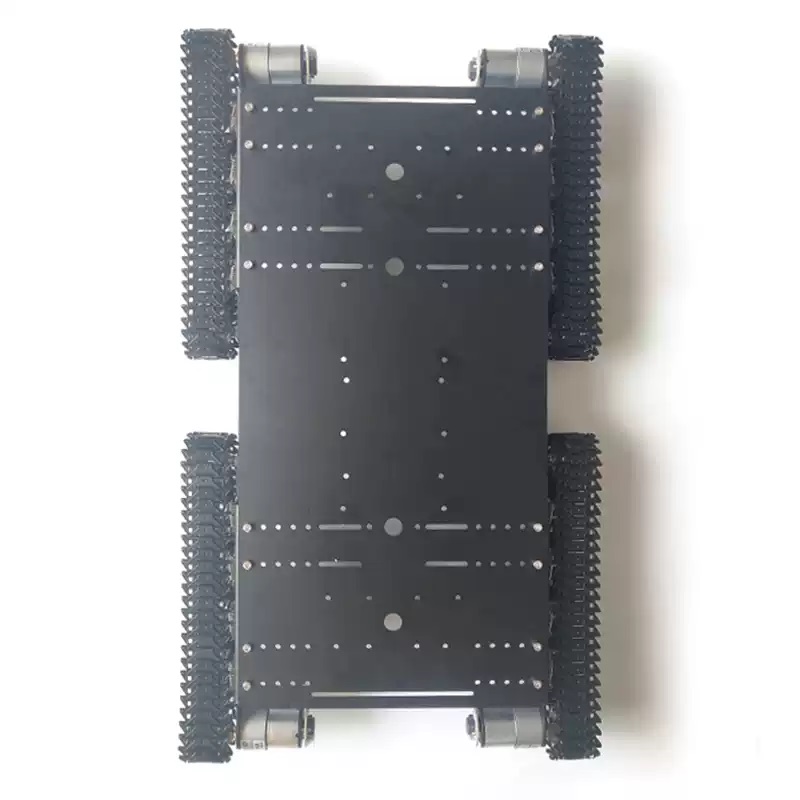

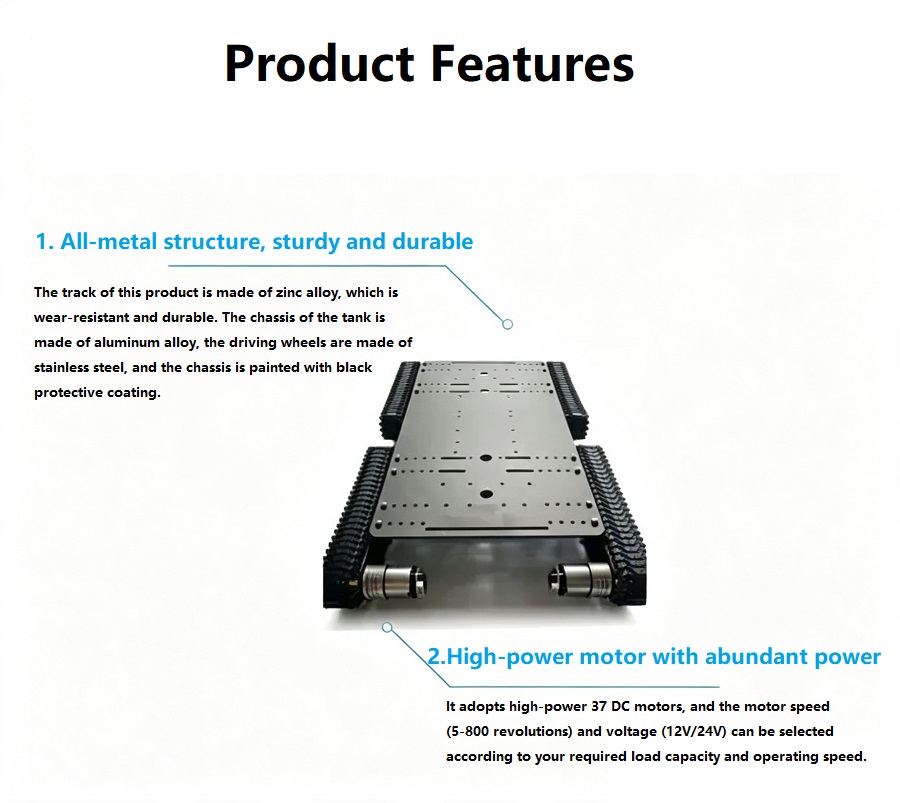

The whole vehicle adopts full metal integrated structure, aluminum alloy frame, stainless steel driving wheels and zinc alloy anti-wear tracks, matched with built-in bearing load wheels and passive shock absorption structure, with excellent obstacle crossing and buffering performance on uneven roads. Equipped with 12V 37 brushed DC reduction motor with encoder, it realizes precise closed-loop speed control, supports customized voltage, reduction ratio and speed. The top panel is reserved with dense standard mounting holes, which is convenient to install main control modules, sensors, cameras, mechanical arms and other equipment, widely applicable to commercial robots, academic research and engineering prototype customization.

Note: This chassis only includes mechanical structure and motors, control system needs separate matching customization.

Application Scenarios

1.Industrial & Security: Outdoor patrol inspection robot, factory pipeline inspection vehicle, safety monitoring mobile platform

2.Academic Research: University robot laboratory, graduation design prototype, intelligent vehicle competition model

3.Engineering Model: Engineering crawler vehicle simulation, agricultural small operation robot, outdoor transportation trolley

4.Maker Customization: Large DIY tank model, automatic navigation robot, unmanned small vehicle development

FAQ

Q1: What is the function of the motor encoder?

A1: The encoder collects real-time motor speed data to realize precise speed regulation, fixed-speed walking and automatic route planning for intelligent vehicles.

Q2: Can the motor voltage and torque be customized?

A2: Yes, 12V/24V voltage and multiple reduction ratios are optional; larger reduction ratio brings stronger torque and heavier load capacity.

Q3: What ground environments is this chassis suitable for?

A3: Applicable for cement ground, gravel road, gentle slope and small undulating terrain; good performance in outdoor off-road scenarios.

Q4: Does the product include remote control and control board?

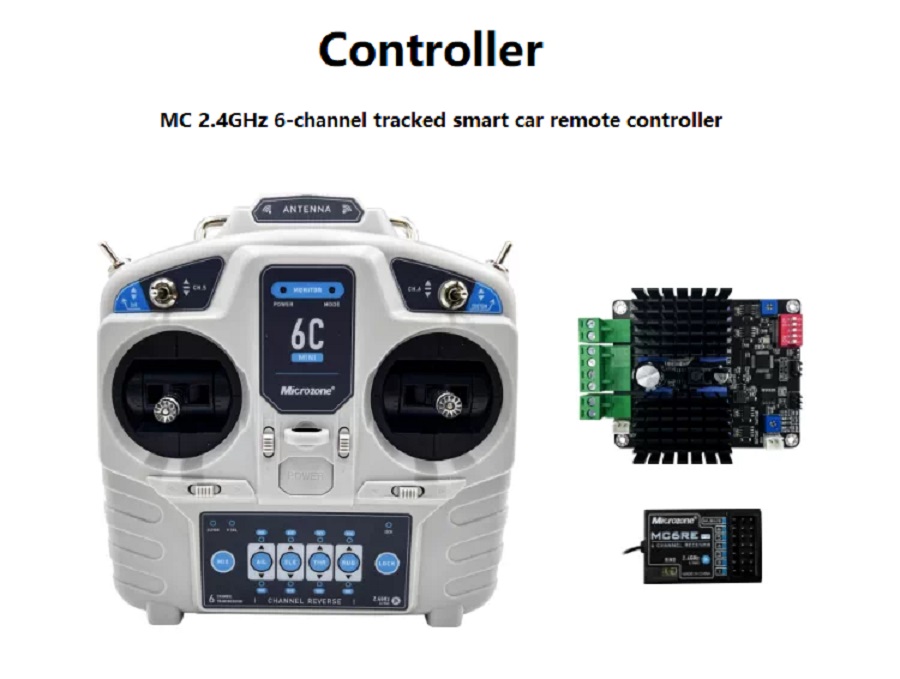

A4: Only mechanical chassis and motors are equipped; control kits are optional, we can provide matching remote control and driver scheme.

Q5: What is the maximum overload limit?

A5: The rated load is 15kg; short-term slight overload is allowed, long-term overload will accelerate motor loss.
