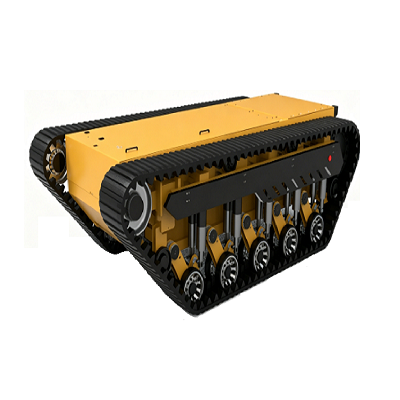

All Terrain UGV Rescue Vehicle Tracked Chassis

Main Technical Parameters

Size: 3690±30(tensioner)*1940±10*1200±50(Depends on load capacity and shock absorber pressure)

Rated Power: 55KW*2

Motor voltage: 540V

Running speed: 0-15Km/h

Chassis weight: 2500KG

Rated Load Capacity: 2500KG

Ground Clearance: Flat base 320mm±50 (depends on load capacity)

Rated obstacle-crossing capacity: 400mm (Check the center of gravity)

Maximum climbing gradient: 30° (subject to actual friction coefficient and center of gravity)

Rated Span: 500mm (Check the center of gravity)

Protection Class: IP54

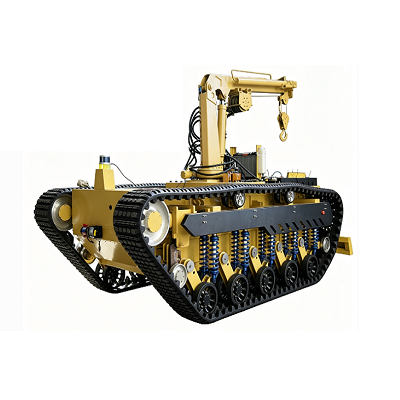

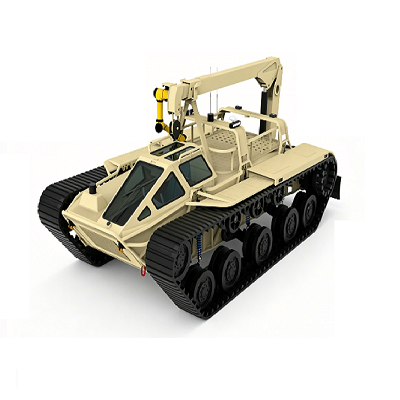

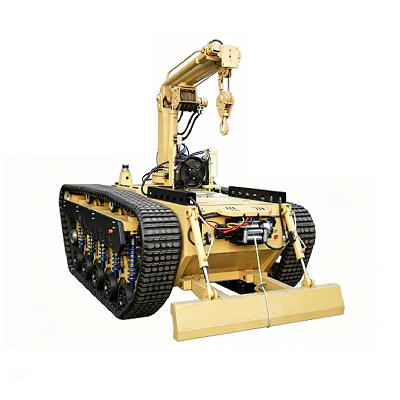

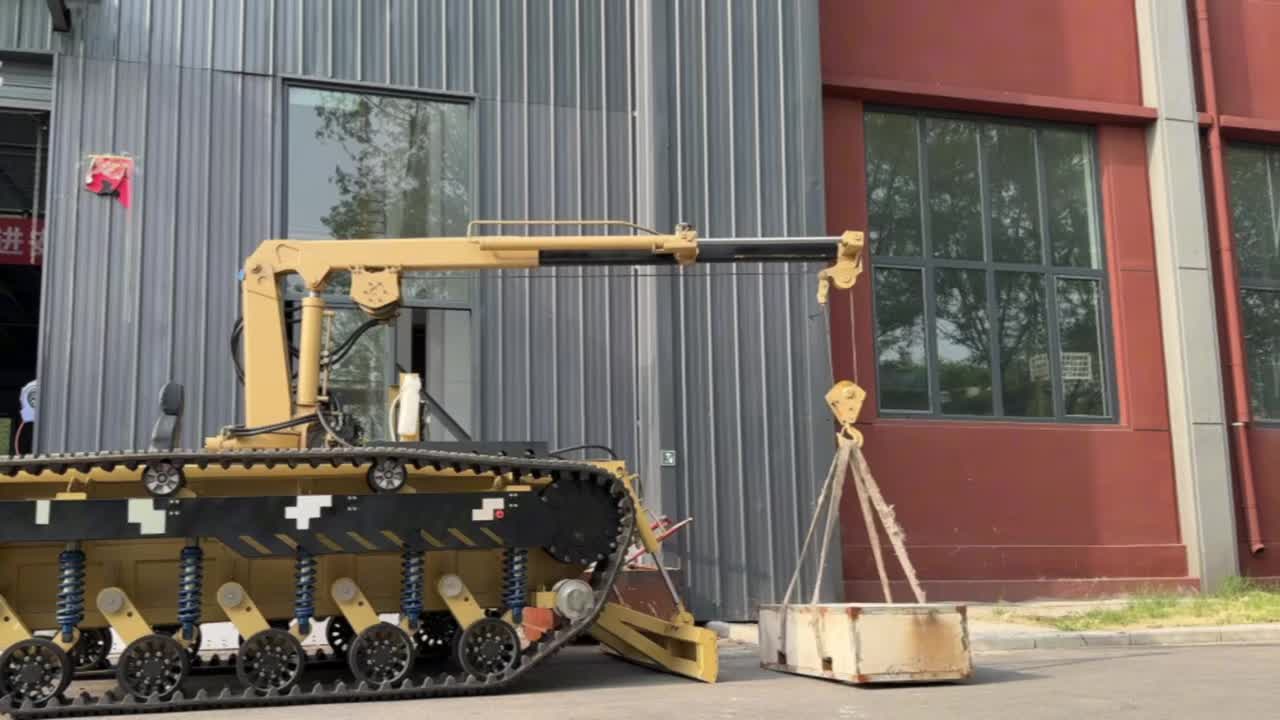

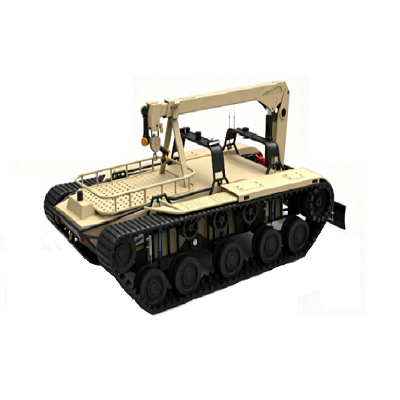

Derivative Rescue UGV

1.Earthquake ruins search & rescue UGV: Equipped with thermal PTZ, life detection radar and mini hydraulic breaker for remote survivor search and rubble clearance in collapsed buildings.

2.Factory & forest fire suppression rescue UGV: Carry high-flow fire water cannon and large water tank for long-distance high-temperature fire site cooling and remote fire fighting.

3.Flood disaster relief transport UGV: Anti-sink wide tracks transport lifeboats, life vests and drainage pumps on muddy flood land to deliver supplies and evacuate victims.

4.Flood disaster relief transport UGV: Anti-sink wide tracks transport lifeboats, life vests and drainage pumps on muddy flood land to deliver supplies and evacuate victims.

5.Comprehensive factory emergency rescue UGV: Integrated demolition, fire suppression, gas detection and transport modules for chemical & heavy industrial plant accident response.
