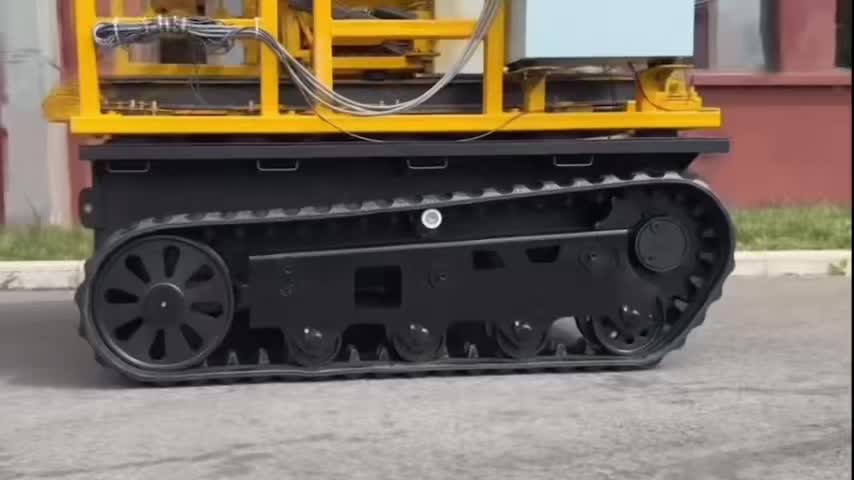

Custom Tracked Undercarriage for Construction Machinery

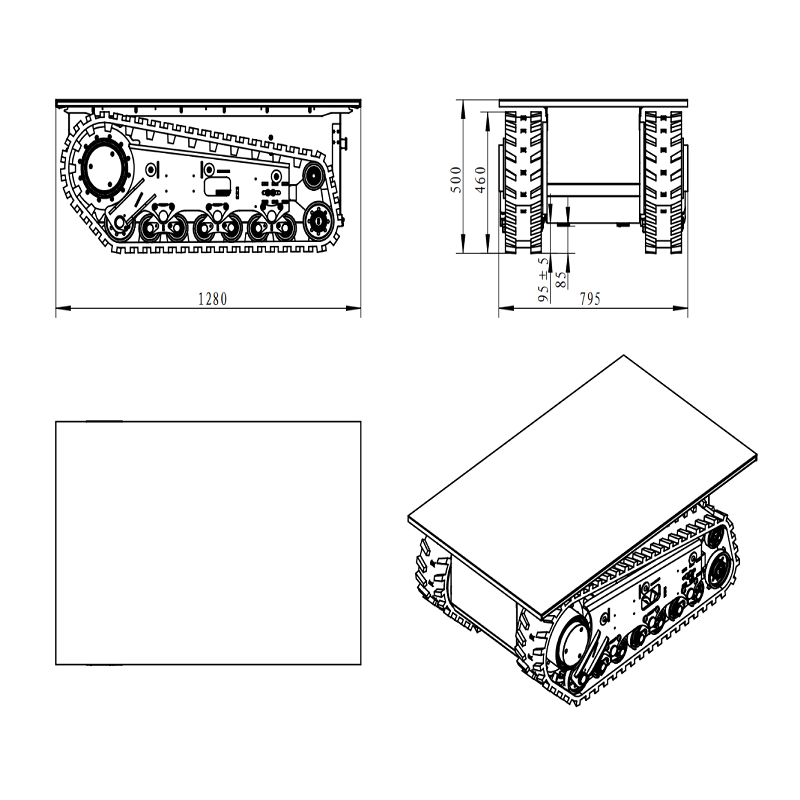

Small WD-K7S parameters

Design dimensions (length, width, and height): 1280 ± 20 * 795 ± 5 * 500 ± 5mm

Rated power: 2 × 4000W

Motor voltage: 48V

Speed: 0-4.2Km/h

Chassis weight: 400KG

Rated load capacity: 550KG

Ground clearance: 95 ± 5mm

Rated obstacle crossing: 235mm

Rated climbing: 30 ° (power meets, depending on ground friction coefficient)

Rated span: 265mm (see center of gravity)

Protection level: IP54 upgradable to IP64

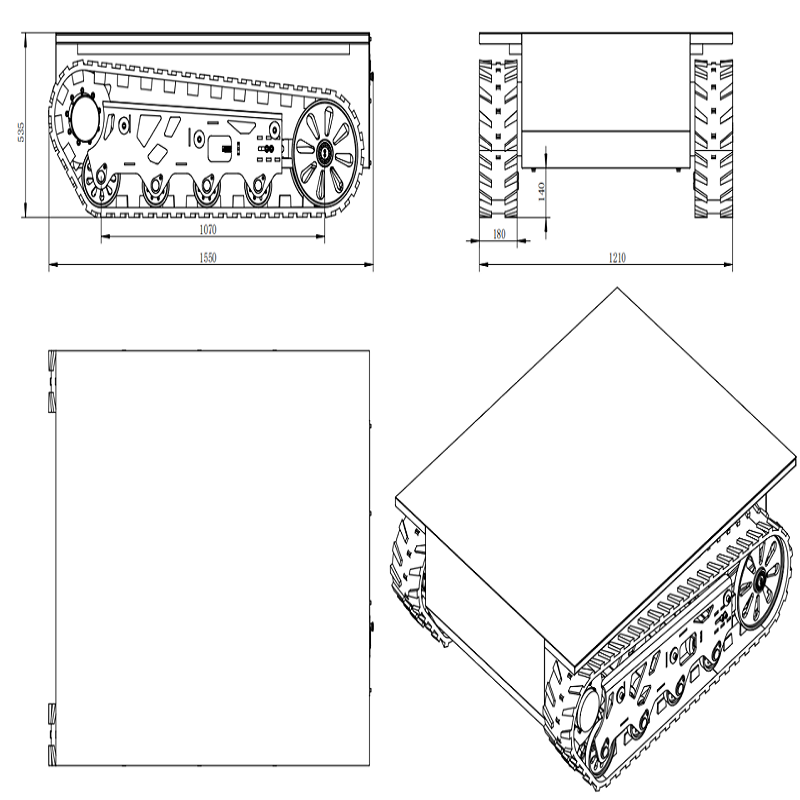

Medium WD-K7M parameters

Design dimensions (length, width, and height): 1550 ± 30 * 1210 ± 5 * 535 ± 5mm

Rated power: 2 × 6000W

Motor voltage: 72V

Speed: 0-6.5Km/h

Chassis weight: 450KG

Rated load capacity: 700KG

Ground clearance: 140 ± 5mm

Rated obstacle crossing: 235mm

Rated climbing: 30 ° (power meets, depending on ground friction coefficient)

Rated span: 335mm (see center of gravity)

Protection level: IP54 upgradable to IP64
