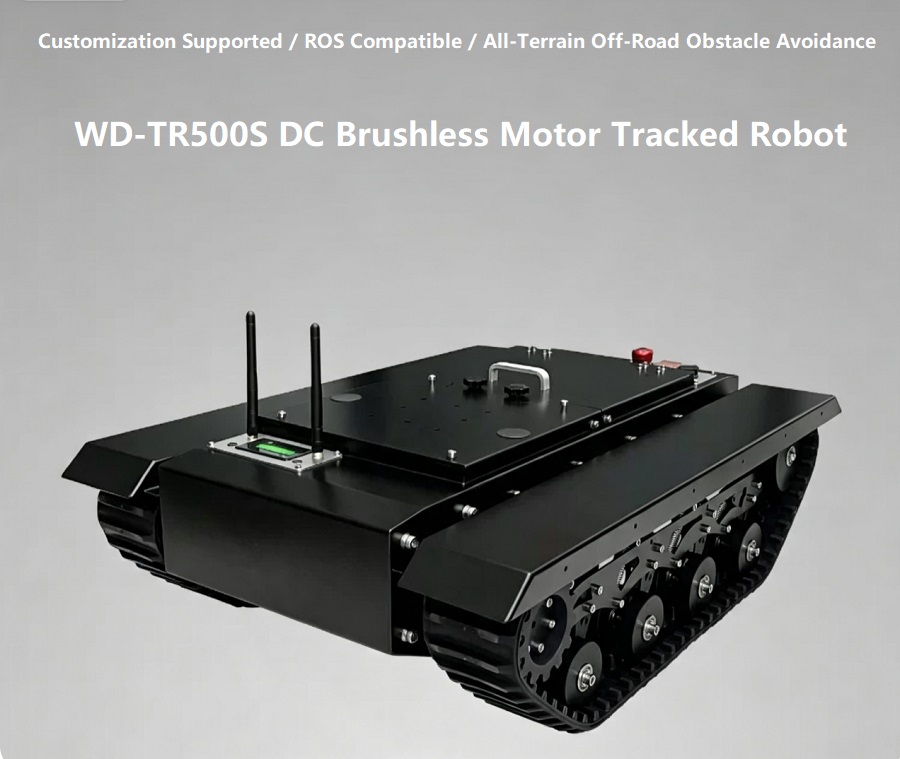

Industrial Rubber Tracked Robot Chassis All-Terrain

Product Overview

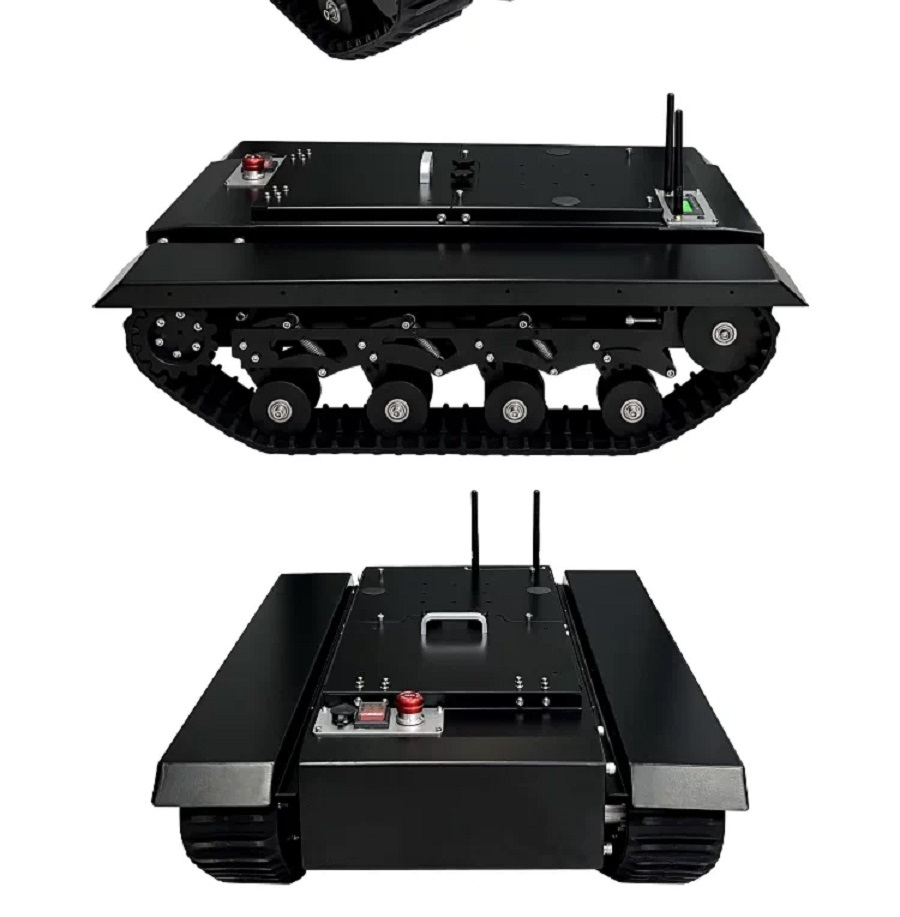

WD-TR500S is a heavy-load industrial-grade rubber tracked mobile robot platform. The vehicle body adopts 1.5mm high-carbon steel with electrostatic baking finish, equipped with 8 sets independent suspension shock absorbers, paired with durable tension-layer rubber tracks.

Powered by dual 300W brushless DC motors with incremental optical encoders, the chassis supports 2.4G remote control out of the box. It reserves CAN bus and serial port communication interfaces, complete with official ROS driver packages, convenient for users to conduct secondary development.

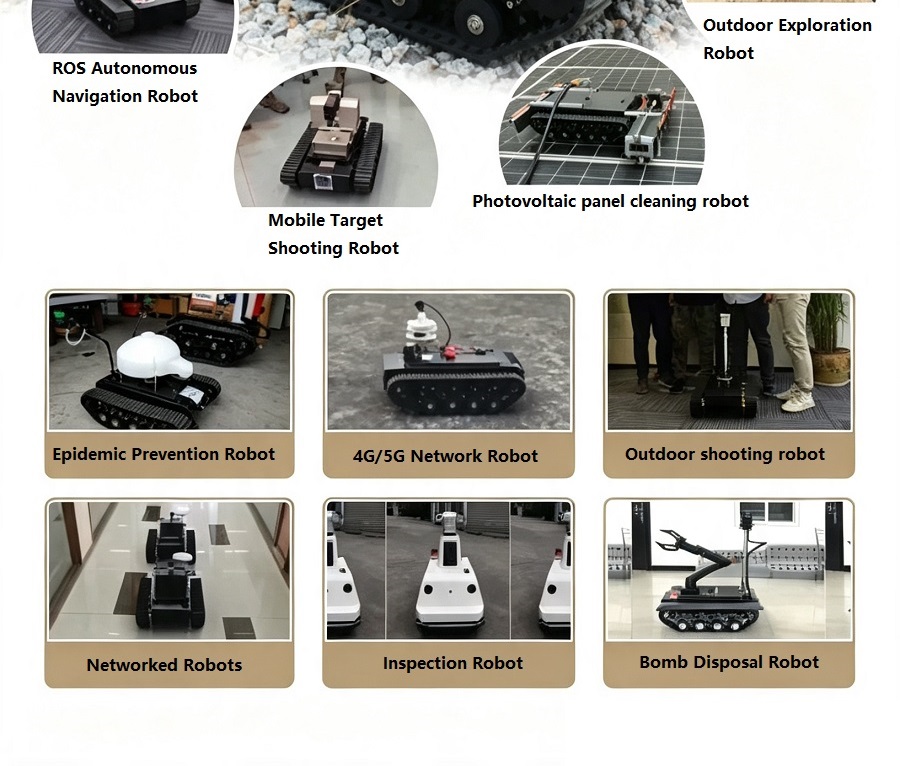

Powerful off-road performance enables stable driving on gravel, lawn, mud and other complex terrain. Widely used for inspection robot, photovoltaic cleaning robot, outdoor exploration, emergency reconnaissance, target shooting robot and bomb disposal robot projects.

Core Product Advantages

1.Heavy-Duty High Carbon Steel Structure

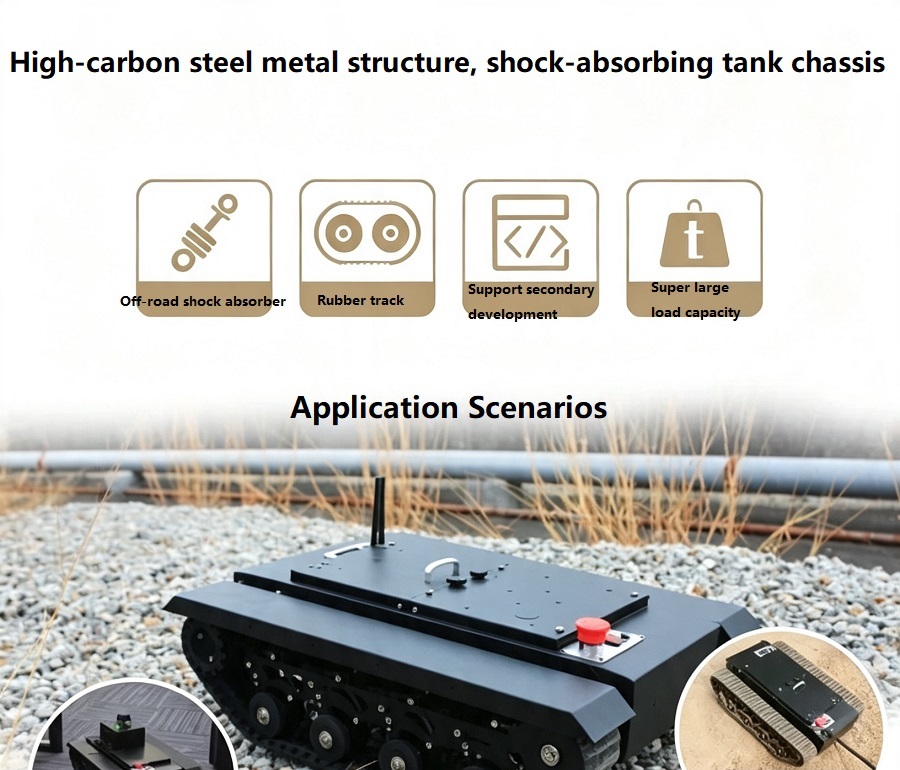

1.5mm thick high-carbon steel body, electrostatic spray anti-corrosion coating, sturdy and durable, suitable for long-term outdoor working environment.

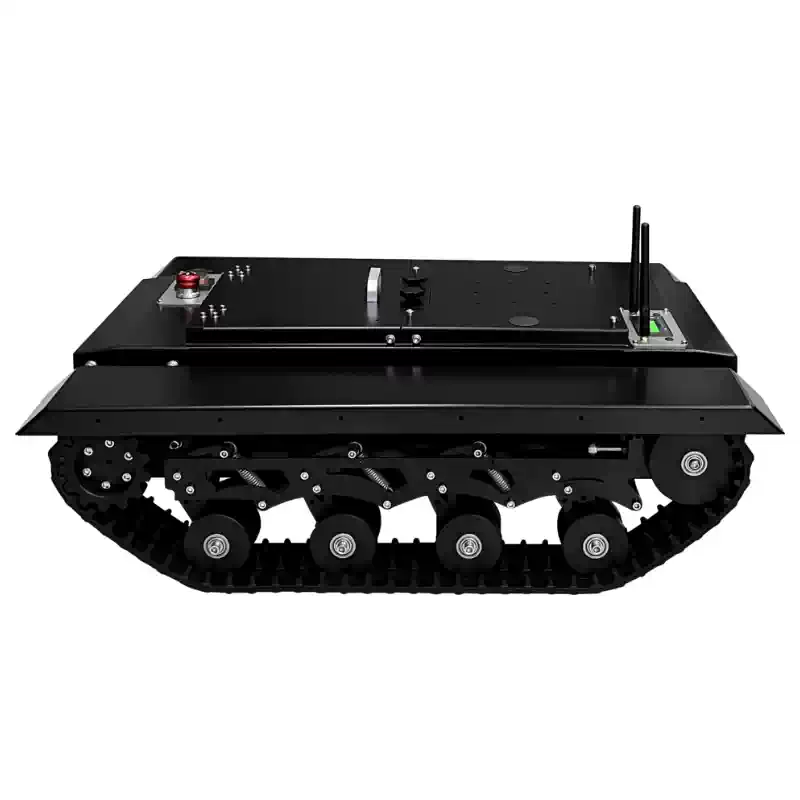

8 groups suspension shock absorber design, effectively buffer bump vibration, guarantee stable operation when crossing obstacles, greatly improve all-terrain trafficability.

3.Brushless Motor + High Precision Encoder

Dual 300W brushless DC motors equipped with 1000-line incremental optical encoders, precise speed control, stable power output, support closed-loop navigation algorithm.

4.Complete Secondary Development Support

Provide serial port & CAN communication protocol, upper computer ROS driver package. Reserved 5V/12V/24V power interfaces for connecting sensors, cameras, robotic arms and other equipment.

5.Excellent All-Terrain Passability

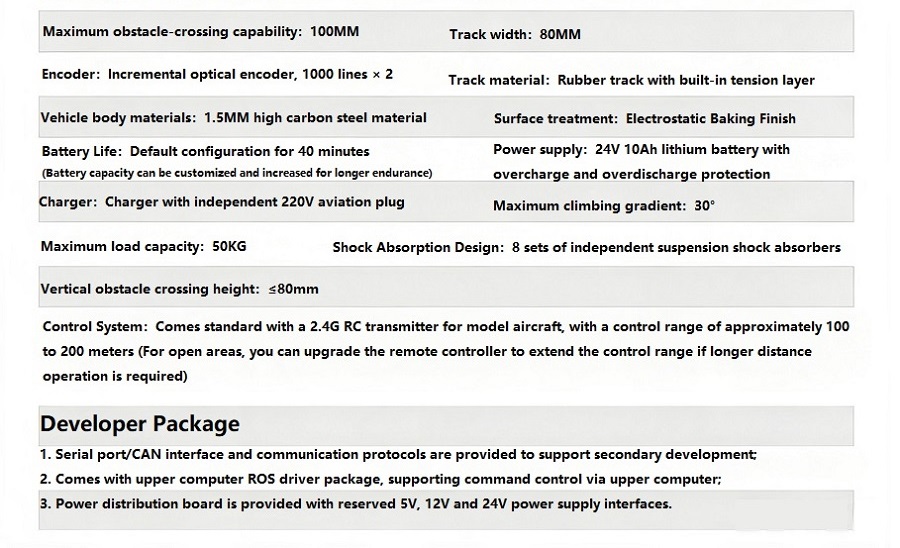

Max climbing gradient 30°, vertical obstacle crossing height ≤80mm. Reinforced rubber track with built-in tension layer, strong grip, wear-resistant for various outdoor terrain.

6.Large Load Capacity & Long Endurance

Maximum load up to 50KG. Standard 24V 10Ah lithium battery with overcharge & over-discharge protection; battery capacity can be customized to extend working hours.

7.Dual Control Options

Standard 2.4GHz remote controller, control range 100-200m in open space. Can be upgraded to long-distance remote control; support upper computer command control.

FAQ

Q1: What is the maximum load of WD-TR500S tracked chassis?

A1: Max load capacity is 50KG. We suggest working load below 40KG for long service life.

Q2: Does this chassis support ROS secondary development?

A2: Yes. We provide complete ROS driver package, CAN & serial communication protocol, reserved 5V/12V/24V power interfaces for sensors, cameras and robotic arms.

Q3: What motor is equipped with WD-TR500S? Does it have encoder?

A3: Dual 300W brushless DC motors with 1000-line incremental optical encoders, support closed-loop control and autonomous navigation.

Q4: What is the battery endurance? Can I customize battery capacity?

A4: Standard 24V 10Ah lithium battery supports around 40 minutes operation. Larger capacity batteries are available for customization to extend working time.

Q5: What terrain can this all-terrain tracked chassis adapt to?

A5: It works on gravel, lawn, mud, concrete road. Max climbing gradient 30°, obstacle crossing height ≤80mm.
