Metal Shock Absorbing Tracked Robot Chassis

Product Overview

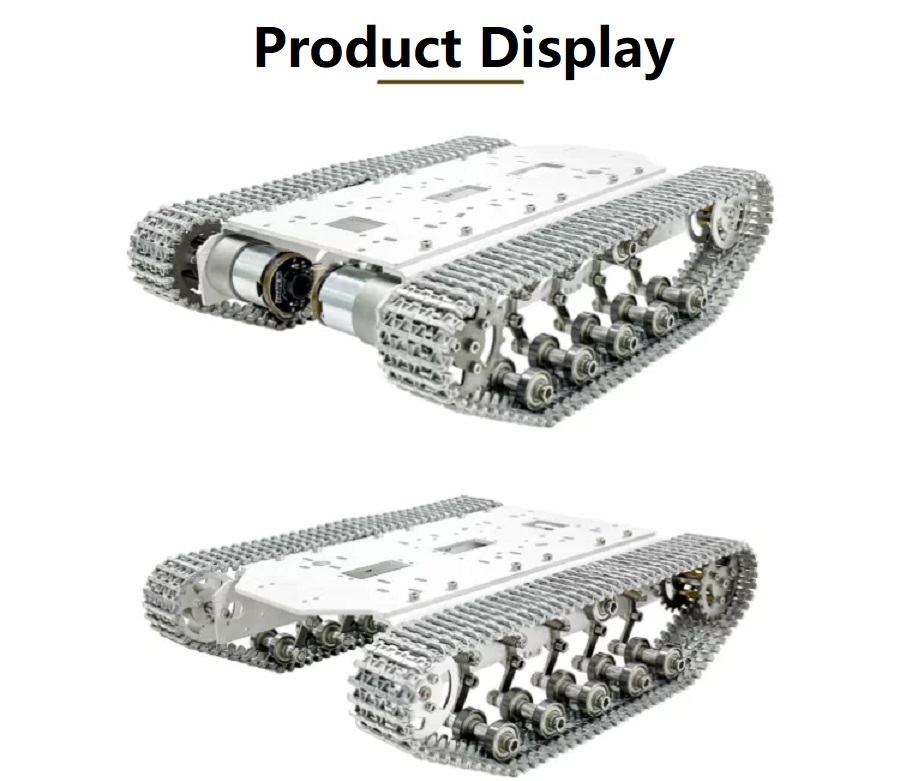

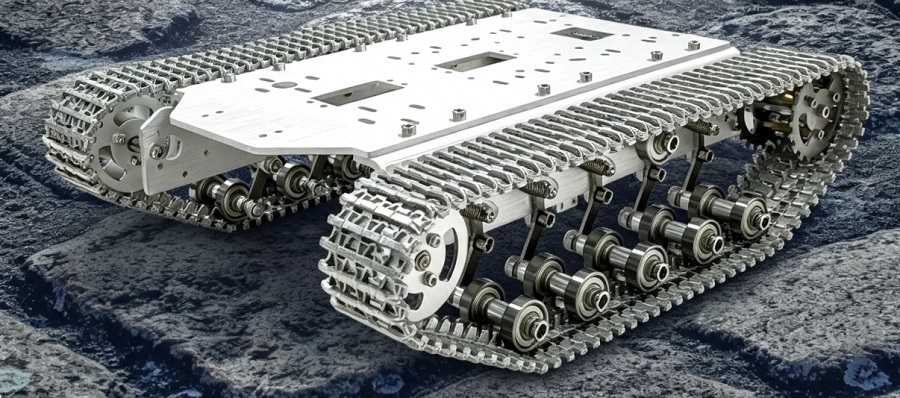

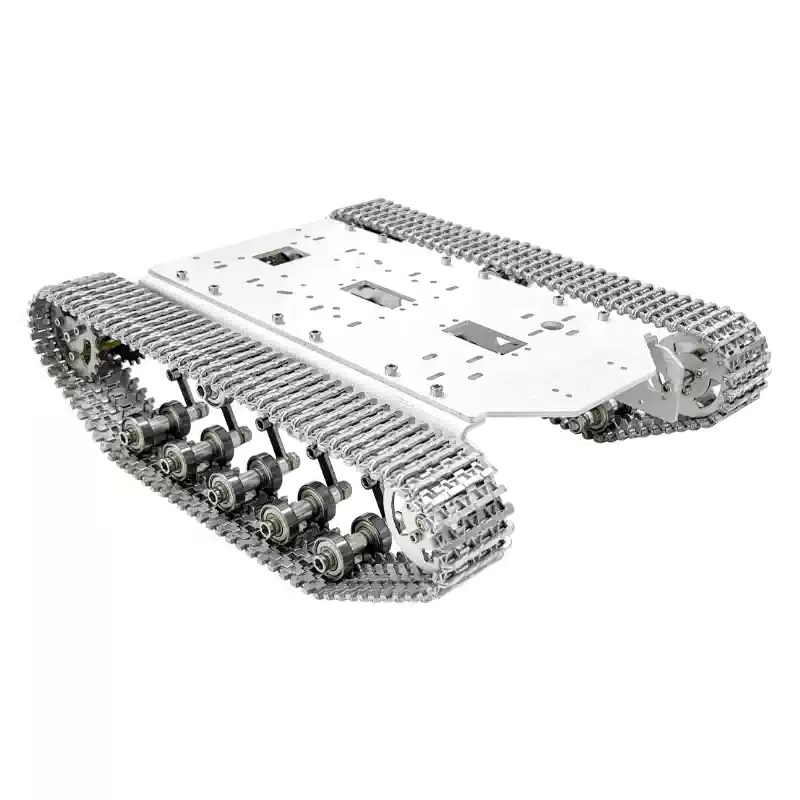

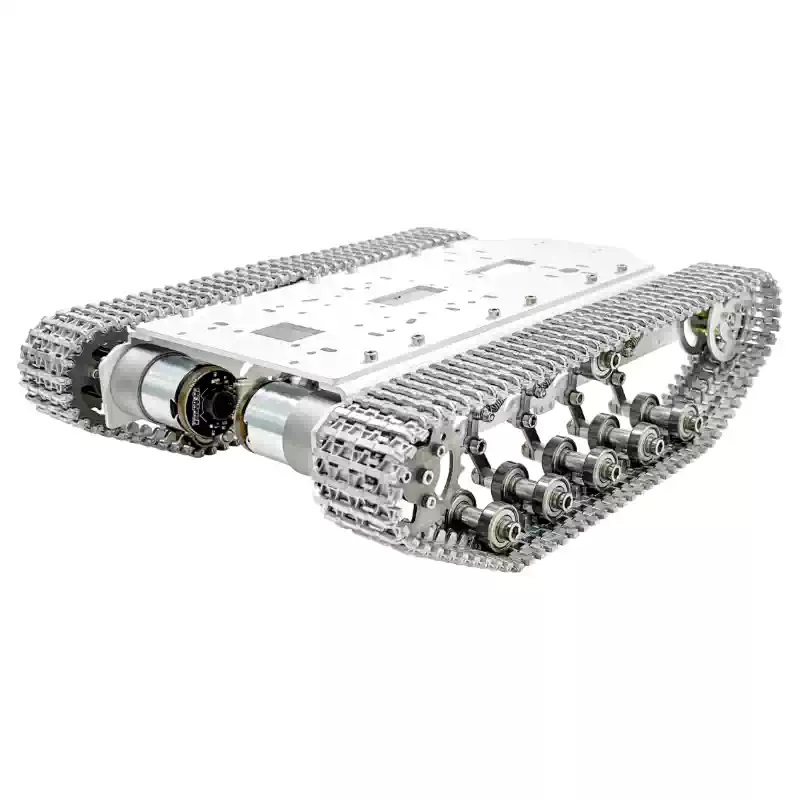

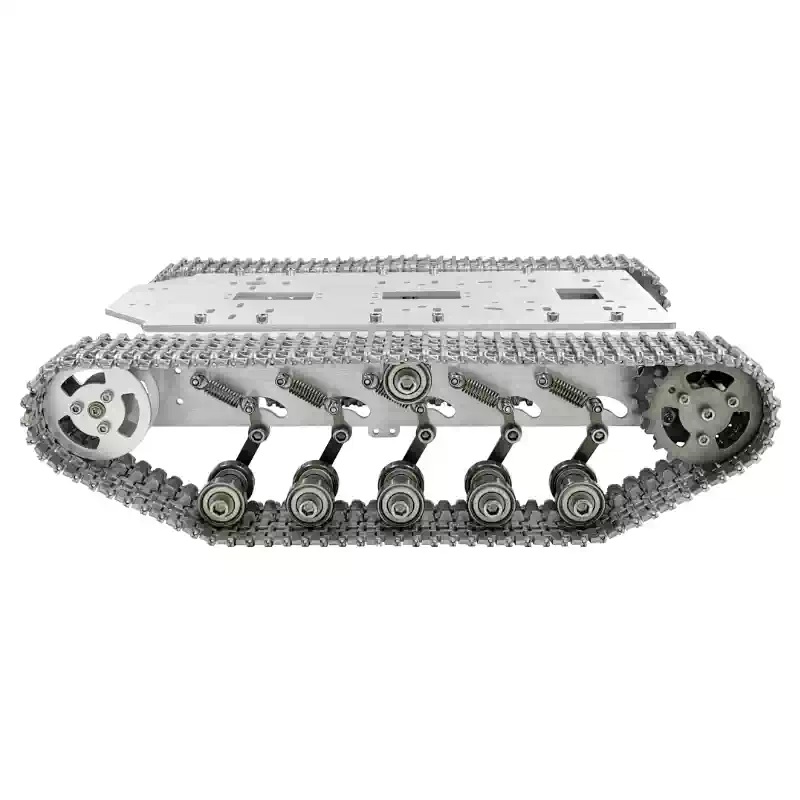

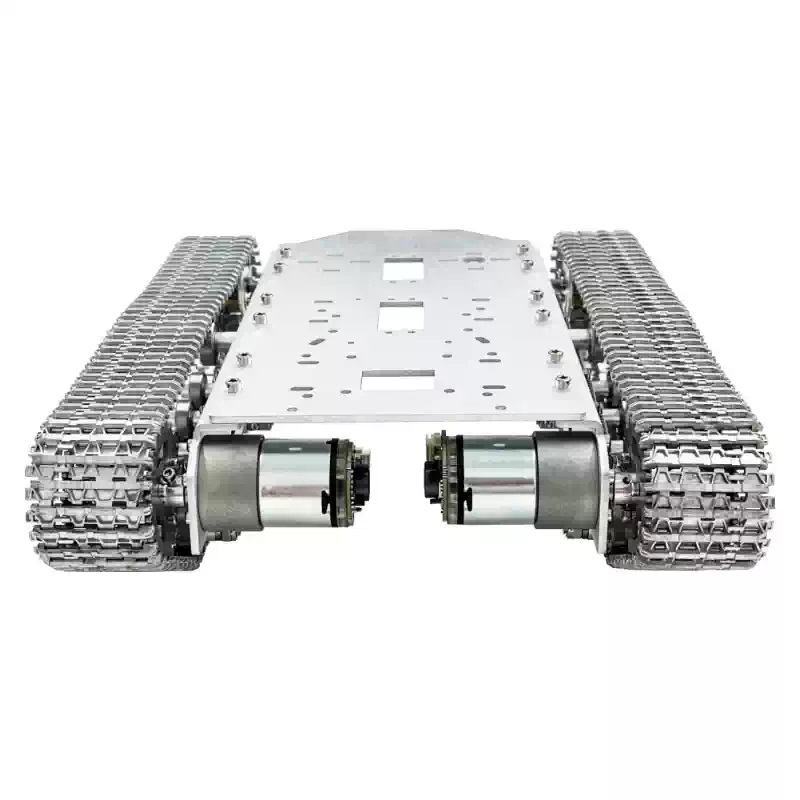

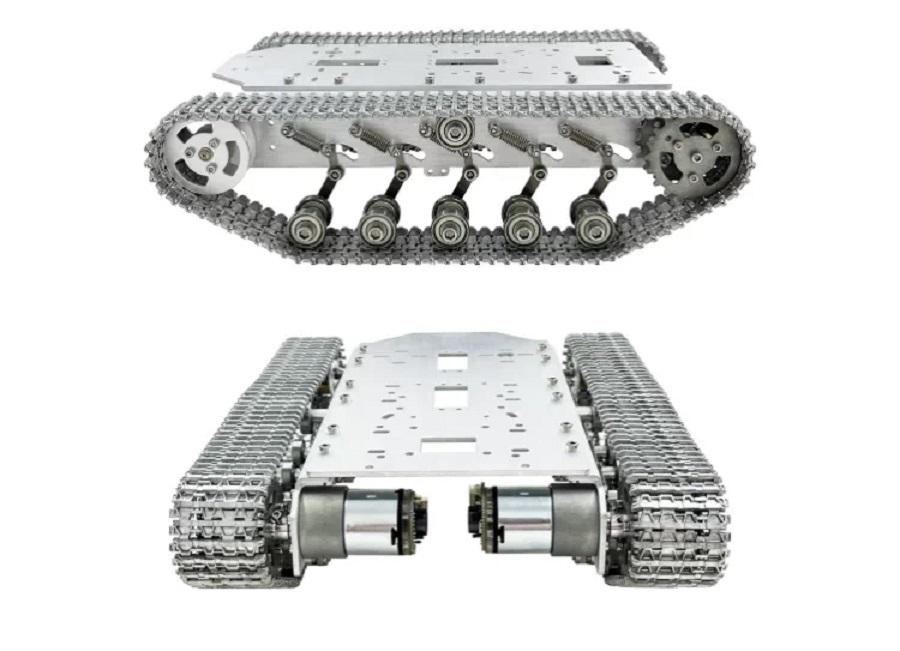

WD-TS200 shock absorbing tracked chassis is a high-performance off-road mobile robot platform equipped with independent spring suspension system. Constructed with aluminum alloy main plate and zinc alloy metal tracks, the chassis effectively reduces vibration on rough ground and realizes reliable obstacle crossing ability.

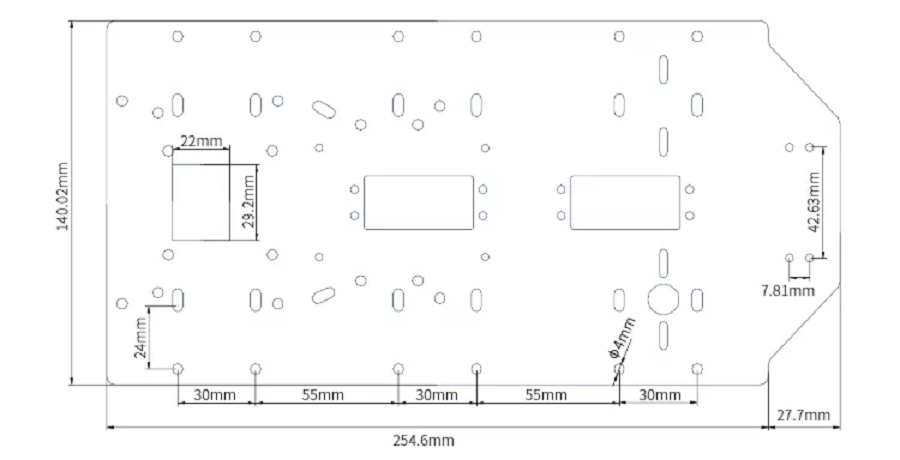

Plenty of reserved mounting holes are available for installing single-board controllers, encoders, cameras, lidar and power modules. It supports remote control and secondary development, widely used in laboratory research, robot competition, inspection robot prototype and RC tank model.

Application Scenarios

University laboratory robotics education & research

DIY remote control tracked tank model

Obstacle avoidance & inspection robot prototype

Robotics competition mobile platform

Small reconnaissance off-road robot development

Notes

1.The top plate is raw metal primary color, minor machining scratches may exist, not product defects.

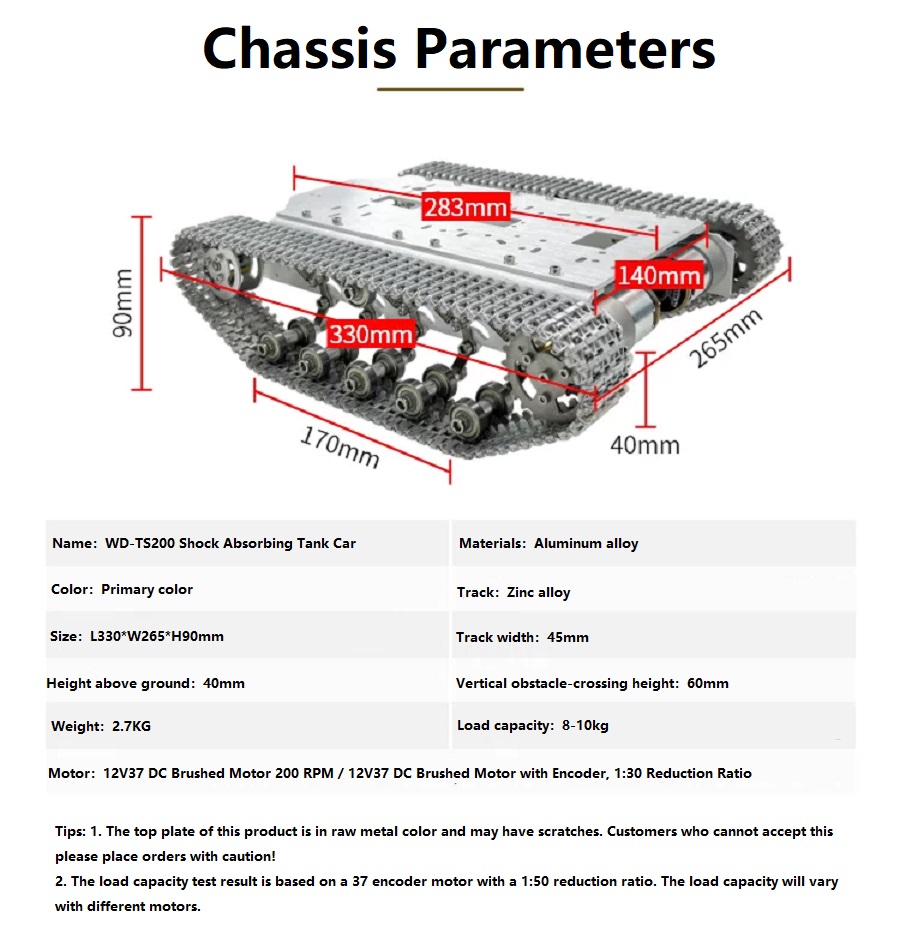

2.The load capacity data is tested with 1:50 encoder motor; bearing capacity varies with different motor configurations.

3.Only chassis and motors are included; remote controller, battery and control board are optional accessories.

4.Custom service for motor parameters and structure is available.

After-sales Support

We provide assembly guidance and technical support for secondary development. Please contact us if you have wiring and programming questions.
