Mini Tracked Robot Chassis

Product Overview

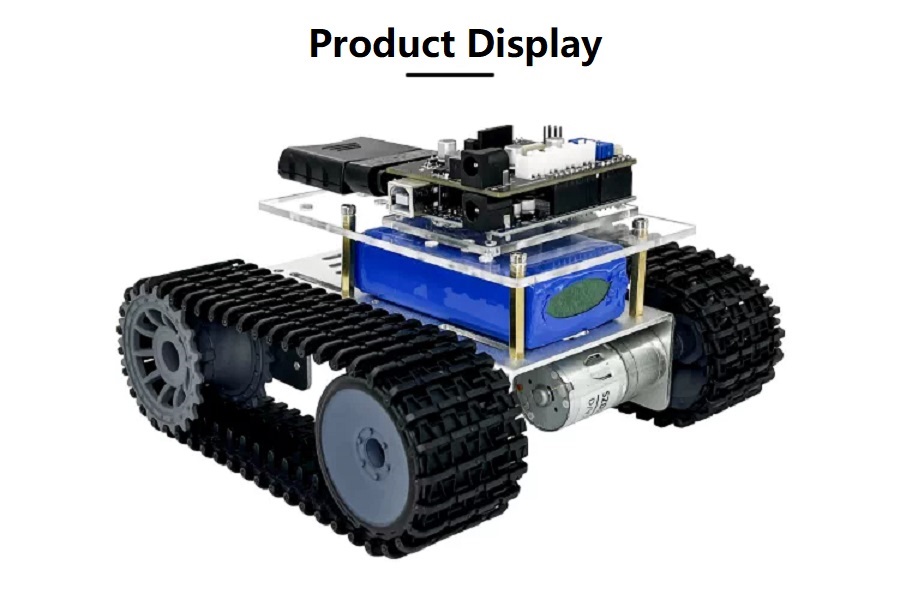

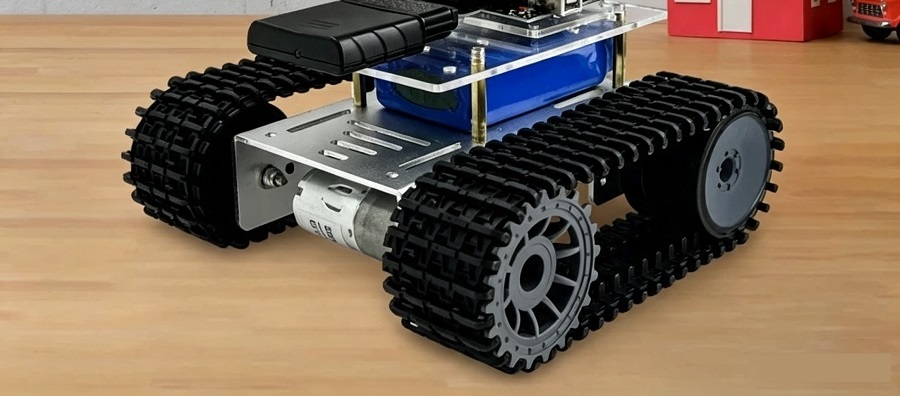

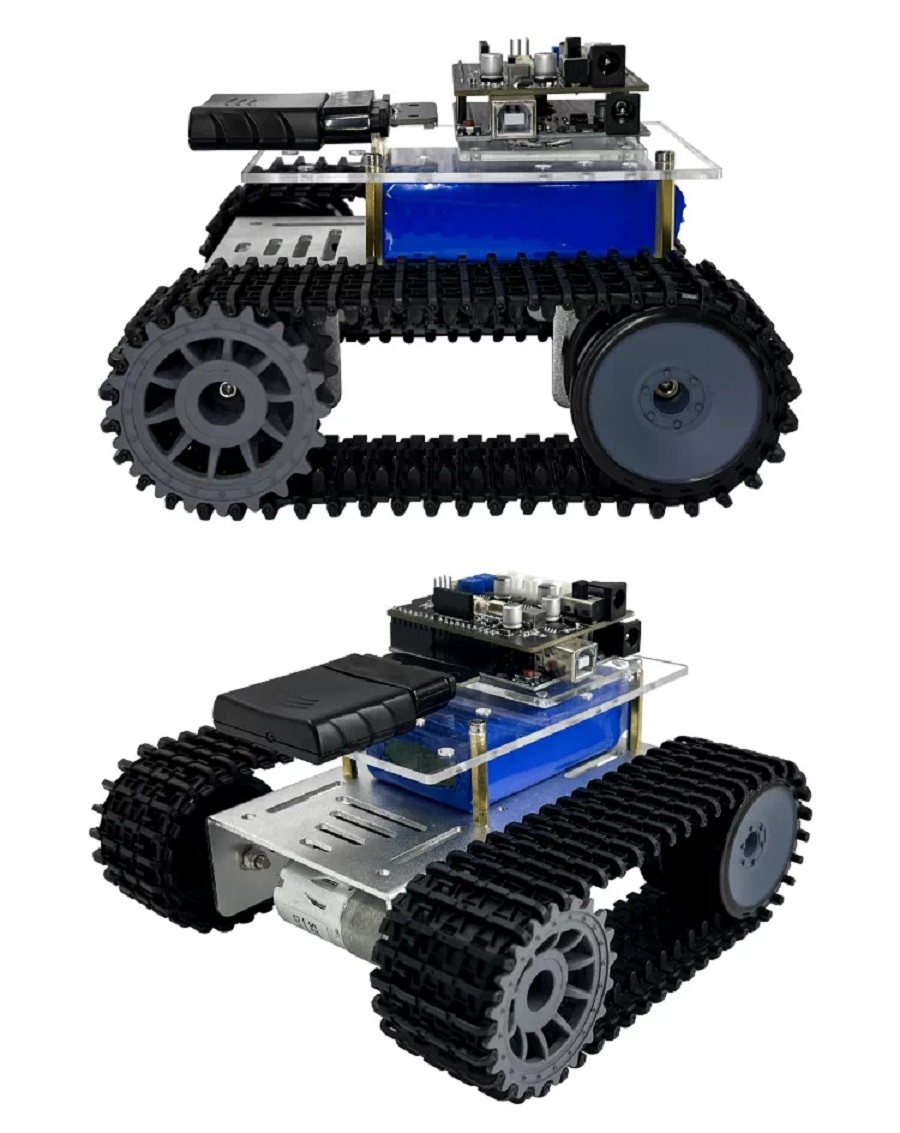

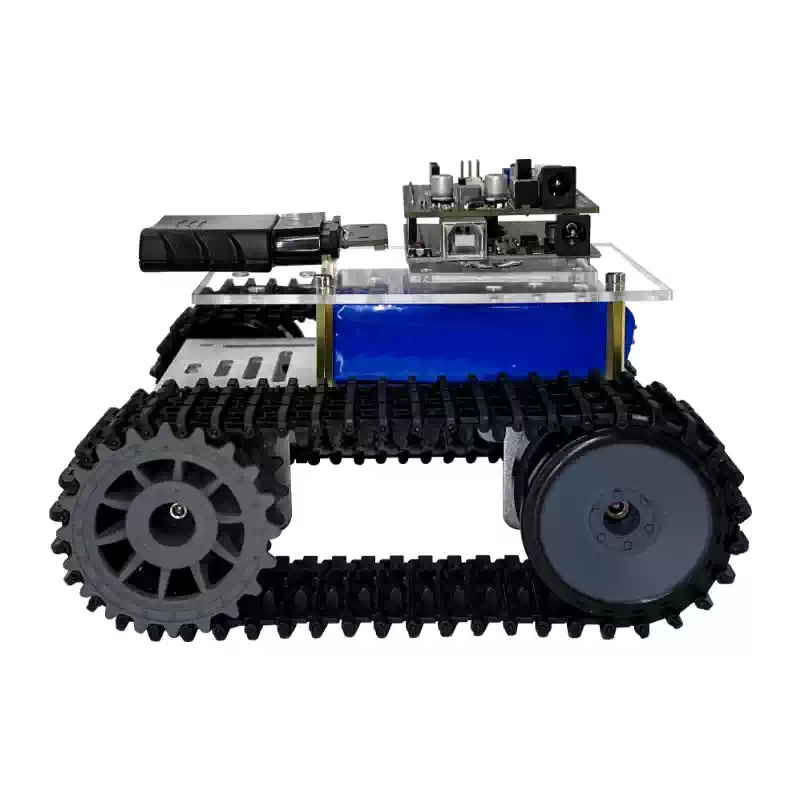

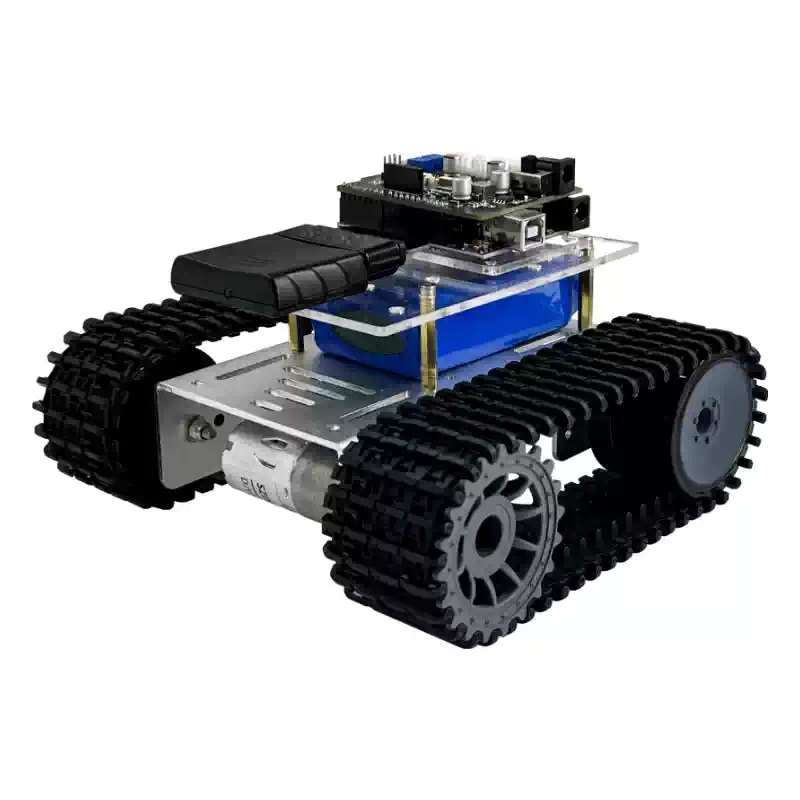

WD-T10P two-wheel-drive tracked chassis is a mini independent suspension mobile robot platform. Built with lightweight aluminum alloy main frame and durable rubber tracks, it adapts to multiple complex terrains.

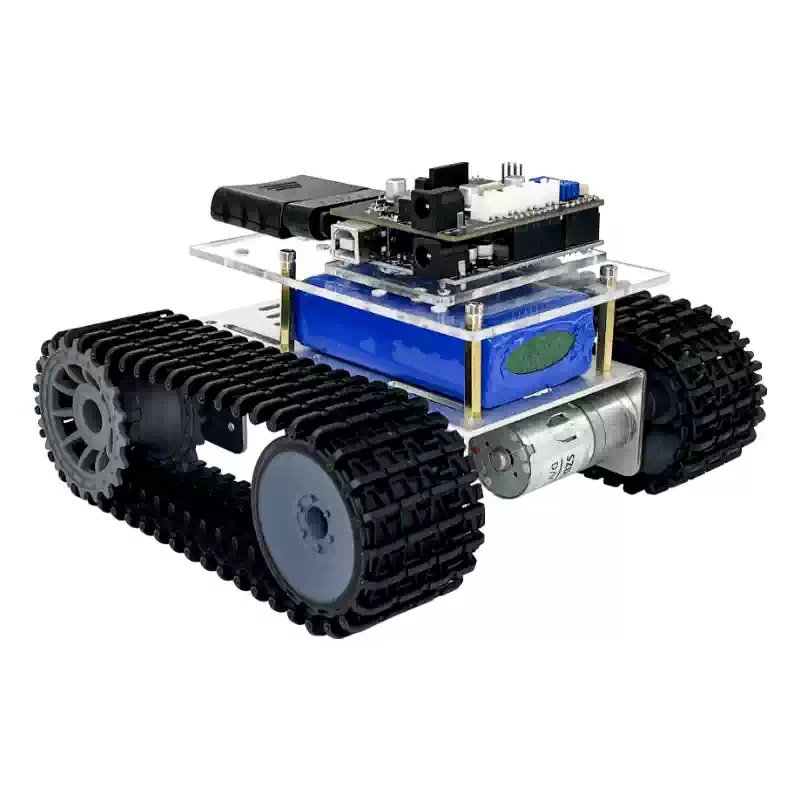

This tank chassis matches UNO R3 control board with complete open-source code. It supports Bluetooth APP and PS2 gamepad control modes. Reserved abundant mounting positions for sensors, lithium batteries and other electronic modules. It is widely adopted for university teaching, robot competition, maker DIY and small inspection robot prototype development.

Core Advantages

1.Independent Suspension Design

Effectively buffer vibration during driving, improve stability on uneven ground.

2.UNO R3 Open Source Support

Complete open source code, convenient for secondary programming development.

3.Dual Control Mode

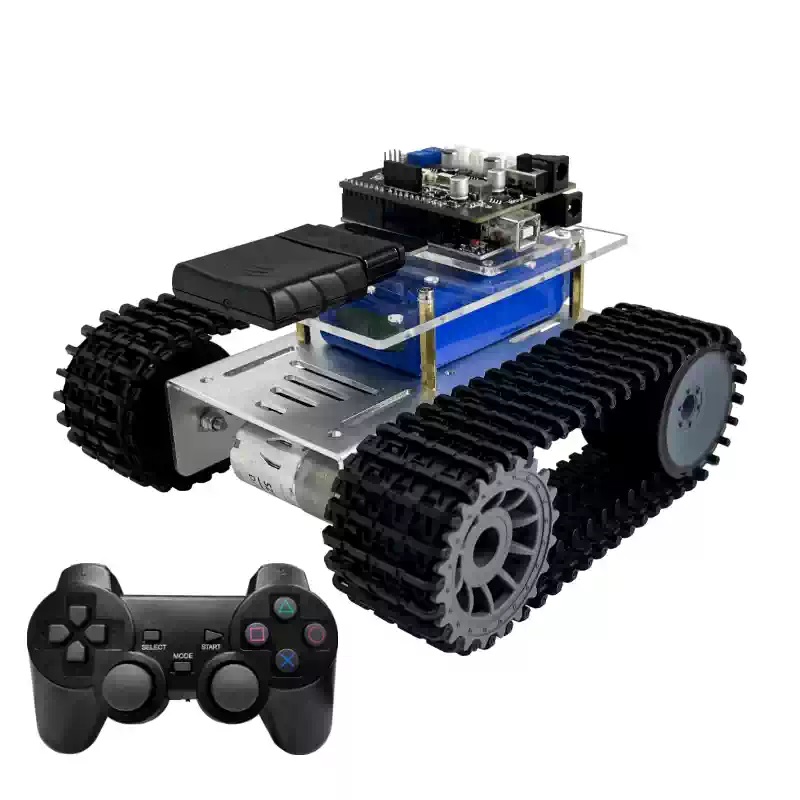

Support PS2 game controller and mobile Bluetooth APP control.

4.Compact Lightweight Structure

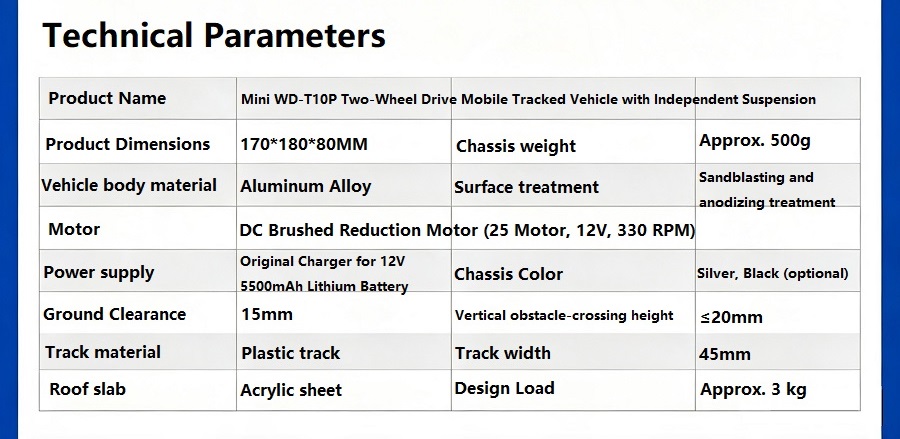

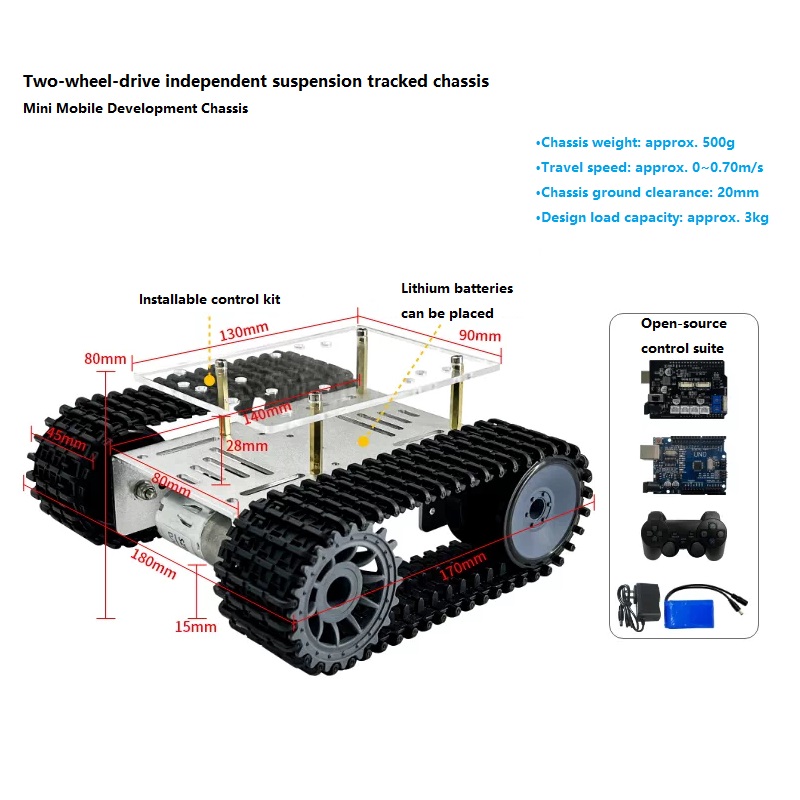

Aluminum alloy sandblasting anodized frame, chassis weight only 500g, design load up to 3kg.

5.Rich Expansion Interfaces

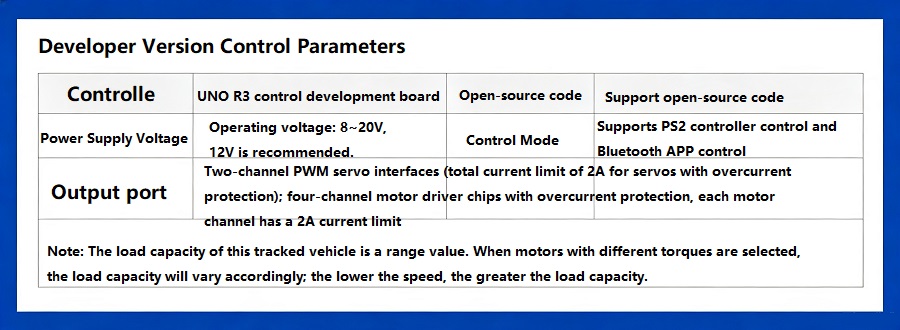

2-channel PWM servo interface, 4-channel motor driver with overcurrent protection.

6.Multiple Terrain Adaptability

Works well on wooden floor, grass, gravel and uneven pavement.

Application Scenarios

1.University & laboratory robot education experiment

2.Maker space DIY tracked tank model

3.Student robotic competition platform

4.Small obstacle avoidance robot prototype

5.Scientific research mobile robot development platform

Notes

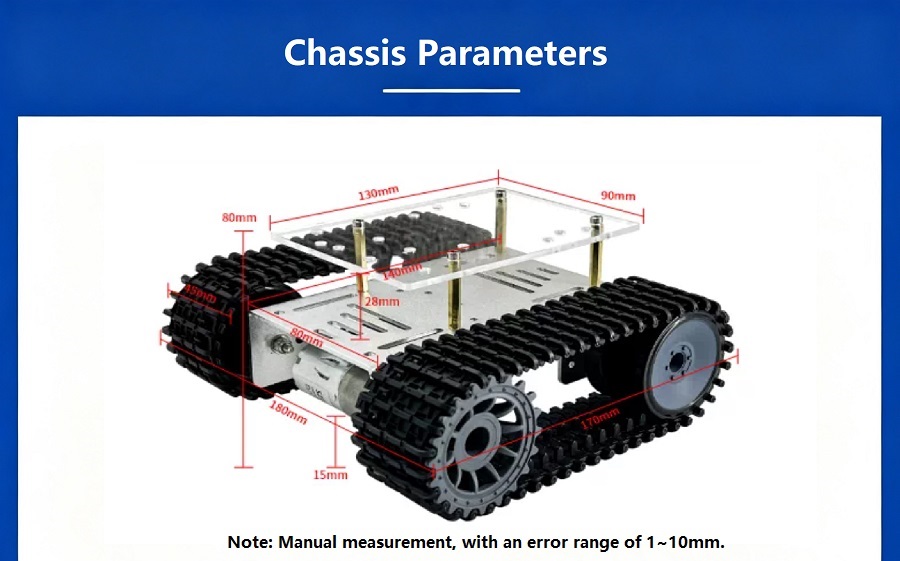

1.Manual dimension measurement, error range 1~10mm.

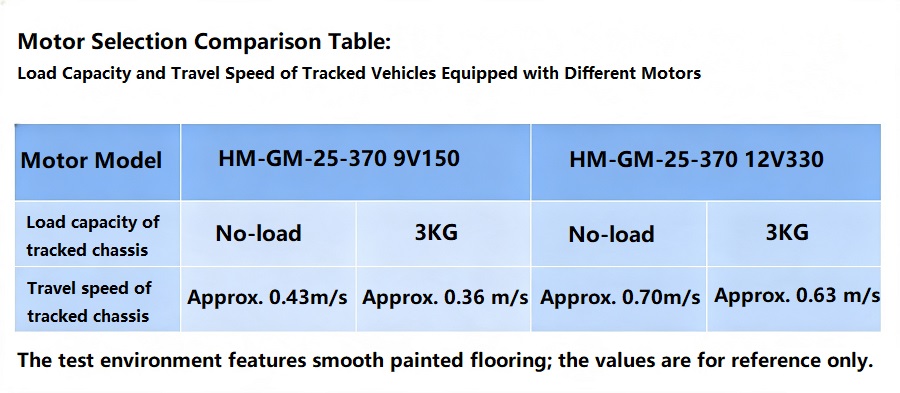

2.Load capacity varies with matched motor configuration; lower speed brings larger load capacity.

3.Two motor options are optional for different speed and load requirements.

4.Chassis only, control suite, battery and remote handle are optional accessories.
