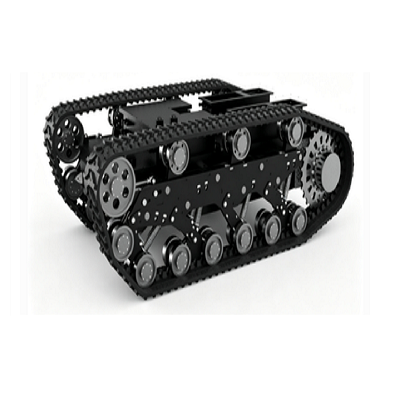

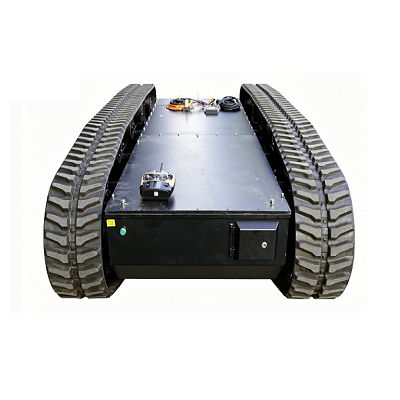

OEM Custom Large Rubber Tracked Robot Chassis

WD-K14 Technical Parameters

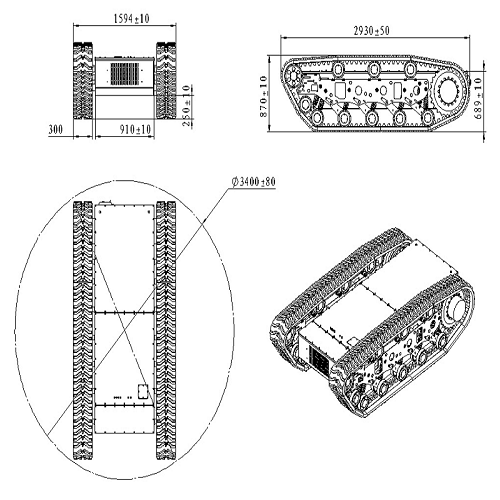

Size: 2930 (±50) *1594 (±10) *870 (±10) mm

Rated Power: 2*30000W

Motor voltage: 320V

Running speed: 0-10Km/h

Chassis weight: 2000KG

Rated Load Capacity: 1000KG

Ground Clearance: 250±10mm

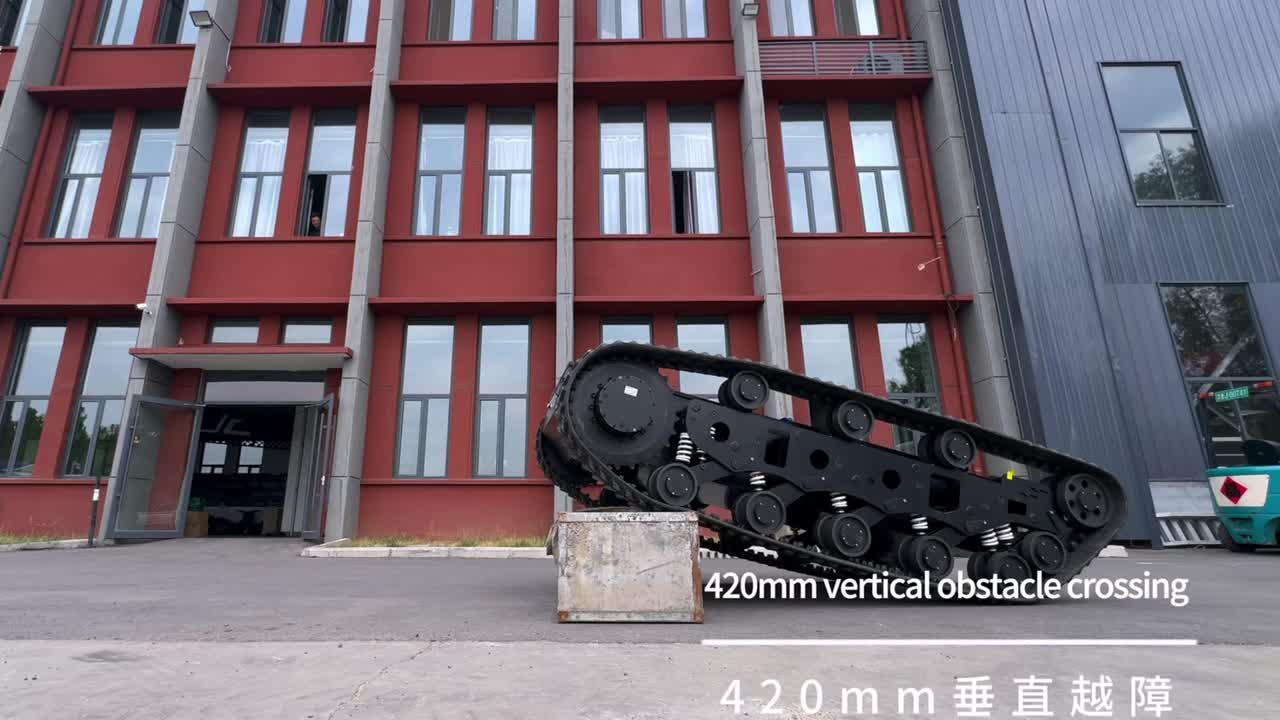

Rated obstacle-crossing capacity: 400mm

Rated Climbing Gradient: 40° (Power is sufficient, subject to ground friction coefficient)

Protection Class: IP64 (Customizable IP68)

Safety Precautions

1.Pre-start inspection:

Check the condition of each component before operation for a satisfactory user experience.

Check for missing or loose nuts and bolts.

Check if the fastening screws of the drive wheels are loose.

Check whether the suspension system works properly.

Check if the antenna is connected effectively.

2.Precautions for Operation:

Do not remotely control the vehicle when the remote controller triggers a low voltage alarm, to prevent the mobile chassis from losing control due to sudden interruption of control signals;

Ensure the receiver antenna is properly connected before powering on and operating the equipment.

Dimming indicator lights on the remote controller indicate low battery power, and new batteries need to be replaced.

The speed of the mobile chassis will decrease when its power battery is low; please charge it in a timely manner.
