China Programmable Crawler Robot Development Base Manufacturer, Supplier, Factory

WD-S1 autonomous inspection robot dog, 12DOF 600Nm ultra-high torque joints, 118kg body, 170kg continuous load, IP66 whole machine & IP67 joint protection. Equipped with dual LiDAR, supports autonomous navigation, full open SDK for secondary development, ideal for industrial inspection and fire rescue.

WD-W3-2200S is a universal integrated Ackermann wheeled robot chassis with front Ackermann steering and rear integral differential axle drive. Equipped with independent front double-wishbone suspension, brushless DC drive system, 24V lithium battery and front disc rear drum brake. IP54 waterproof & explosion-proof solid tires, large internal cabin space, fully customizable configurations. Ideal for inspection, reconnaissance, exploration, scientific research and teaching unmanned robot projects.

WD-K8 heavy-duty complete tracked undercarriage system is our heavy-load crawler platform equipped with heavy-duty wear-resistant tracks for greatly improved load capacity. Adopting Christie independent suspension and optimized 72% ground contact ratio, it delivers ultra-stable driving performance with excellent comfort via hydraulic dampers. The thick flexible track base avoids high-frequency vibration generated by ordinary engineering tracks at high speed, effectively protecting all kinds of onboard equipment. Supported by 12 Christie shock absorbers, dual 285N·M rated torque, max 500kg load, 30 reduction ratio, 30° stair climbing and IP54 protection grade, it serves as a reliable heavy mobile foundation for various industrial special robots.

WD-X2 disinfection robot is a large-capacity ultrasonic fogging sanitizing AMR for commercial & medical large-space sterilization. It features a 16L big tank, 4m wide spray range, suspension shock-absorbing chassis and ≤50dB silent running. With self-developed SLAM rapid mapping, full-automatic timed disinfection, cloud multi-robot dispatch and IoT elevator linkage, it achieves 99.99% sterilization efficiency, ideal for hospital, airport, factory and mall unattended epidemic prevention.

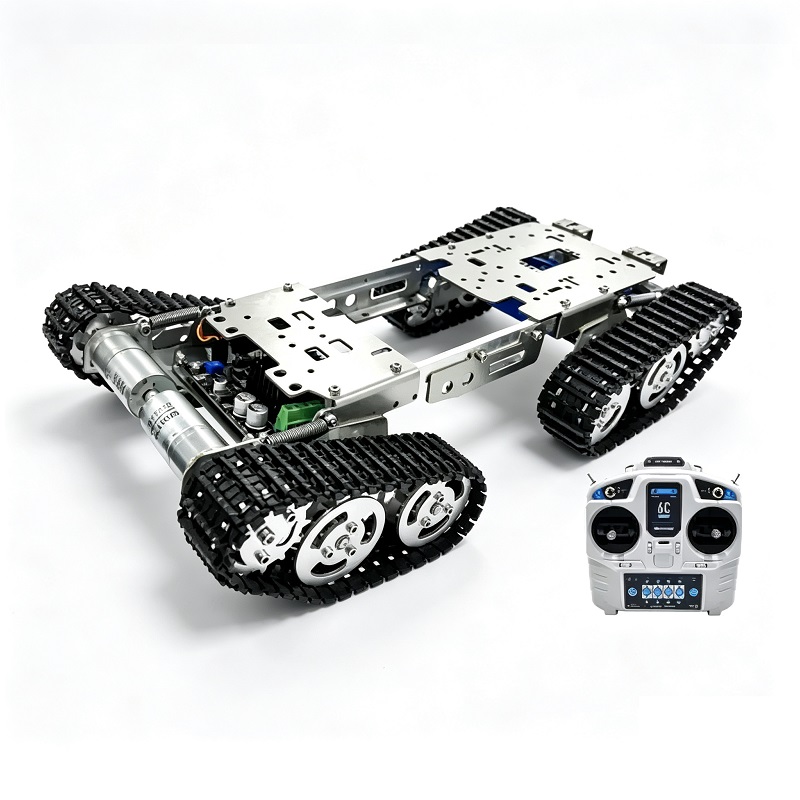

WD-TS100MT is a full-metal shock-absorbing off-road tank chassis with aluminum alloy panel and zinc alloy tracks. Equipped with independent damping system, adjustable width and abundant reserved mounting holes, it supports DIY reconstruction and secondary development for rugged terrain intelligent robots.

WD-FT1500T self-guided tow tractor workshop delivery robot is a heavy-duty dual-purpose autonomous tugger AMR with a maximum traction capacity of 1500kg. It combines adjustable pallet forks and traction hook structure, supporting both pallet stacking transport and serial towing of multiple metal storage cages. Equipped with marker-free laser SLAM navigation, it realizes zero factory ground reconstruction, and freely switches between automatic unmanned navigation mode and manual push mode. With a top speed of 1.5m/s and 24V 60Ah large-capacity lithium battery for over 5 hours of continuous operation, it supports 4G/WiFi multi-robot cluster scheduling, widely used in auto assembly, heavy machinery, large warehouses and new energy factories for heavy pallet and turnover cage batch unmanned logistics transportation.
